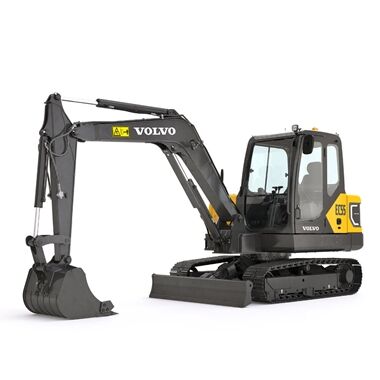

EC55 Electric

Operating weight	5,800 kg
Max. digging depth	4,000 mm
Max. dump height	4,090 mm
Travel speed, low / high	2.6 / 4.3 km/h
Breakout force	40 kN
Tear out force (arm breakout force)	29 kN
Overall width	1,920 mm
Overall length (short/long arm)	5,885 mm
Main hydraulic pump max. flow	144 l/min
Electric motor (peak)	42 kW
Battery voltage	400 V
Battery capacity	67 kWh
Indicative runtime (depending on application)	Up to 4-6
Sound pressure level (LpA) at operator's position	75 dB
Sound power level (LWA) around the machine	92 dB

Features & Benefits

A move to an electric machine can reduce energy-related costs by more than 50%, thanks to the more cost-effective nature of electricity as a power source compared to fuel.

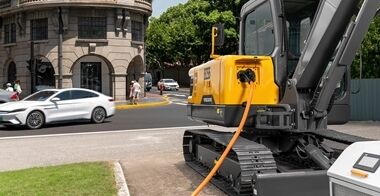

50% Reduction in energy costs

What’s more, the electric motor is around 99% efficient and no energy is used when the machine is not moving and working, saving on energy consumption and wear.

No engine-related consumables such as engine oil, filters and water separator, means 30% less maintenance is required in our electric machines – dramatically reducing downtime and costs.

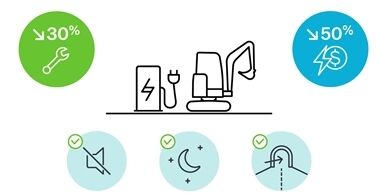

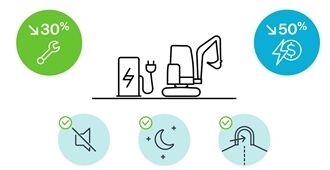

30% Less maintenance

The maintenance-free battery is also designed to last the full life expectancy of the machine and is fully recyclable.

Open up new opportunities for your business with a low noise and zero tailpipe emissions machine.

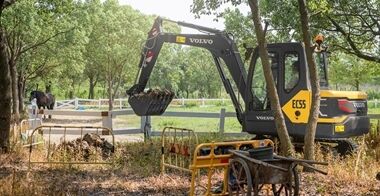

New business horizons

Noise sensitive areas, indoors, low carbon zones, unsociable hours – these are all places an electric machine can work, where a diesel alternative cannot.

From the jobsite, to the local community, to the planet as a whole – an electric machine is a quieter and cleaner choice for everyone.

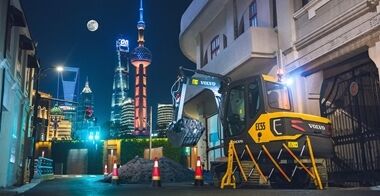

Building a more sustainable world

Operators will experience a new level of comfort due to the significant reduction in noise, vibration and heat, as well as the complete absence of exhaust fumes. The immediate torque also results in more responsive hydraulics for further operator comfort and productivity. What’s more, a low noise jobsite supports clear and easy communication for improved teamwork, collaboration and safety on site.

The EC55 Electric can be fully charged during a lunch break. Choose from a range of charging solutions depending on your operational requirements.

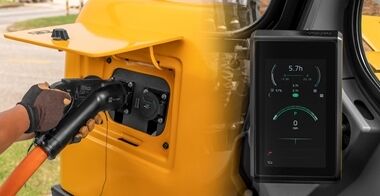

Plug and play charging solutions

Volvo Electric machines come with an on-board charger and the necessary charging cable, plug and adapters to charge from a wall socket or wallbox. A range of fast off-board chargers are available for both indoor and outdoor use, and provide the ability to fully charge the machine during a lunch break. To help you make the right decisions for your operation, we can help you calculate operating time and the optimum charging solution based on your requirements.

PSR is the new generation of telematics hardware, bringing you brand-new and upgraded connected services.

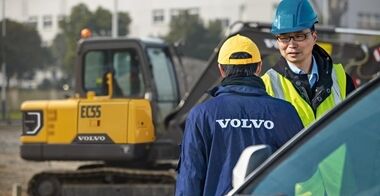

Easy machine monitoring

Manage your fleet more efficiently and maximize productivity via real time tracking, full machine running status, geo/time fence management, machine utilization reports and maintenance alerts and messages – all accessed through PULSE or the Volvo Construction Equipment app. With Volvo ActiveCare you can leave it to Volvo to keep track of your machines – our Volvo Uptime Center will provide 24/7 machine monitoring, supplying weekly reports and notifying you should preventive maintenance action be required.

A Cleaner Choice, A Smart Investment

Technical specifications for EC55 Electric
