Operating weight | 1,790 - 1,870 kg |
---|---|
Maximum digging depth (short/long arm) | 2,528 - 2,727 mm |
Maximum dump height (short/long arm) | 2,444 - 2,588 mm |
Travel speed, low / high | 1.8 / 3.5 km/h |
Breakout force | 12.9 kN |
Tear out force (arm breakout force) (short/long arm) | 7.95 - 6.95 kN |
Overall width | 995 - 1,352 mm |
Overall length (short/long arm) | 3,431 - 3,309 mm |
Main hydraulic pump max. flow | 34 l/min |
Electric motor (peak) | 18 kW |
Battery voltage | 48 V |
Battery capacity | 16 kWh |
Indicative runtime (depending on application) | Up to 5 hours |
On board charging time 230 VAC 16A | ~ 5 h |
Off board charging time 400 VAC 32A | ~ 1 h |

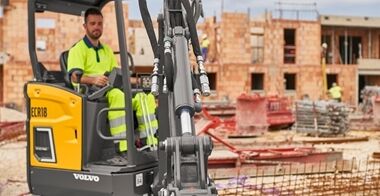

Step into the world-class operator environment for which Volvo is renowned, including large entrance, superior visibility and comfort levels, further enhanced thanks to a dramatic reduction in noise, vibration and heat, and no exhaust fumes. This all contributes towards a quieter and cleaner jobsite, improving communication and working conditions for all personnel.

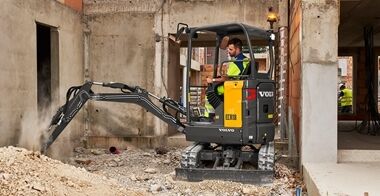

The ECR18 Electric boasts both low noise and zero-tailpipe emissions, creating new opportunities for your business. Operate in noise sensitive areas and out of standard hours, as well as on low-carbon projects and indoors, without the need for costly fume extraction systems or being restricted by operator time limits.

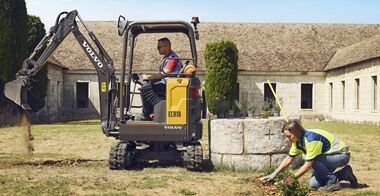

The ultra-short tail radius of the ECR18 Electric, along with the frame corner, swing post and cylinder which stay safely within the tracks’ width, provide maximum versatility, visibility and reduced risk of machine damage when digging alongside obstacles. Protection has been considered throughout every detail of the design with a unique high-profile counterweight made from strong cast iron which wraps around the rear of the machine, combined with all-around steel panels and hoses routed inside the boom.

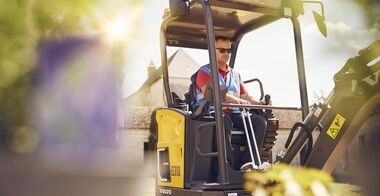

The Volvo ECR18 Electric provides everything you would expect from its diesel counterpart, including a spacious and uncluttered cab, ergonomic and intuitive controls, unrivalled combined movements as well as best-in-class stability. What’s more, with the electric concept operators benefit from low noise and vibration, more responsive hydraulics due to the immediate torque, and a range of customizable settings to adapt machine behavior according to the type of work and operator preference. Auxiliary hydraulic flows and joystick responsiveness are easily adjusted from the user-friendly interface.

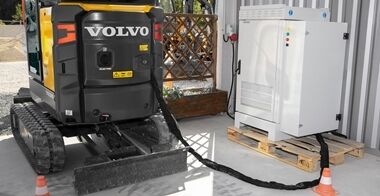

The ECR18 Electric comes with an on-board charger and the necessary charging cable, plug and adapters to charge from a wall socket or wallbox. A range of fast off-board chargers are available for both indoor and outdoor use, capable of fully charging the machine during a lunch break. To help you make the right decisions for your operation, we can help you calculate operating time and the optimum charging solution based on your requirements.
