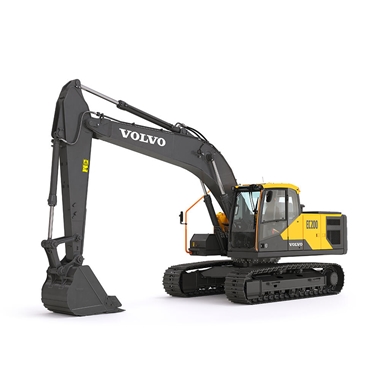

EC200 CN4 | Excavators | Overview | Volvo Construction Equipment

Operating weight	20,500 kg
Gross power	115 kW
...at engine speed	2,000 rpm
Bucket capacity	0.28 - 1.1 m³
Lifting capacity, along undercarriage	8,000 kg
Max. digging reach	9,930 mm
Max. digging depth	6,744 mm
Breakout force, SAE J1179 (Normal)	123 kN
Tear out force, SAE J1179 (Normal)	89 kN
Overall width	2,800 mm
Tail swing radius	2,850 mm

Features & Benefits

The China IV compliant Volvo D4 engine has been tried and tested throughout the world since 2014, delivering outstanding levels of quality, reliability, and efficiency.

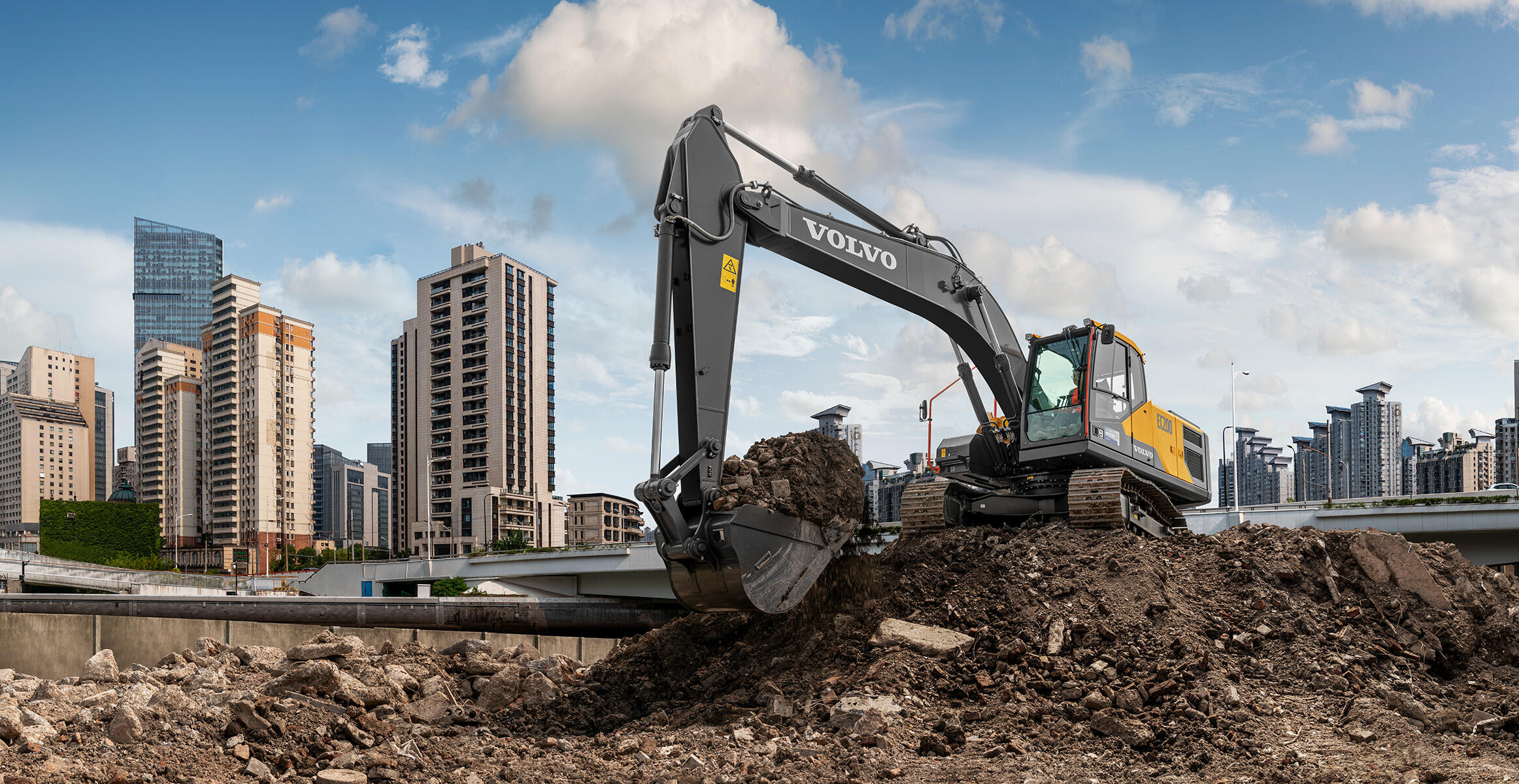

Proven engine technology

The China IV compliant Volvo D4 engine has been tried and tested throughout the world since 2014. With technology that has been tested, proven, and enhanced for almost 10 years, this is an engine which customers can rest assured will deliver outstanding levels of quality, reliability, and efficiency.

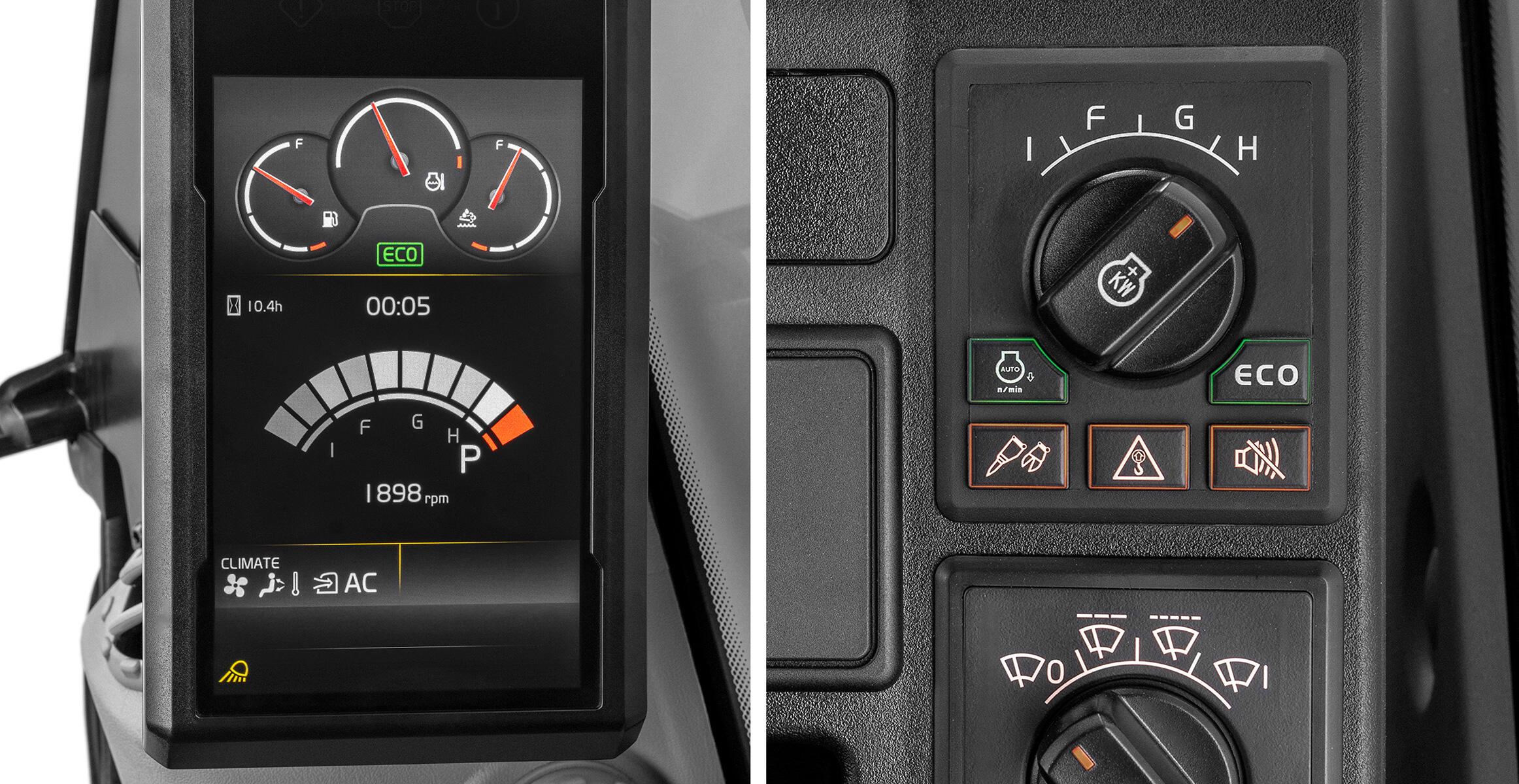

A fuel efficient mode

Unique Volvo technology incorporates work modes within the throttle control, for optimum performance. When the operator selects a work mode – I (Idle), F (Fine), G (General), H (Heavy) and P (Power) – the rpm is already set for maximum efficiency. ECO mode can improve fuel efficiency by a further 5%, without any loss of performance in most operating conditions.

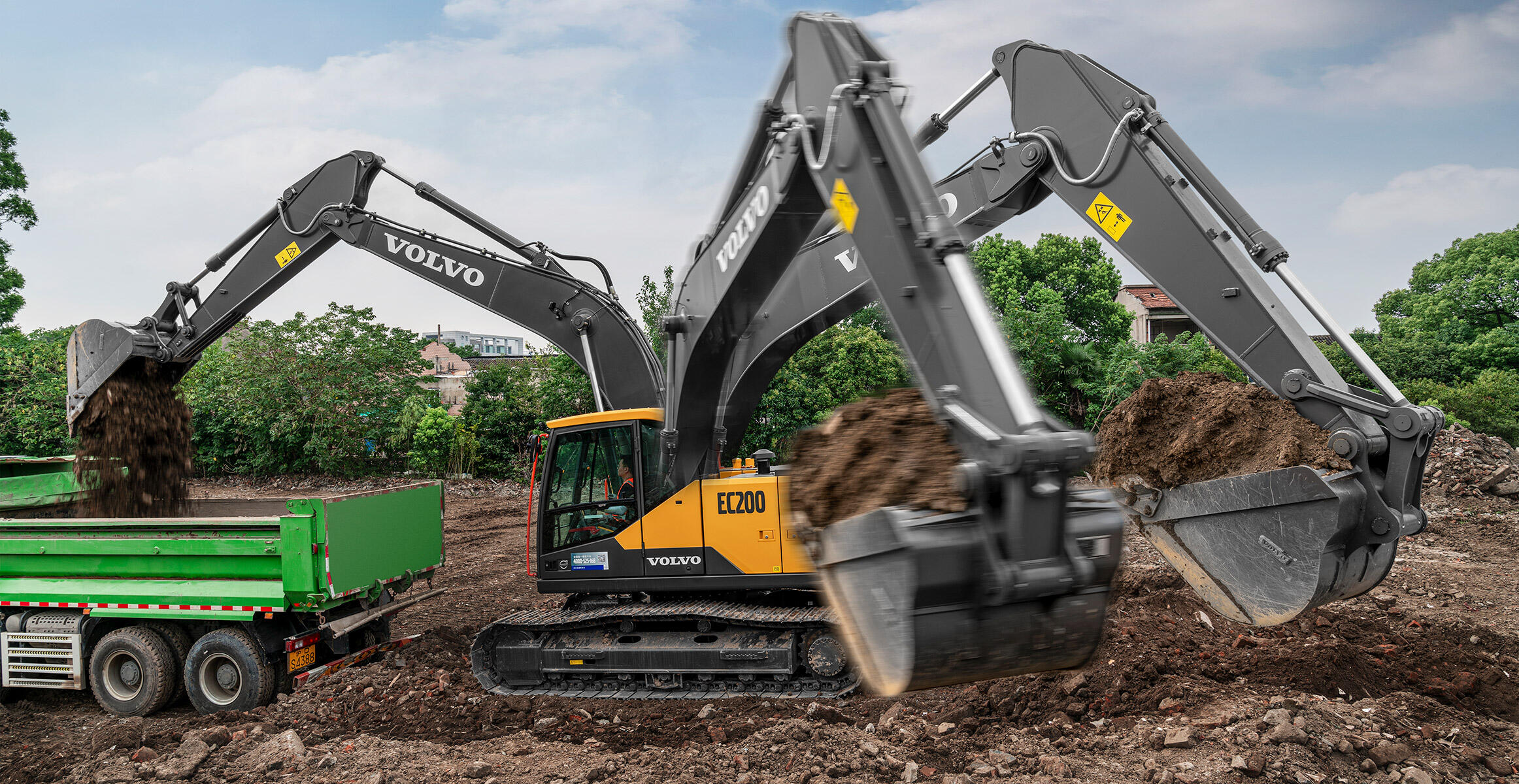

More control, less fuel

The hydraulics system, combined with the electronic control system and advanced ECO mode, has been optimized to work in harmony to match the engine power, reduce power loss and improve controllability and response time. A boom swing priority valve boosts controllability further, making the EC200 the perfect choice for truck loading.

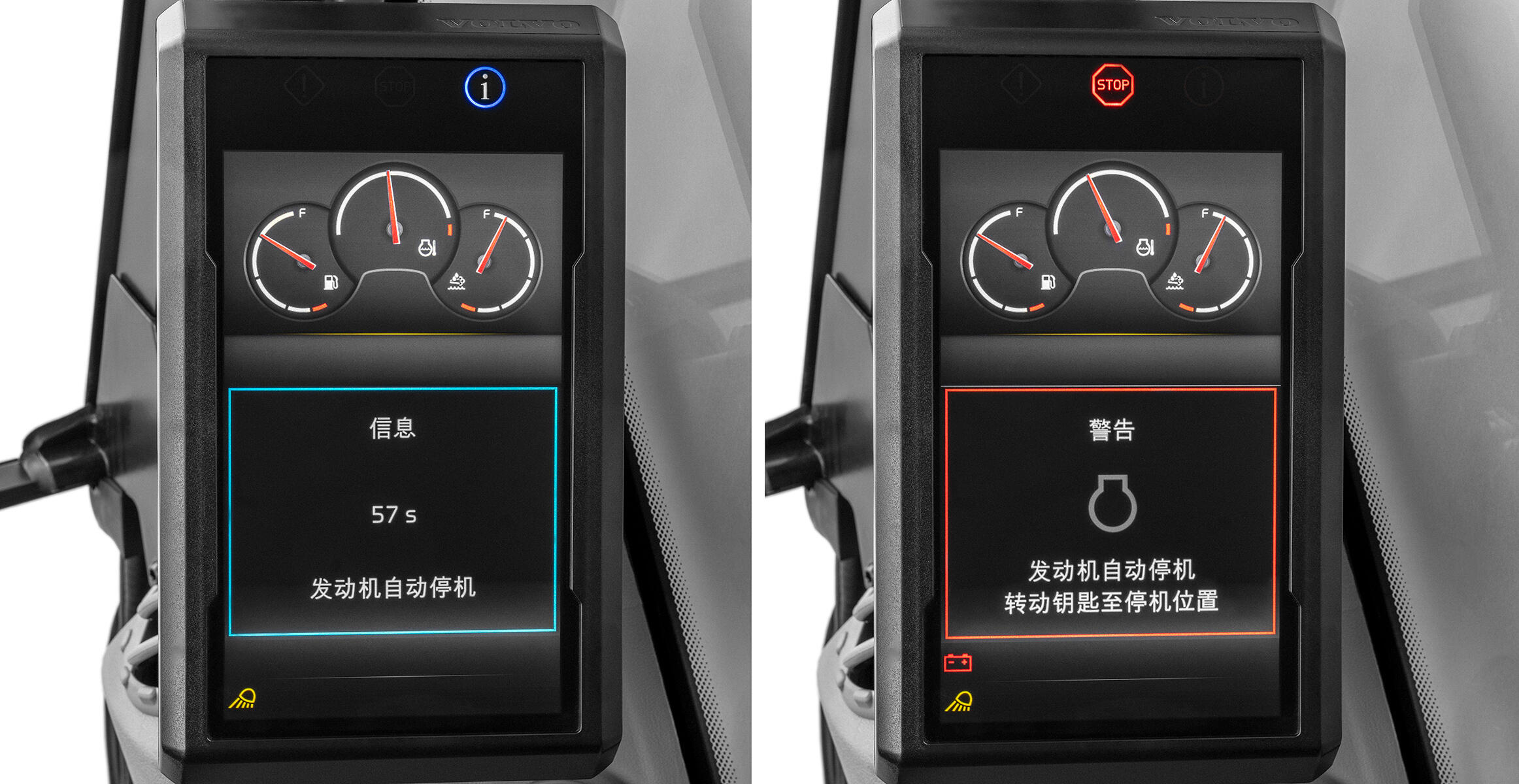

Make it count

Make every drop of fuel count with intelligent engine features which eliminate unnecessary fuel consumption, lower operating costs and reduce environmental impact. Automatic engine idle reduces engine speed to idle when the controls are inactive for a pre-set amount of time. Auto engine shut down automatically switches off the engine when the machine is inactive for a pre-set amount of time.

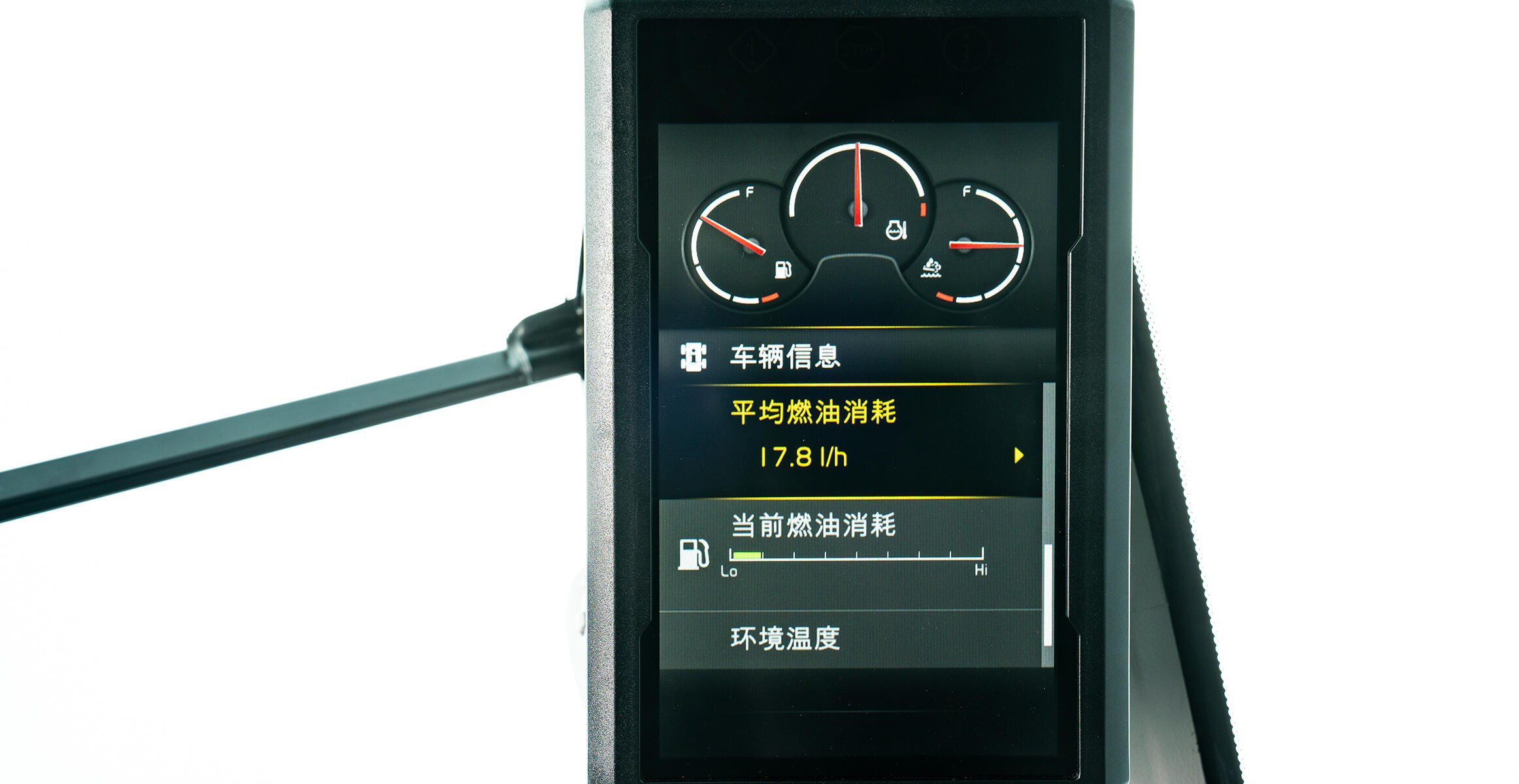

Stay in the know

Machine features combine with Volvo Services to help operators and owners monitor fuel usage, maximize efficiency and keep operating costs to a minimum. Stay in the know with the fuel gauge display, which provides visual information on both real-time and average fuel consumption. Fuel Efficiency Reports provide clear insights into the fuel performance of a fleet, site or individual machine, helping to identify areas for fuel efficiency improvements.

Low-noise, low vibrations and ergonomic controls make this the industry’s favorite cab and most comfortable operator environment on the market.

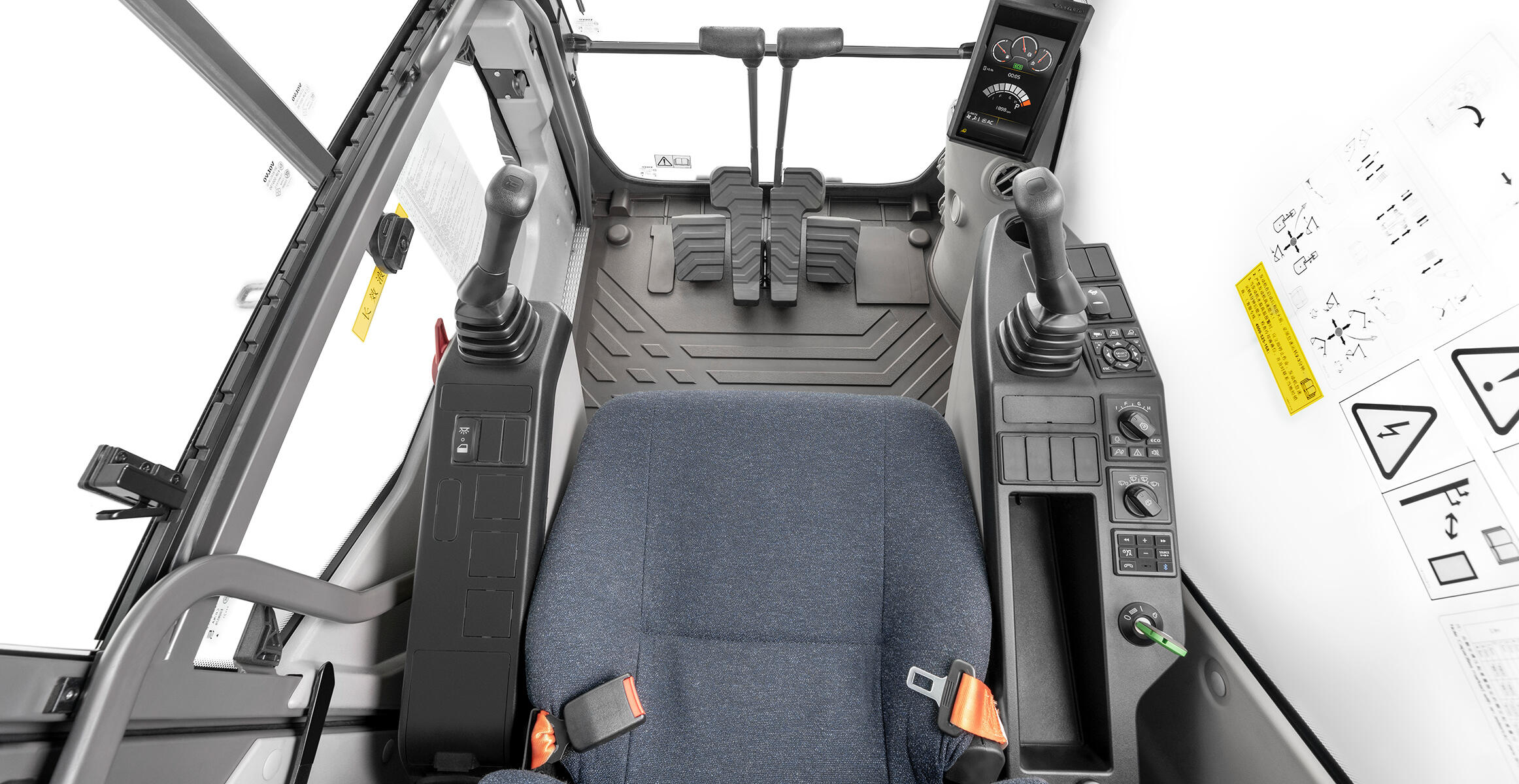

The best cab around

Step inside the industry’s favorite cab and the most comfortable operator environment on the market. Operators can enjoy the low-noise, low vibration cab-interior and benefit from ergonomic controls, suspended seat, premium climate control system and Bluetooth. The result is a happier, more alert and more productive operator.

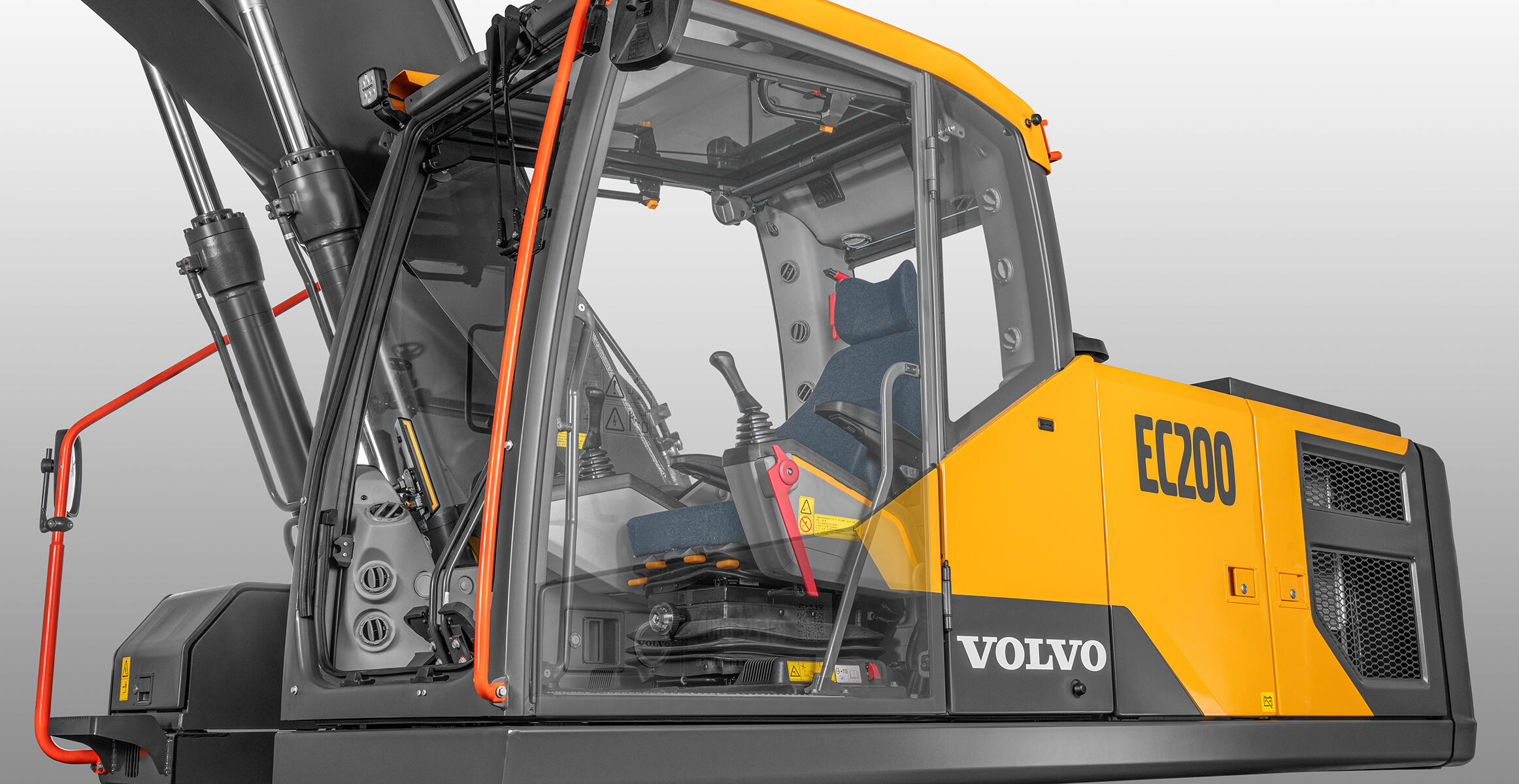

Best-in class visibility

Outstanding all-round visibility means operators can work in confidence thanks to features including slim cab pillars, optimized LED work lights, large glazed areas and rear-view camera.

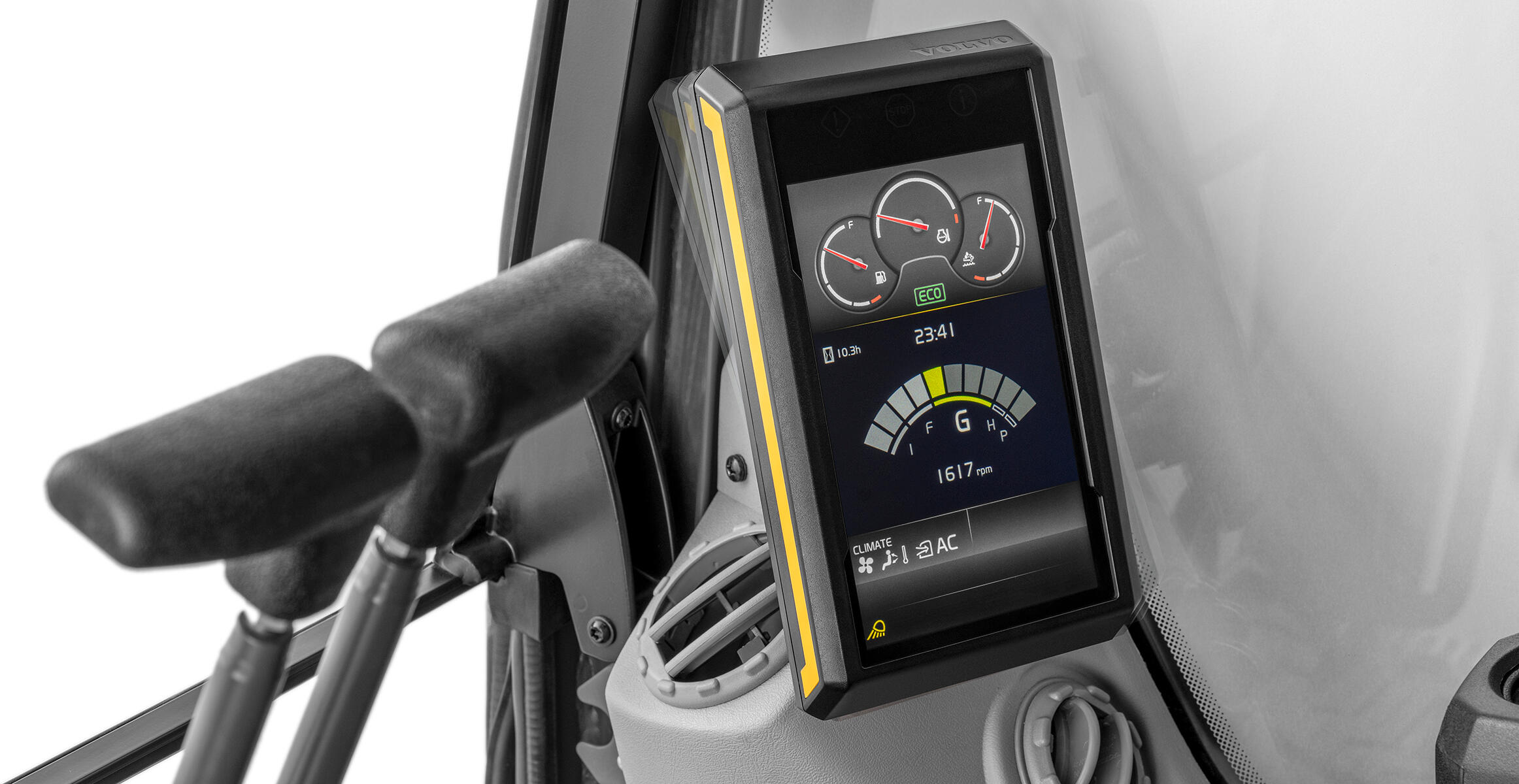

New monitor

A larger, color LCD monitor displays more information in a more intuitive layout. The device includes anti-glare and tiltable screen for added ease-of-use.

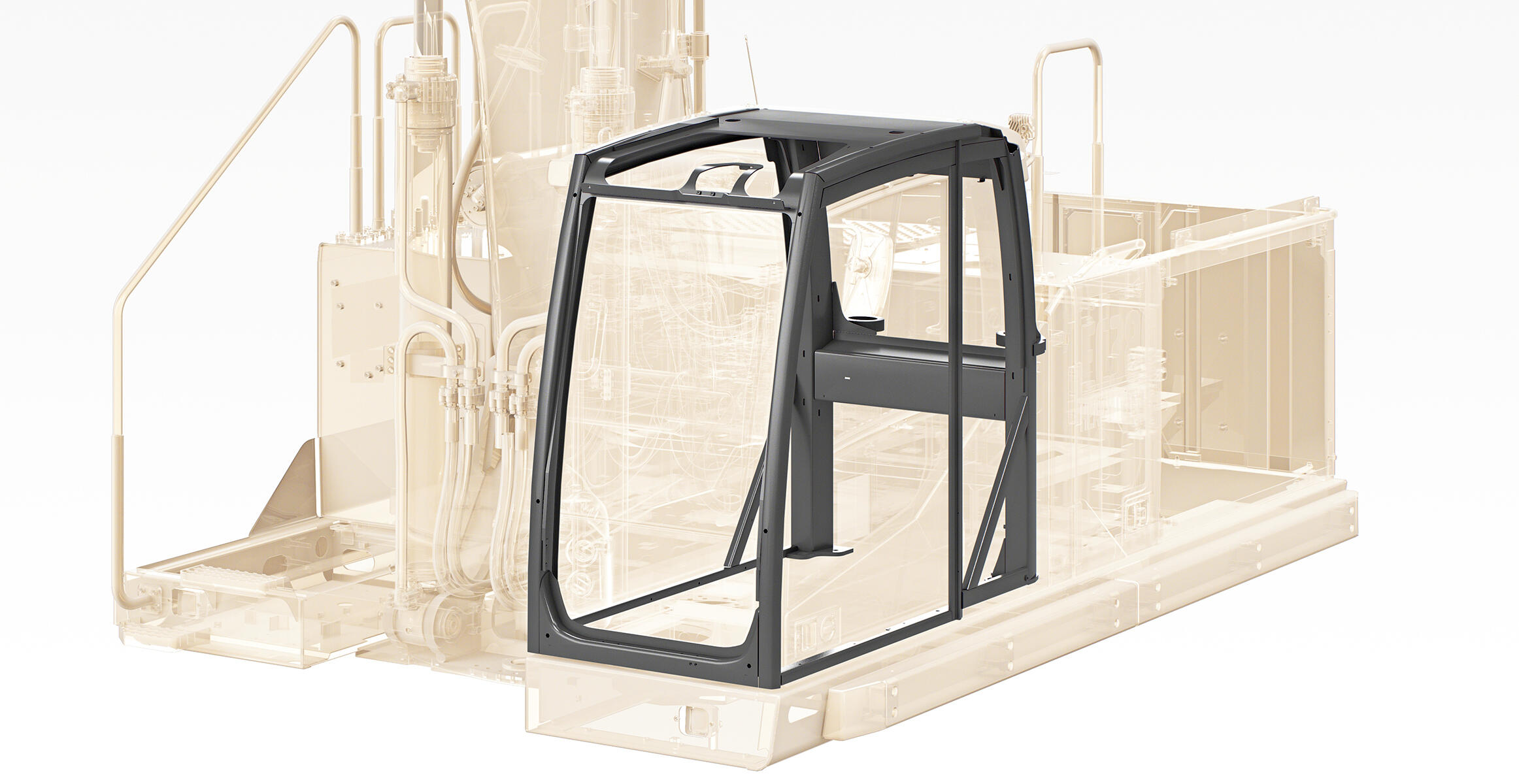

Safety first

Every Volvo machine is designed with safety as a priority and the EC200 features a ROPS cab, emergency engine shutdown and laminated front glass for added operator protection.

Count on the EC200 to deliver a highly productive performance and short cycle times, with a 5% increase in bucket size for an extra productivity boost.

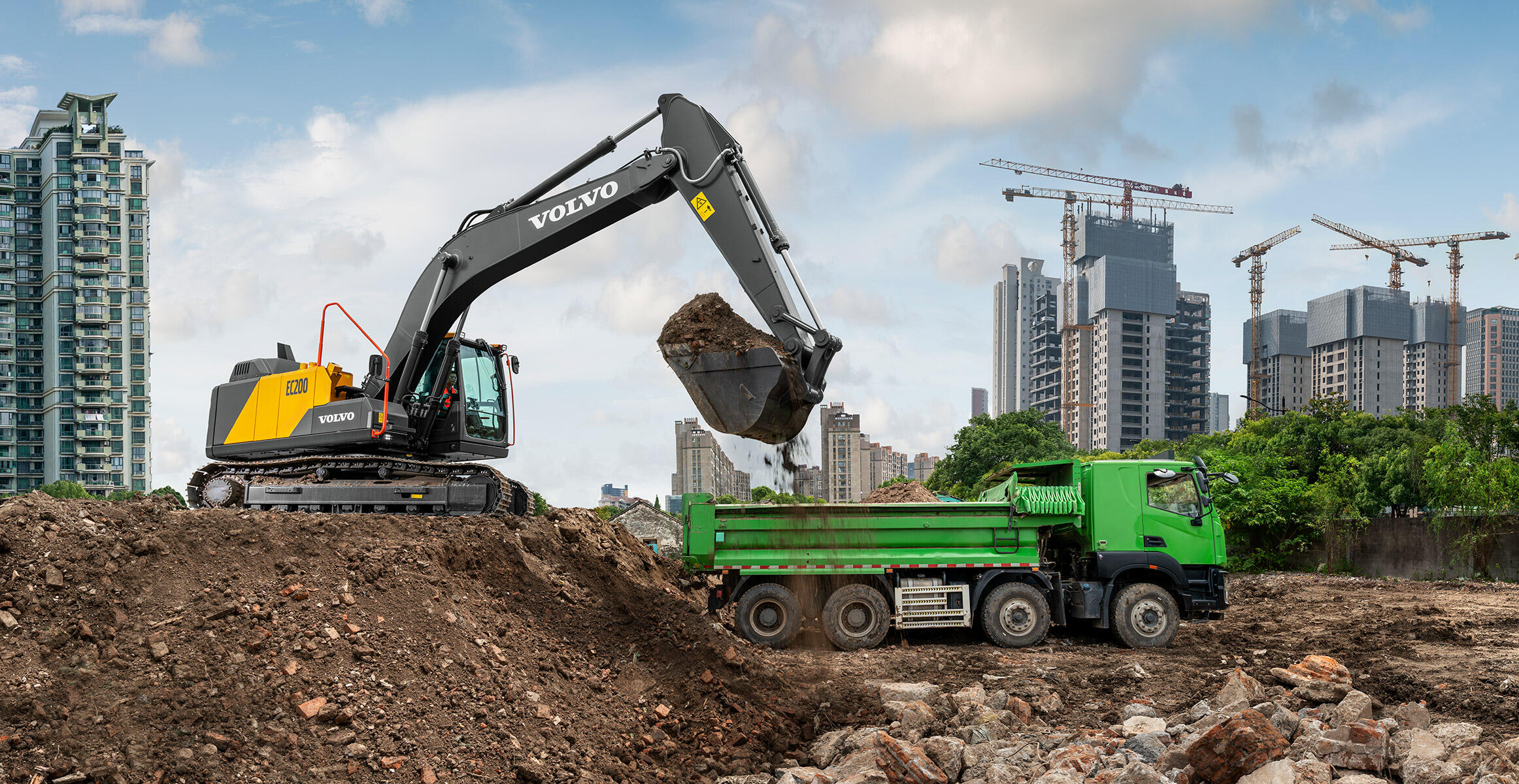

Built for productivity

Move more, dig more and load more. High swing speed and powerful China IV compliant Volvo engine means you can count on the EC200 to deliver a highly productive performance and short cycle times. A 5% increase in bucket size gives productivity a further boost.

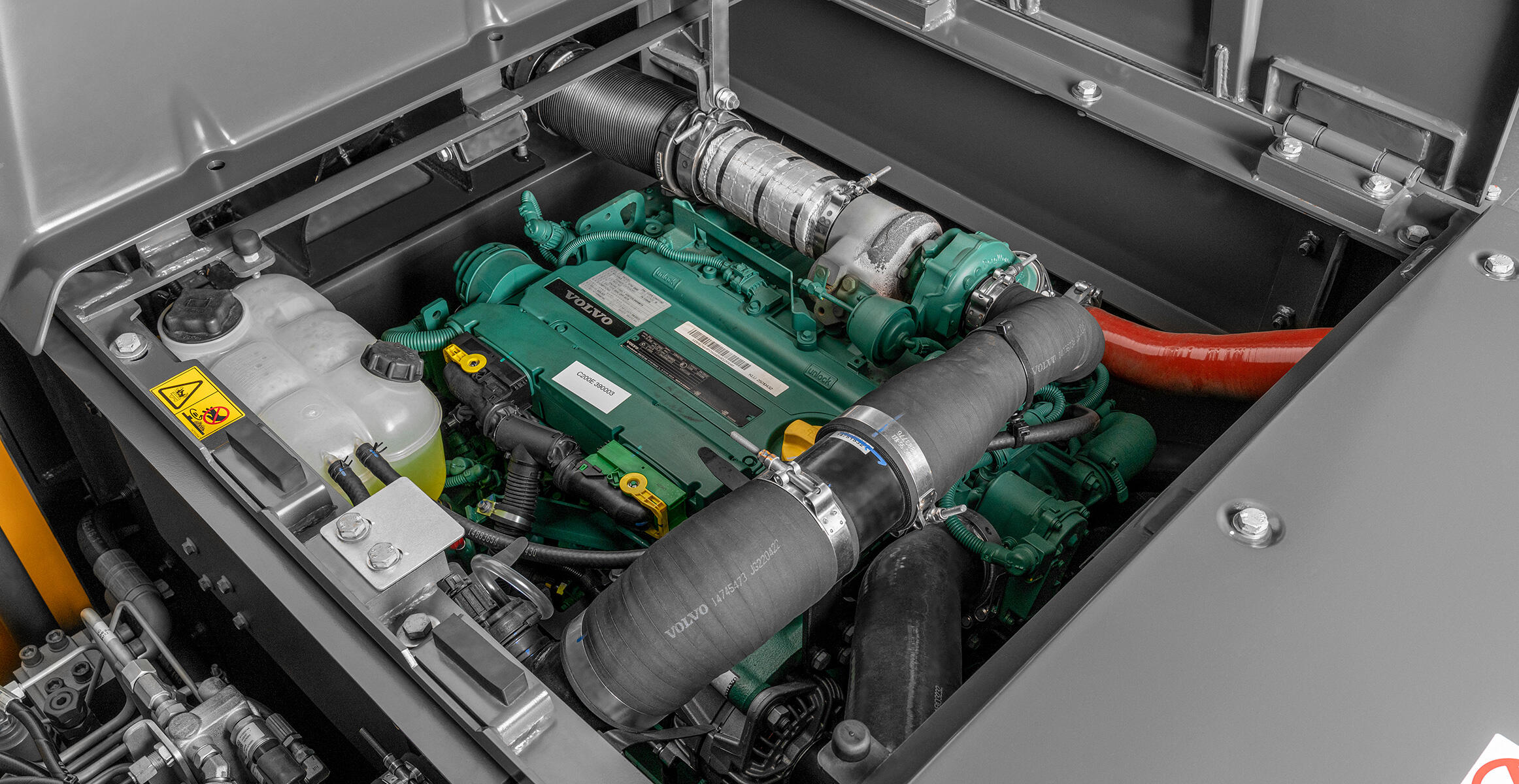

Proven engine technology

The China IV compliant Volvo D4 engine has been proven throughout the world since 2014. With technology that has been tested and enhanced for almost 10 years, this is an engine which customers can rest assured will deliver outstanding levels of quality, reliability, and efficiency.

Enduring performance

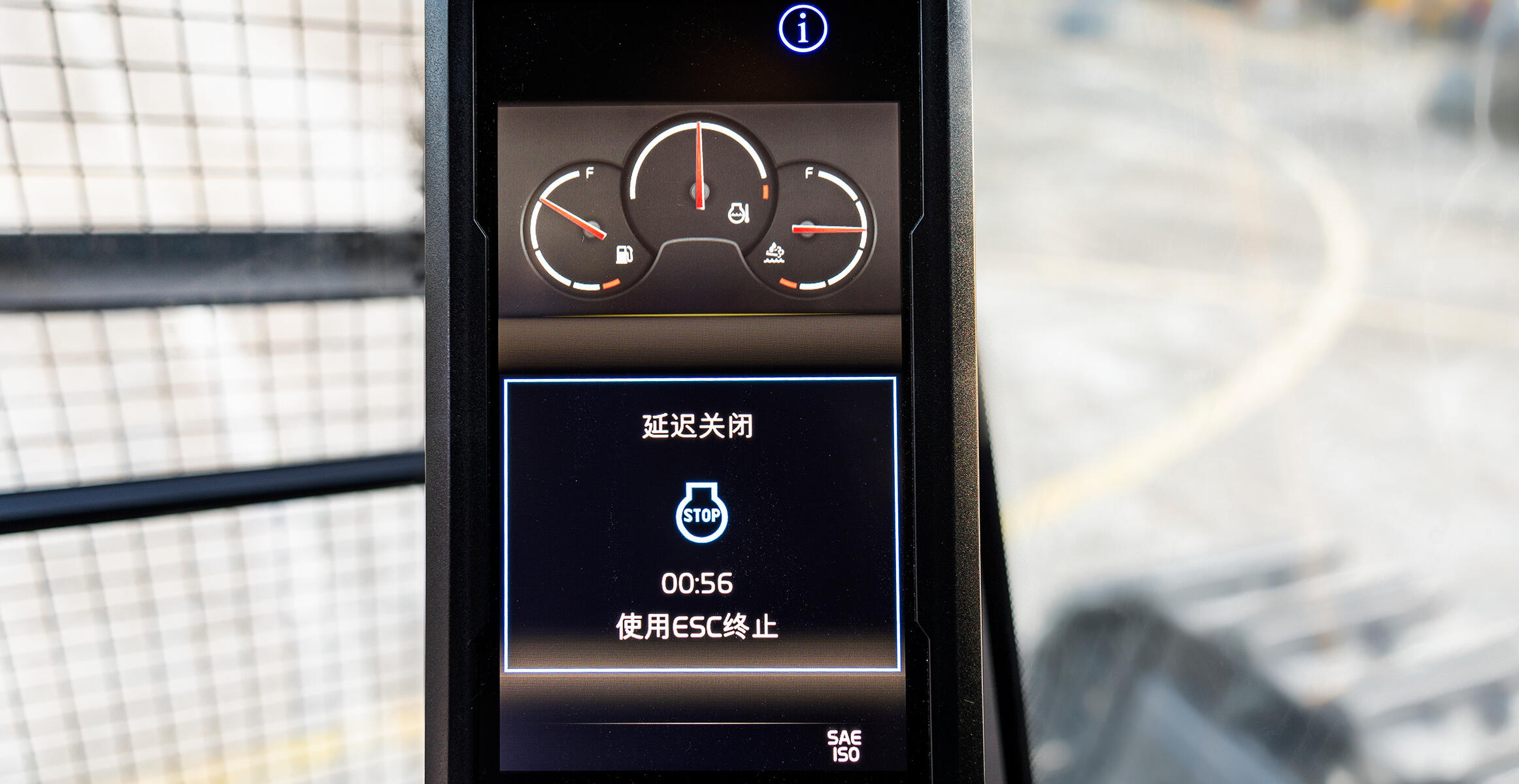

A host of standard protection features including filters, electronic warning sensors and auto-protect system help to keep the machine in top working condition. Engine durability and reliability is further enhanced by the intelligent delayed engine shutdown function, which turns the machine off when the turbo charger has cooled down to the appropriate temperature.

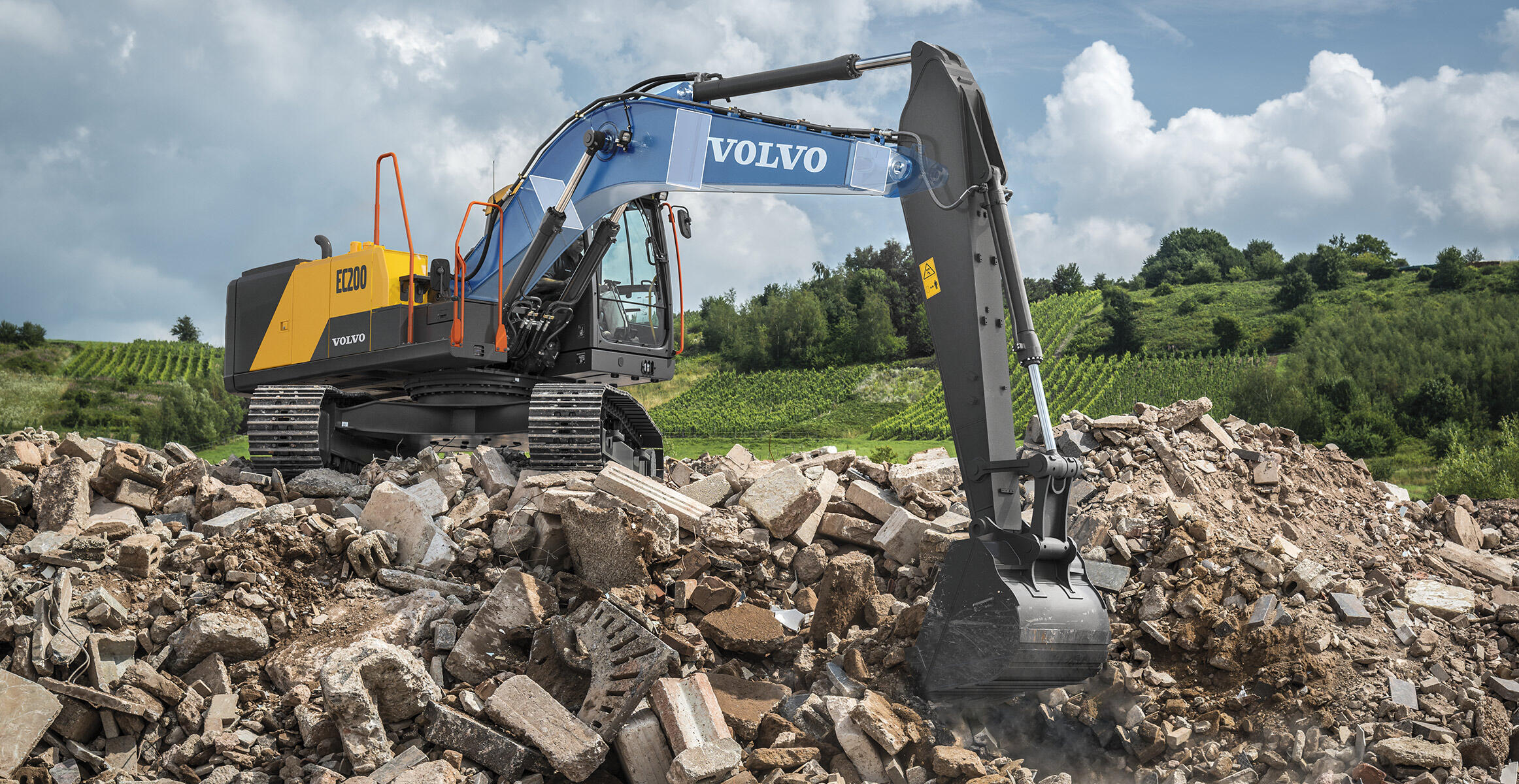

Built to last

Work harder, for longer thanks to the robust design of the EC200, including Optimized boom and arm with internal plates which disperse stress from high-pressure areas. The X-shape Optimized lower frame enables even weight distribution, and an Optimized undercarriage creates excellent tractive force.

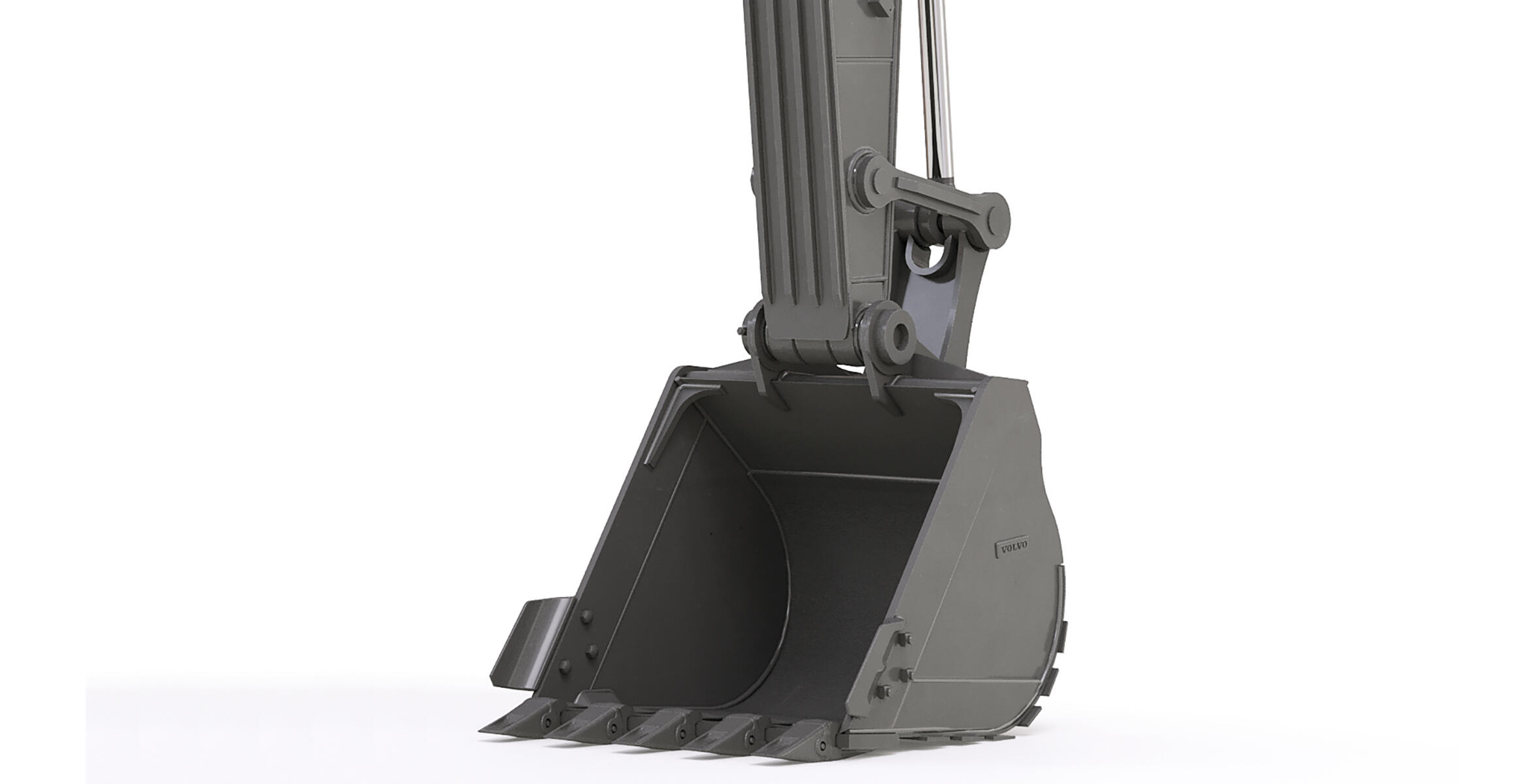

Do more

Maximize productivity and profitability by combining your machine with a range of factory-delivered buckets, making the EC200 the ideal choice for digging and rehandling in all conditions.

Complete routine servicing with speed and ease thanks to a range of features which help to keep uptime to a maximum.

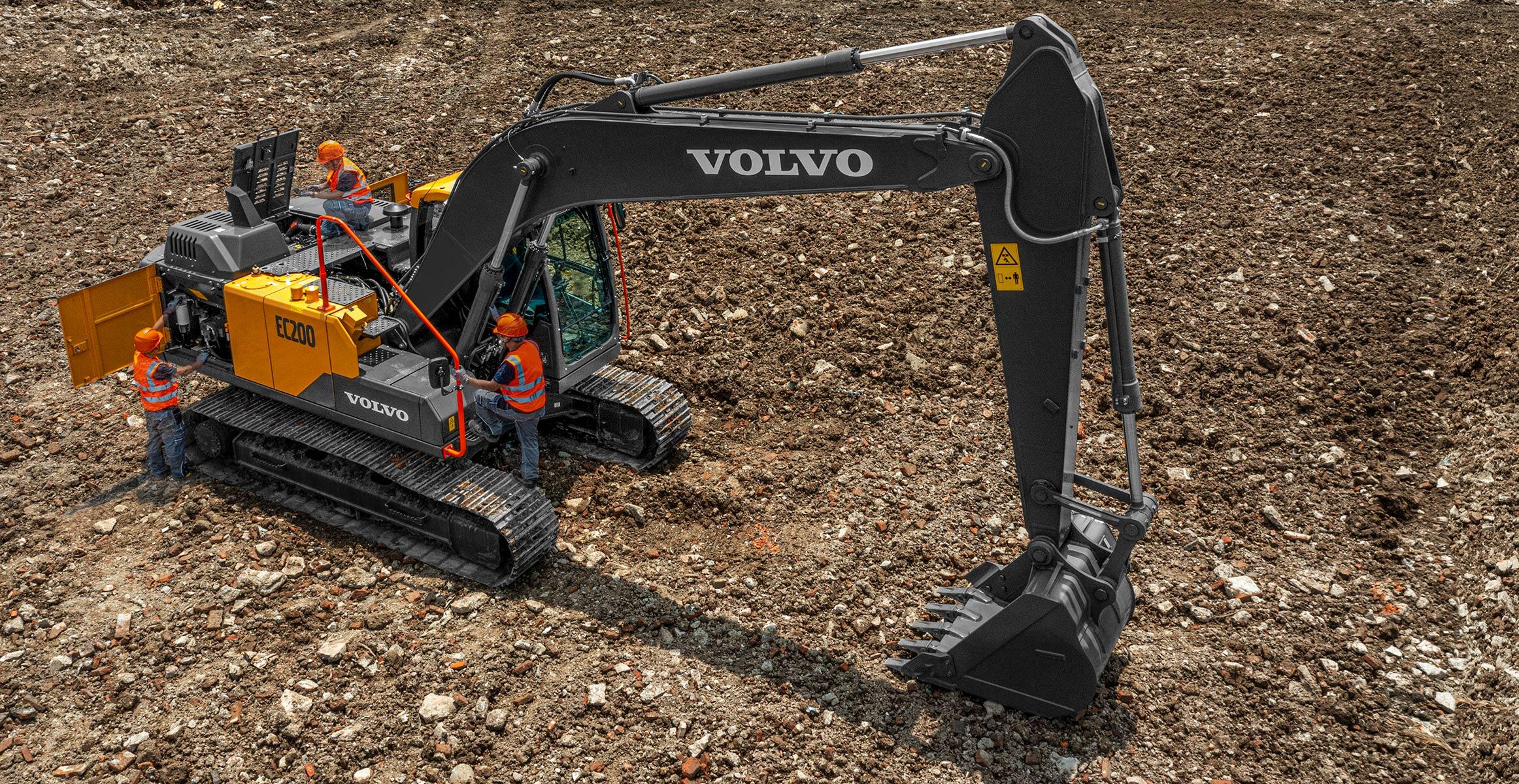

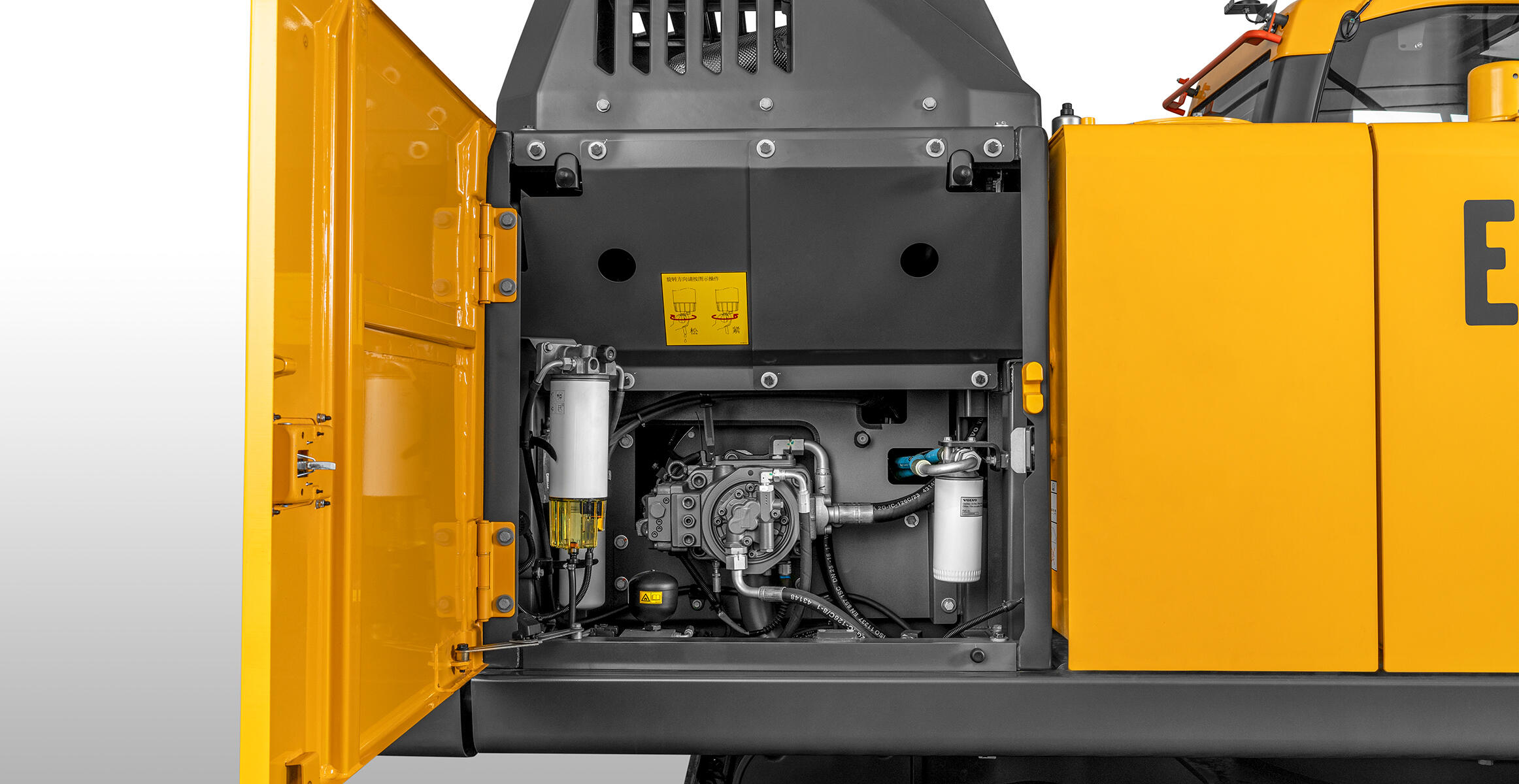

Easy servicing

Complete routine servicing with speed and ease thanks to a range of features including grouped greasing points and filters accessible from the ground level. Anti-slip plates and high-visibility handrails allow operators and technicians to negotiate the machine exterior safely and easily. Toolbox capacity has also been increased, for faster and more convenient servicing.

Uninterrupted productivity

Reduce operating costs and boost uptime with long service intervals. 5,000 hour hydraulic oil and 2,500 hour hydraulic oil filter change intervals minimize disruption to your operation, combined with an increased fuel tank capacity, helping you achieve uninterrupted productivity for longer.

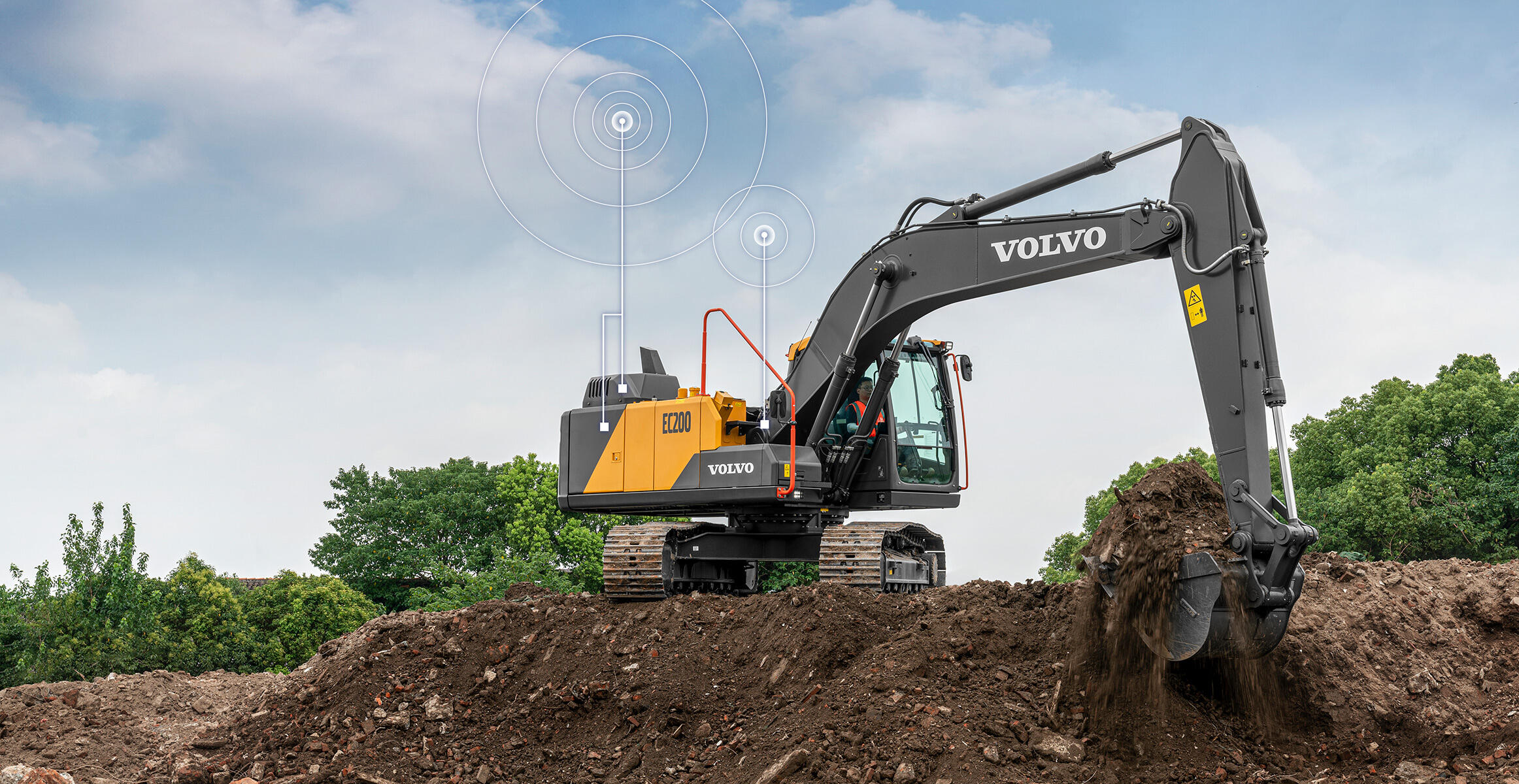

Machine monitoring made easy

Maximize machine uptime and reduce repair costs with the Pulse, the new telematics system. Choose to keep track of your machine yourself or let us take care of it with Volvo Active Care. Our Volvo Uptime Center will provide 24/7 machine monitoring, supplying weekly reports and notifying you should preventive maintenance action be required.

At your service

Keep your machine working at its best with a range of Volvo Services, designed to meet customer needs through proactive solutions and our network of technical experts. Services such as extended warranty and customer care inspections secure optimum machine operation and excellent performance.
