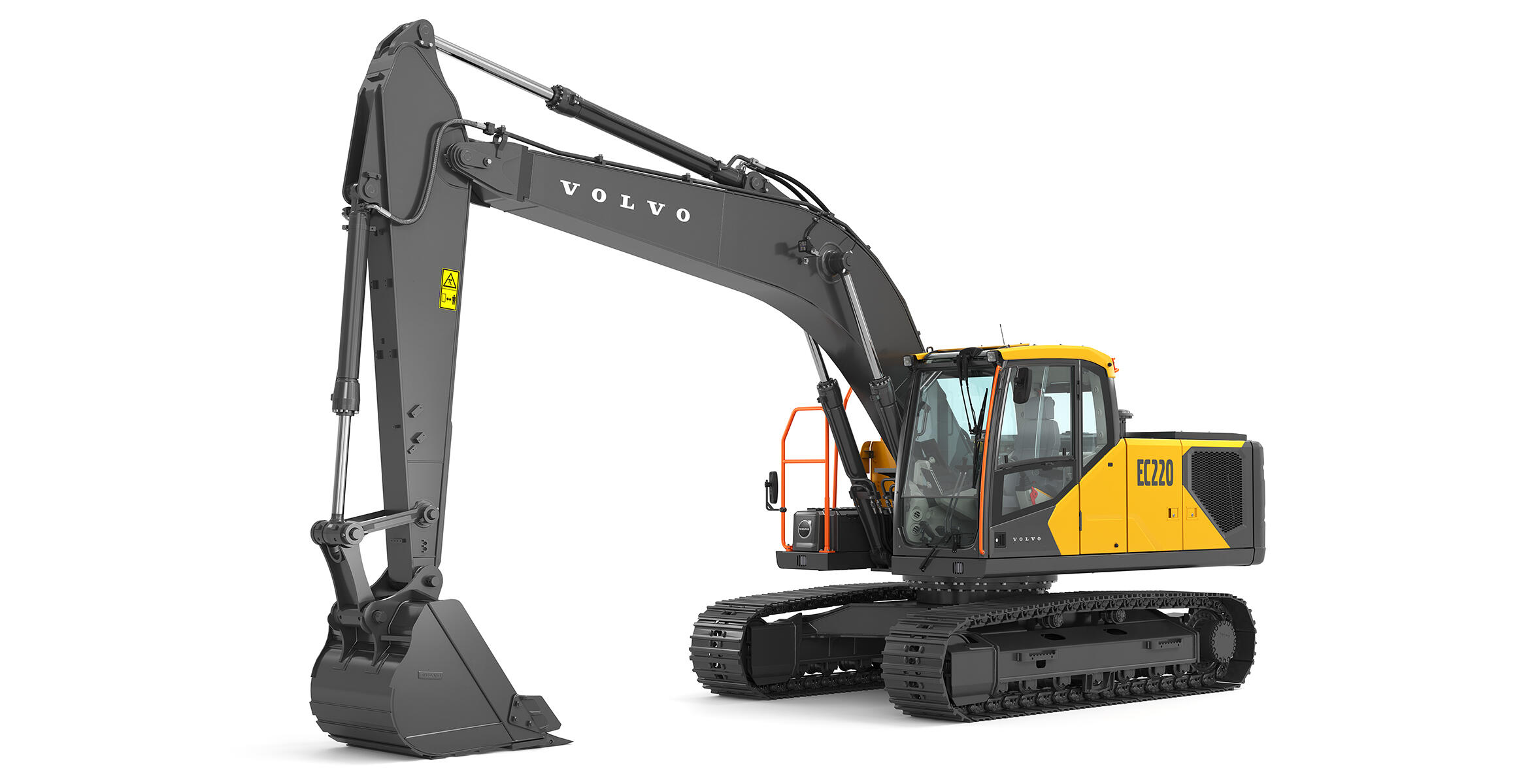

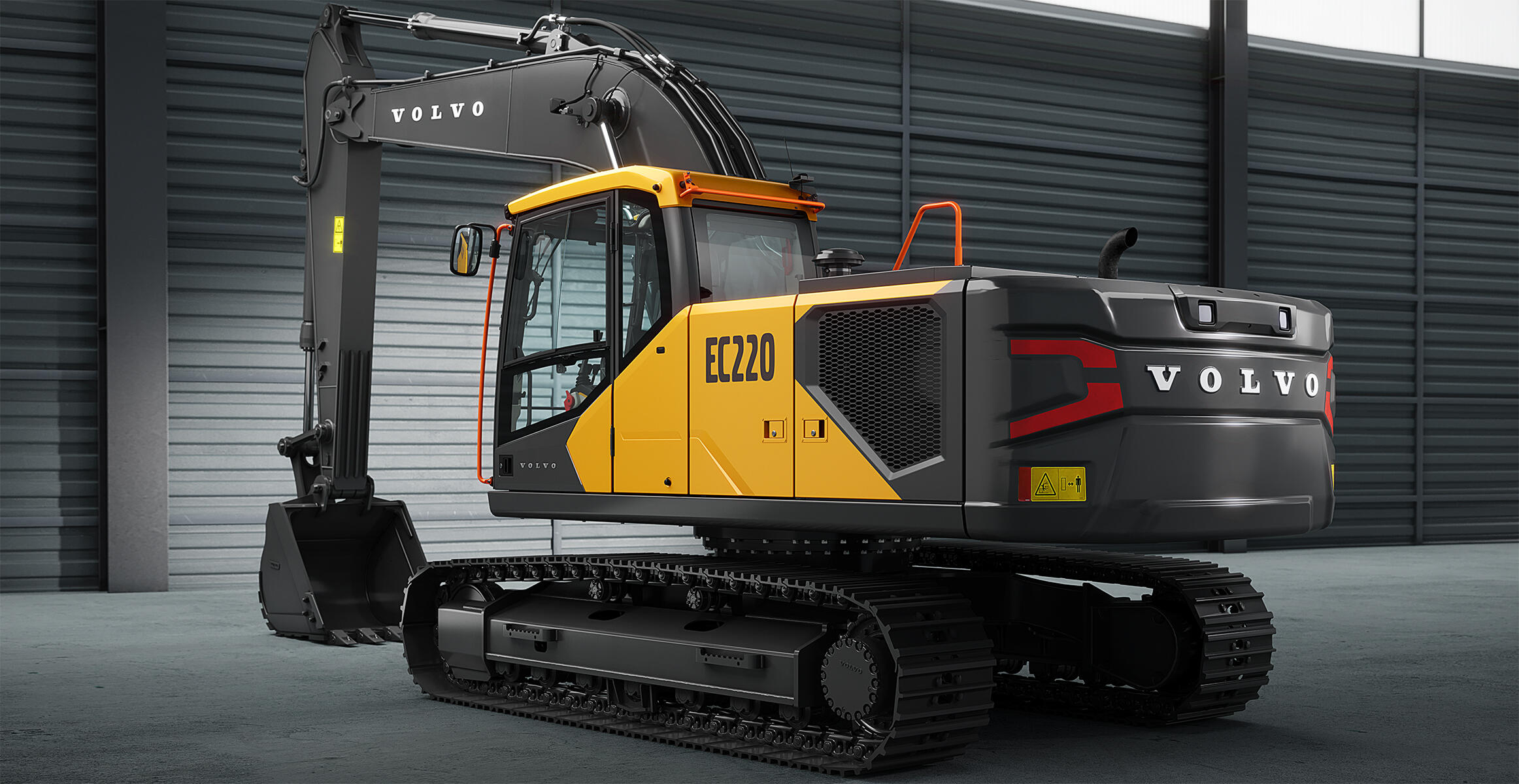

Medium Crawler Excavators EC220

  • 22,000 kg Operating weight
  • 123 kW Gross power
  • 1.2 m³ Bucket capacity
The EC220 has been built with productivity in mind. Building on the success of the previous generation, this new crawler excavator provides the winning mix of power and performance, combined with up to 10% higher fuel efficiency. Operators benefit from the highest standards of comfort and safety,... Read more
Contact us

Do more for less

The EC220 has been built with productivity in mind. Building on the success of the previous generation, this new crawler excavator provides the winning mix of power and performance, combined with up to 10% higher fuel efficiency. Operators benefit from the highest standards of comfort and safety, and you can count on maximum uptime thanks to the robust design, easy servicing and long service intervals.

Technical specifications for EC220

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.
Operating weight 22,000 kg
Gross power 123 kW
...at engine speed 1,800 rpm
Bucket capacity 1.2
Max. digging reach 9,930 mm
Max. digging depth 6,730 mm
Breakout force, SAE J1179 (Normal) 130 kN
Tear out force, SAE J1179 (Normal) 102 kN
Overall width 2,990 mm
Tail swing radius 2,850 mm
Based on machine configuration: STD crawler, Boom 5.7m; Arm 2.9m; Shoe 600mm; CWT 4 100kg
Images for illustration purposes only. Production machines may differ in appearance and features vary between markets and models.
Download the EC220 brochure, with all the details and specifications. (PDF, 556.5KB)

Features & Benefits

Efficient productivity Introducing the new generation EC220. Building on the proven success of its predecessor, this new crawler excavator delivers up to a 10% improvement in fuel efficiency without any compromise on power, performance and productivity.

Efficient productivity

Powered by the Volvo D6E engine the EC220 produces the ultimate combination of high power and low fuel consumption. The premium 6-cylinder Volvo engine provides high torque at low RPM, delivering impressive performance, efficiency and long-lasting reliability.

A fuel efficient mode

Unique Volvo technology incorporates work modes within the throttle control, for optimum performance. When the operator selects a work mode – I (Idle), F (Fine), G (General), H (Heavy) and P (Power) – the rpm is already set for maximum efficiency. ECO mode can improve fuel efficiency by a further 5%, without any loss of performance in most operating conditions.

More control, less fuel

Shifts are smoother and more efficient thanks to the new optimized electro-hydraulic (positive) control system, which not only improves fuel efficiency but also enhances controllability and response time. A boom swing priority valve boosts controllability further, making the EC220 the perfect choice for truck loading.

Make it count

Make every drop of fuel count with intelligent engine features which eliminate unnecessary fuel consumption, lower operating costs and reduce environmental impact. Automatic engine idle reduces engine speed to idle when the controls are inactive for a pre-set amount of time. Auto engine shut down automatically switches off the engine when the machine is inactive for a pre-set amount of time.

Stay in the know

Machine features combine with Volvo Services to help operators and owners monitor fuel usage, maximize efficiency and keep operating costs to a minimum. Stay in the know with the fuel gauge display, which provides visual information on both real-time and average fuel consumption. Fuel Efficiency Reports provide clear insights into the fuel performance of a fleet, site or individual machine, helping to identify areas for fuel efficiency improvements.

The best cab around The EC220 is designed to keep operators safe, comfortable and working their best. Features including Volvo cab, outstanding visibility and a host of safety enhancements provide the industry-renowned levels of comfort and safety you would expect from Volvo.

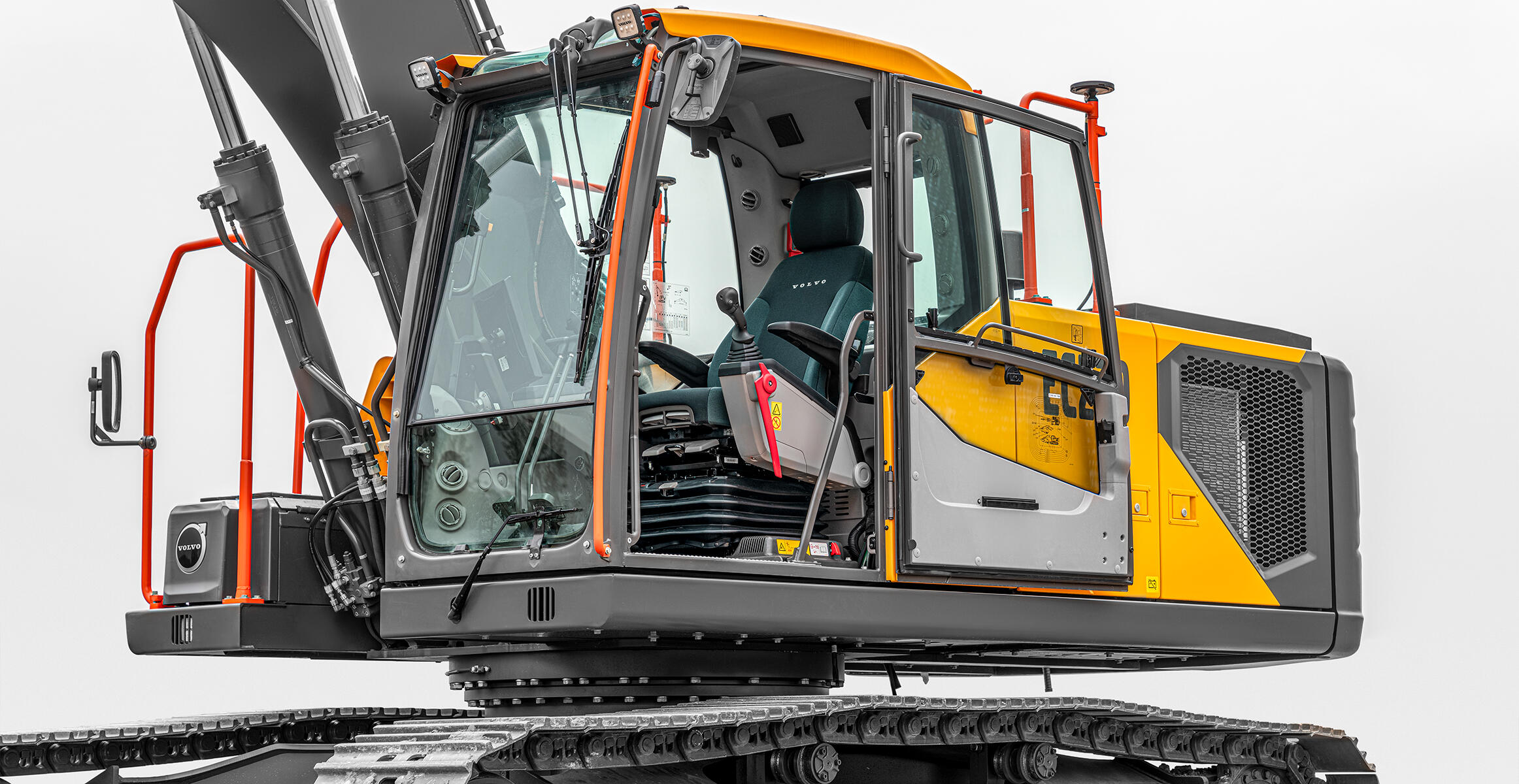

The best cab around

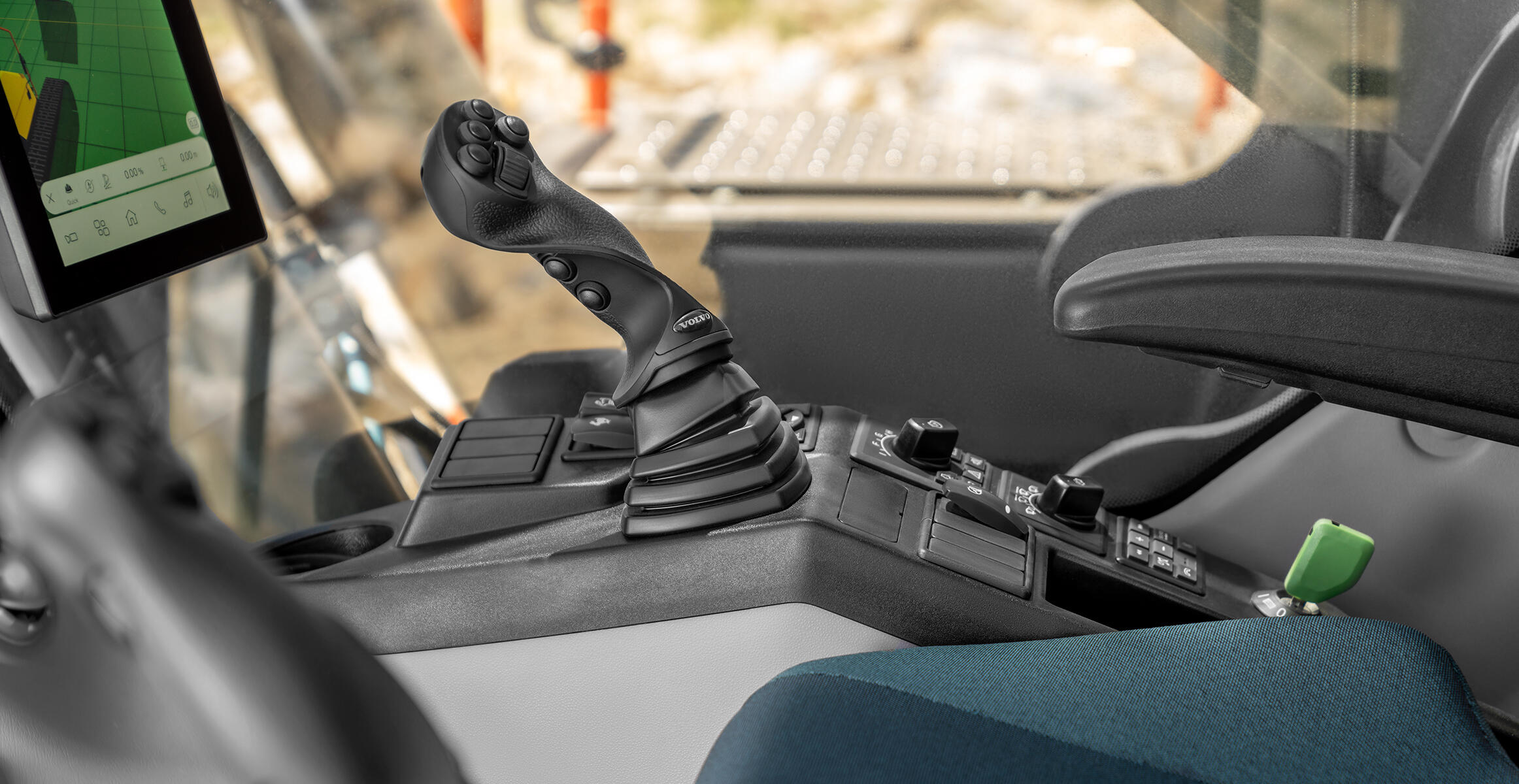

Step inside the industry’s favorite cab and the most comfortable operator environment on the market. Operators can enjoy the low-noise, low vibration cab-interior and benefit from ergonomic controls, suspended seat, premium climate control system and Bluetooth. The result is a happier, more alert and more productive operator.

Best-in class visibility

Outstanding all-round visibility means operators can work in confidence thanks to features including slim cab pillars, large glazed areas and rear-view camera.

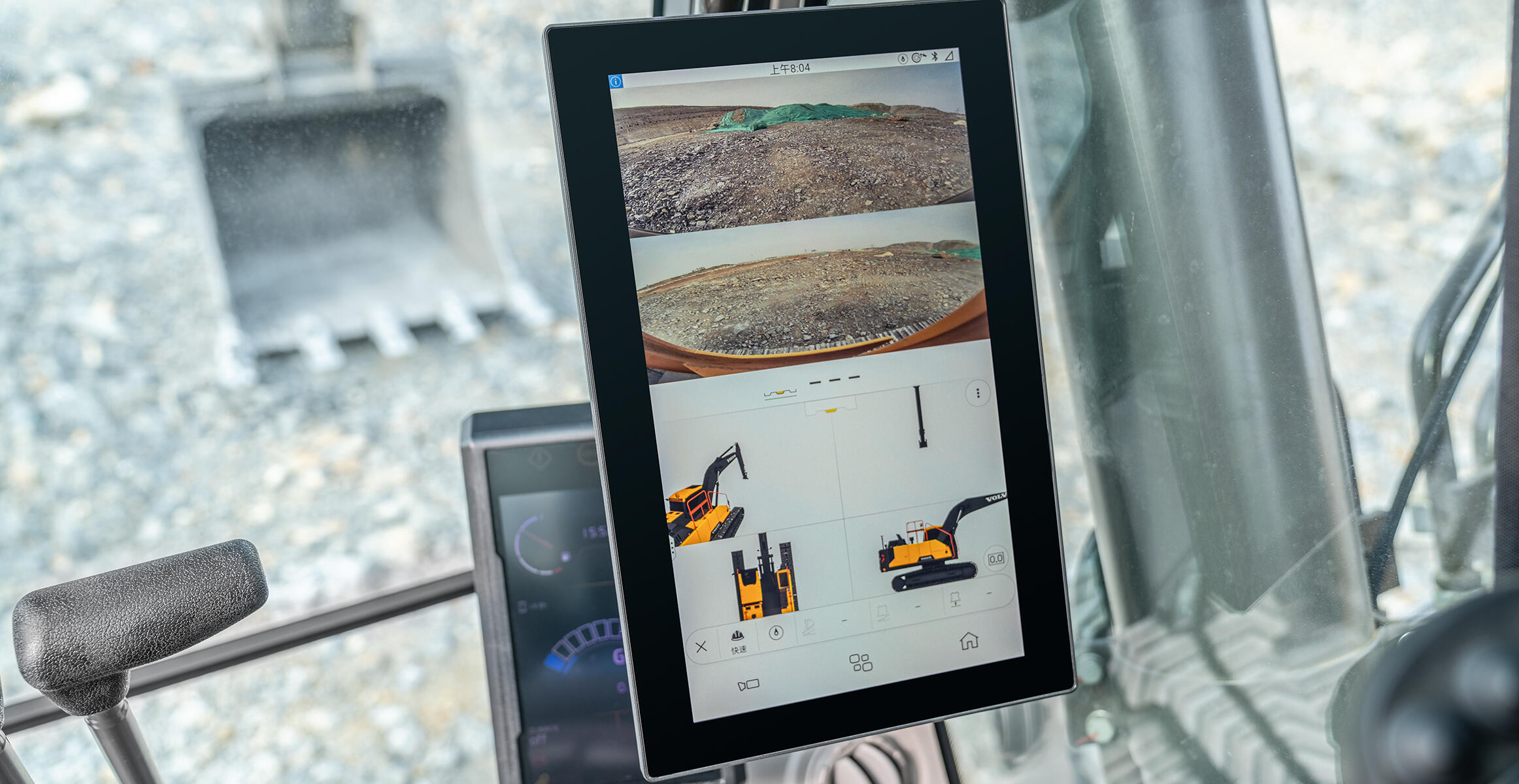

New monitor

A larger, color LCD monitor displays more information in a more intuitive layout. The device includes anti-glare and tiltable screen for added ease-of-use.

Safety first

Every Volvo machine is designed with safety as a priority and the EC220 features a ROPS cab, emergency engine shutdown and laminated front glass for added operator protection.

Built for productivity The EC220 has been built with productivity in mind. With features including powerful Volvo engine, durable components and robust design, this hard working and hard-wearing machine will help you achieve maximum results – shift after shift, day after day.

Built for productivity

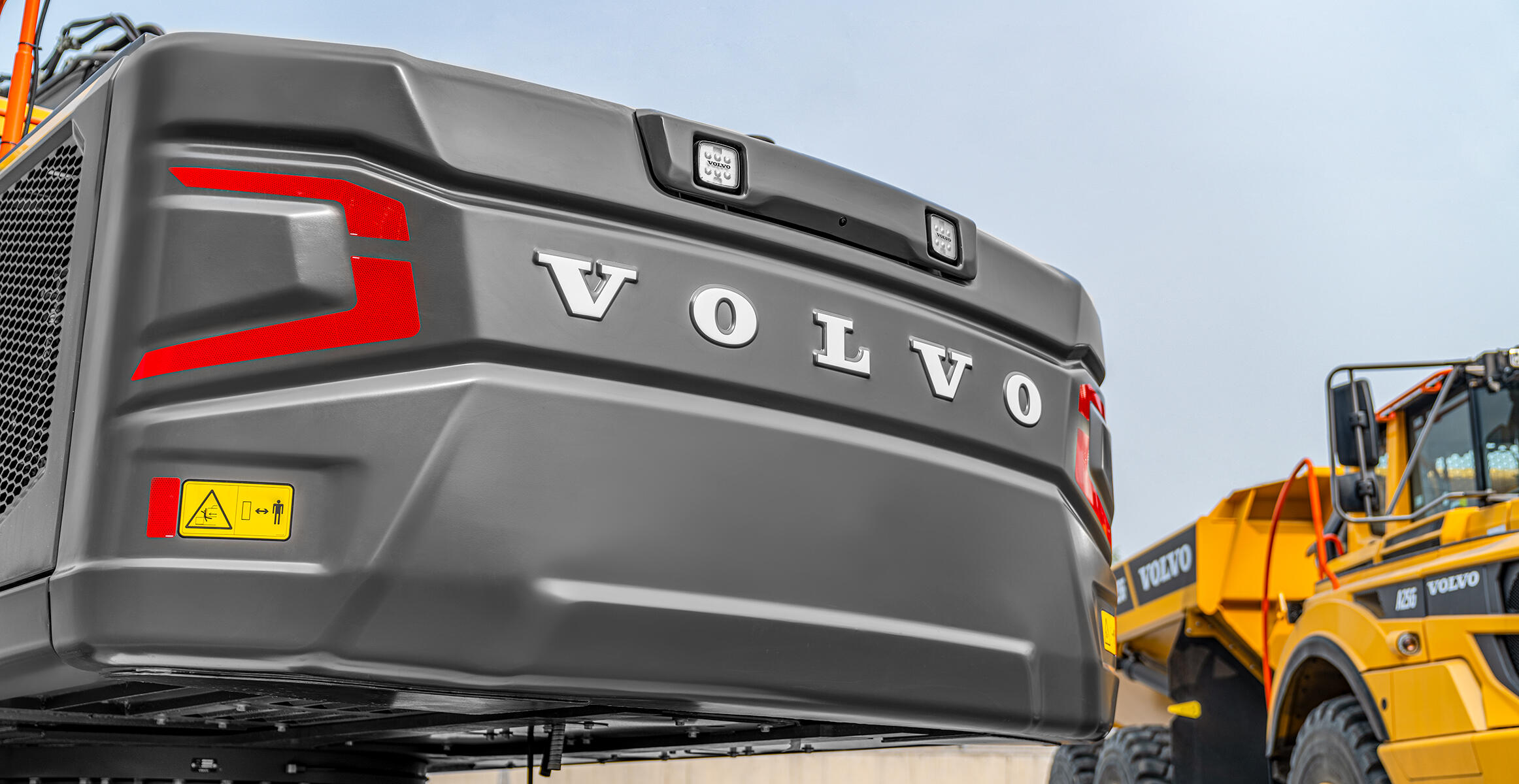

Move more, dig more and load more. High swing speed, large bucket, superb pump power and powerful Volvo engine means you can count on the EC220 to deliver a highly productive performance and short cycle times. A heavier counterweight contributes towards outstanding stability and enables the machine to work with confidence, even in the toughest environments.

Enduring performance

A host of standard protection features including filters, electronic warning sensors and auto-protect system help to keep the machine in top working condition – maximizing uptime and producing optimum results in the field.

Built to last

Work harder, for longer thanks to the robust design of the EC220, including Extreme boom and arm with internal plates which disperse stress from high-pressure areas. The X-shape Optimized lower frame enables even weight distribution, and an Optimized long undercarriage creates excellent tractive force.

Do more

Maximize productivity and profitability by combining your machine with a range of factory-delivered buckets, making the EC220 the ideal choice for digging and rehandling in all conditions.

Easy servicing Long service intervals, easy routine maintenance and a range of Volvo Services help maximize uptime and keep your machines on site and working their best.

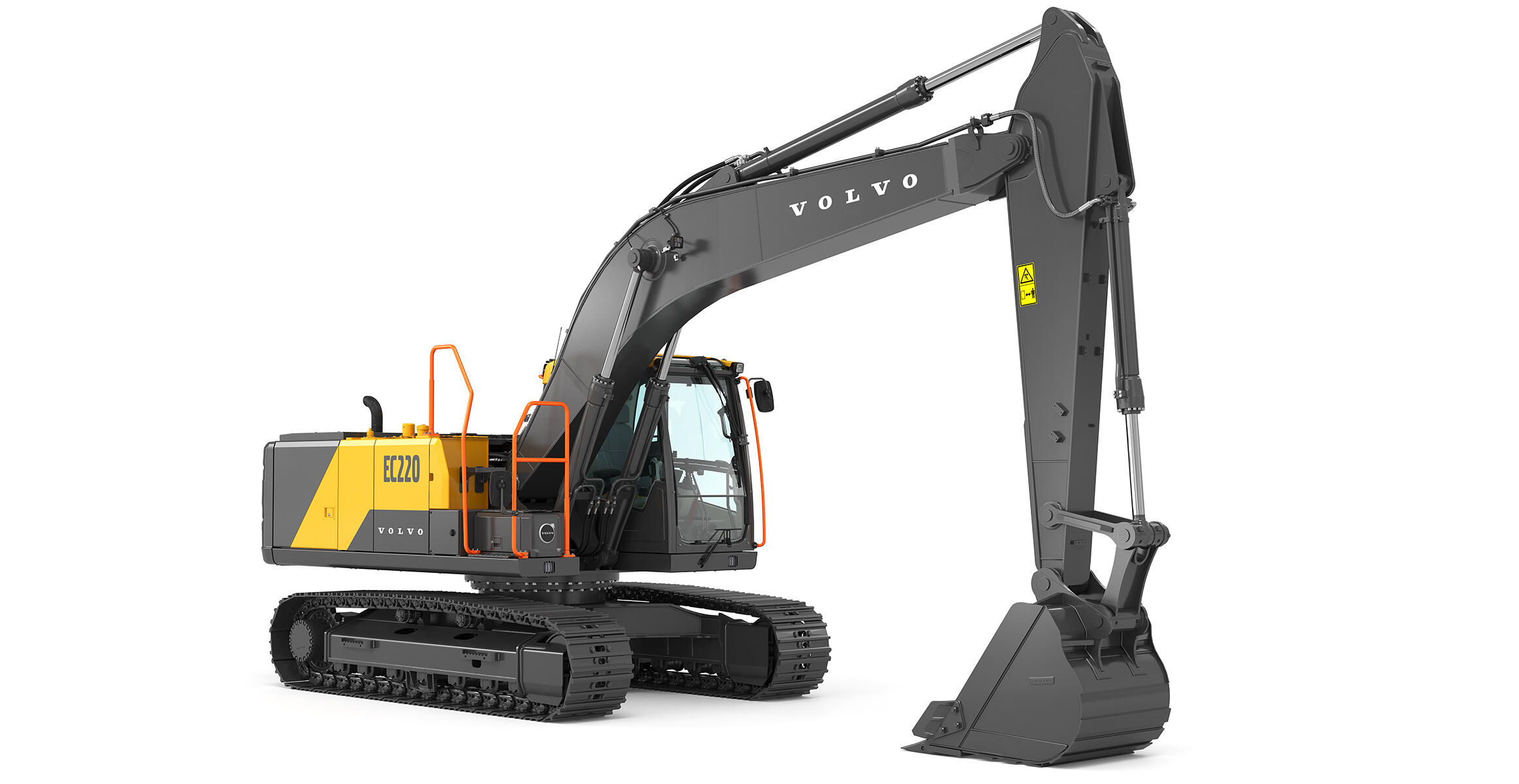

Easy servicing

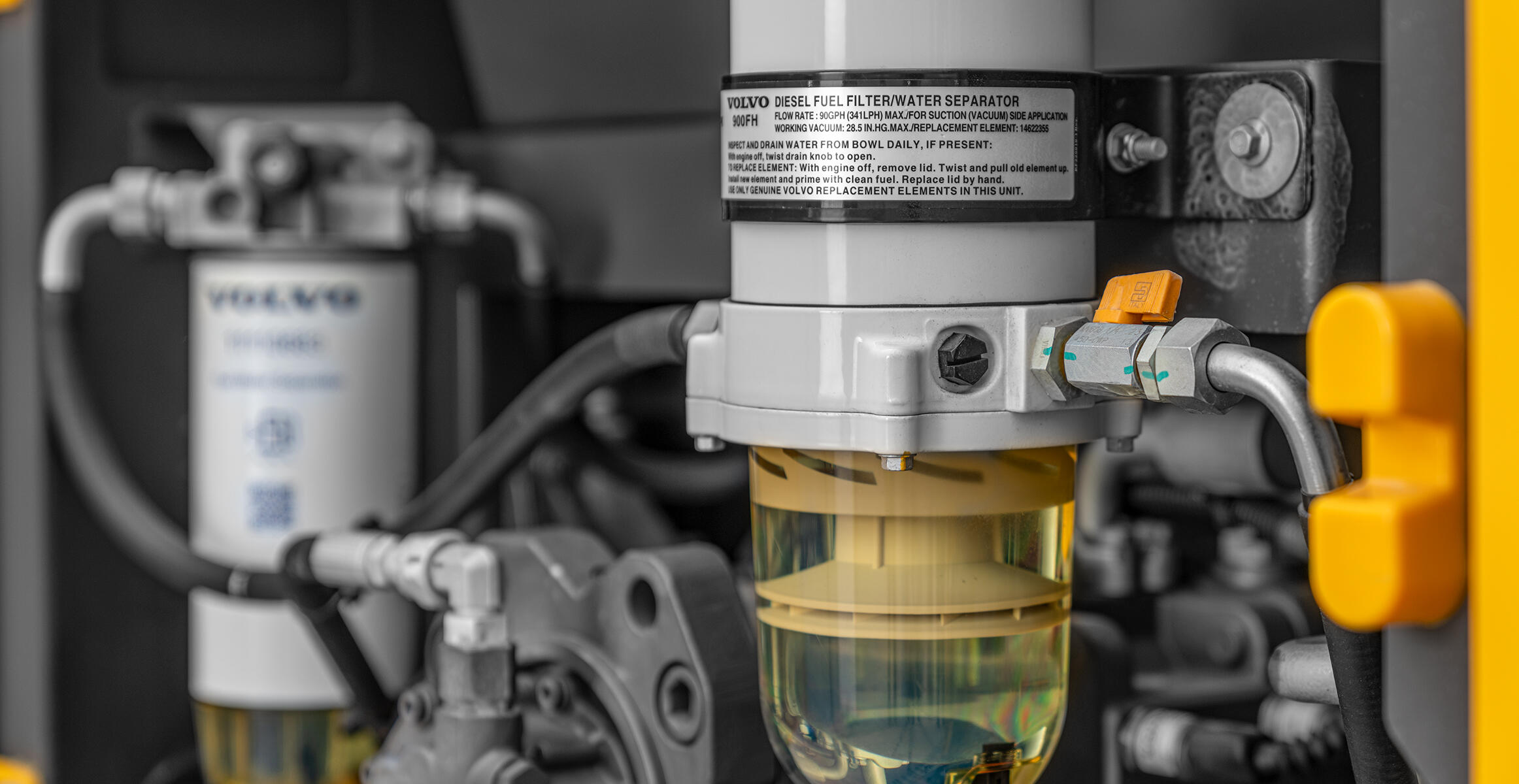

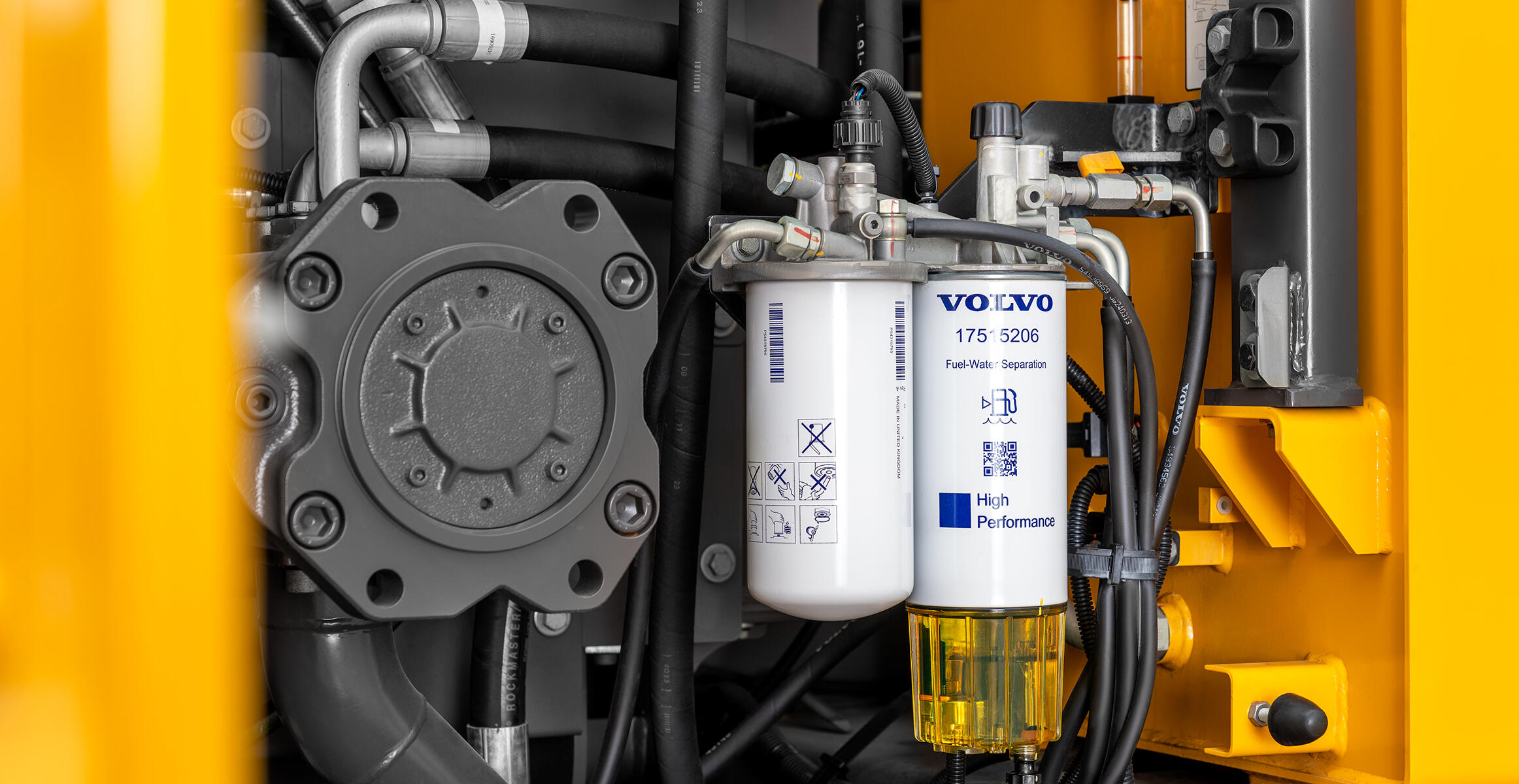

Complete routine servicing with speed and ease thanks to a range of features including grouped greasing points and filters accessible from the ground level. Anti-slip plates and high-visibility handrails allow operators and technicians to negotiate the machine exterior safely and easily.

Uninterrupted productivity

Reduce operating costs and boost uptime with long service intervals. 5,000 hour hydraulic oil and 2,500 hour hydraulic oil filter change intervals minimize disruption to your operation, helping you achieve uninterrupted productivity for longer.

Machine monitoring made easy

Maximize machine uptime and reduce repair costs with the Pulse, the new telematics system. Choose to keep track of your machine yourself or let us take care of it with Volvo Active Care. Our Volvo Uptime Center will provide 24/7 machine monitoring, supplying weekly reports and notifying you should preventive maintenance action be required.

At your service

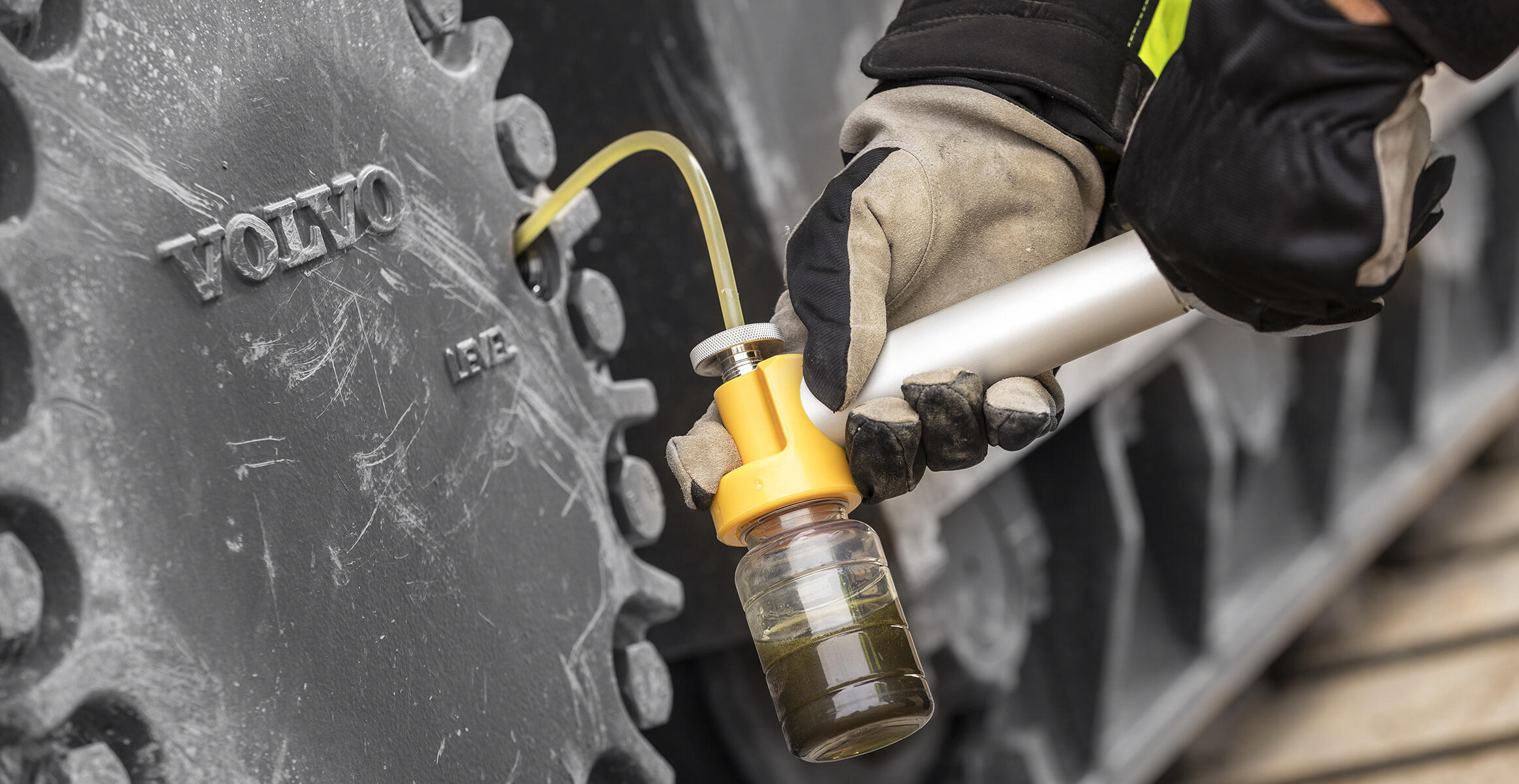

Your Volvo dealer is here to help you with a range of Volvo Services – including Repair and Maintenance agreements, Oil Analysis and Extended Coverage – to keep your machines working and performing at their best. Maintain productivity and machine uptime with our range of widely available, tested and approved Genuine Volvo Parts – all backed by Volvo warranty.

Keep your Volvo a Volvo!

Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.
