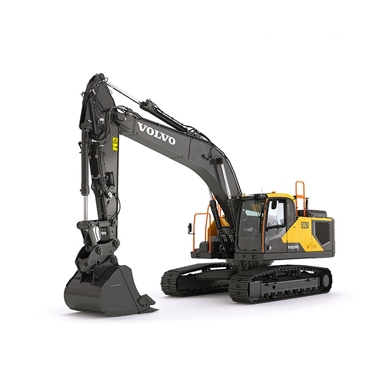

EC250 CN4 | Excavators | Overview | Volvo Construction Equipment

Operating weight	26,010 - 31,650 kg
Gross power	168 kW
...at engine speed	1,600 rpm
Bucket capacity	0.48 - 1.85 m³
Lifting capacity, along undercarriage	9,620 kg
...at reach / height	6 m
Max. digging reach	10,340 mm
Max. digging depth	7,060 mm
Breakout force, SAE J1179 (Normal)	145 kN
Breakout force, SAE J1179 (Boost)	157 kN
Tear out force, SAE J1179 (Normal)	114 kN
Tear out force, SAE J1179 (Boost)	124 kN
Overall width	3,190 mm
Tail swing radius	3,075 mm

Features & Benefits

A host of features combine in the EC250 to deliver up to 10% more fuel efficiency, while also providing 23% more power.

More fuel efficiency

A range of features combine in the EC250 to deliver up to 10% improvement in fuel efficiency. The new D8M Volvo engine reduces rated rpm from 1800 down to 1600, while also delivering a 23% increase in power, and the intelligent new generation electro-hydraulic system provides on-demand flow and reduces internal losses in the hydraulic circuit. Classic Volvo features such as ECO mode and selectable work modes further contribute to outstanding fuel efficiency.

More compliance

The China IV compliant Volvo D8 engine has been tried and tested throughout the world since 2014. With technology that has been tested and enhanced for almost 10 years, this is an engine which customers can rest assured will deliver outstanding levels of quality, reliability, and efficiency.

More productivity

Get more done in the EC250 thanks to an increase in engine power and improved hydraulic performance which contributes to faster cycle times. Machine productivity is further enhanced by best-in-class stability, new motion priority functions, boom down speed control and improved jack up speed.

More control, more precision

Double your productivity with Volvo Active Control which automates boom and bucket movements, making the digging process more accurate and twice as fast. Simply set the grade from the Volvo Co-Pilot display, push the button, and get to work – all controlled using a single lever. Further unlock the full potential of your machine’s productivity with Dig Assist, powered by the 10” Volvo Co-Pilot display. Gain access to a set of smart apps, including 2D, In-Field Design, 3D software packages and On-Board Weighing, designed to optimize the digging process.

More responsiveness

With electric control joystick and full electric travel pedals, operators benefit from an improved response time. Machine controllability is enhanced further by Boom/Swing and Boom/Travel priority functions which enable operators to prioritize one function over another. Operators can also easily adjust the boom down speed, ideal for precision tasks which require optimum control.

The industry renowned Volvo ROPS cab is enhanced with a number of new features, ensuring the highest levels of operator comfort and safety.

Safety, inside and out

Operators can access the upper structure with safety and confidence thanks to the new 3-point right-hand side access. Industry renowned features such as bolted anti-slip steps, high visibility handrails and spacious, ergonomic and low-noise Volvo ROPS cab ensure the highest levels of operator comfort and safety.

Know your limits

With Volvo Active Control, operators can easily set swing fence, height limit and depth limit from the Volvo Co-Pilot. This helps to avoid contact with side obstacles, overhead obstacles such as power lines and underground hazards such as pipes and cables.

See it all

Operators benefit from outstanding visibility thanks to rear and side-view cameras. Furthermore, the optional Volvo Smart View uses front, rear and side cameras to provide a real-time, overhead view of the machine, resulting in safer machine rotation while working, especially in confined spaces.

A smoother shift

New boom and arm bouncing reduction technology reduces machine shock, resulting in a more comfortable and productive operator performance. Comfort Drive Control further helps to reduce fatigue by enabling operators to steer the machine using the joystick rollers instead of the pedals.

How you like it

Get ready for the working day in no time with customizable settings, including preferred control patterns easily selected from the monitor. New ‘long push’ functionality on the joystick allows another shortcut to be set, and with the L8 joystick operators can create a shortcut to hydraulic priority functions.

Building on generations of proven engine technology the Volvo D8M engine delivers outstanding reliability and performance.

Powered by excellence

With impressively high torque at low rpm, the new D8M Volvo engine builds on generations of proven Volvo engine technology to deliver superior reliability and performance. The engine features auto-regeneration technology, while auto-engine idle and auto-engine shutdown reduce unnecessary fuel consumption and wear. Engine durability and reliability is further enhanced by the intelligent delayed engine shutdown function, which turns the machine off when the turbo charger has cooled down to the appropriate temperature.

Less service requirements

The new electro-hydraulic system requires less hoses, therefore reducing the need for couplings, minimizing maintenance requirements and increasing reliability.

Easier UREA filling

The new splash guard on the UREA tank makes filling quicker and easier, while also reducing the risk of spillage and subsequent corrosion.

Up to the challenge

Built to deliver outstanding strength and durability, this heavy-duty production machine features a robust undercarriage with reinforced idle frame, track links and bottom rollers. Reinforced bucket linkage with steel strip, optional heavy-duty superstructure undercover and easily replaced bolt-on wear plates at the arm end ensure the excavator succeeds even on the toughest of jobsites.

We offer a wide range of training initiatives to help operators unlock the full potential of their Volvo machine.

Get the most from your machine

While reliable and efficient machines of course play a vital role in reducing costs, enhancing safety and maximizing productivity, it is ultimately the performance of the operator that really makes the difference. We offer a wide range of training initiatives to help operators unlock the full capability of their Volvo excavator.

Every part counts

Maintain productivity and machine uptime with our range of readily available, tested and approved parts – all backed by Volvo warranty. Only by using Genuine Volvo Parts, can you protect your investment, extend machine life and guarantee long-lasting performance.

Maintain performance

Stay on track with planned servicing and keep your asset covered with our range of flexible maintenance and repair options.

Machine monitoring made easy

Maximize machine uptime and reduce repair costs with the new Pulse telematics system. Choose to keep track of your machine yourself – including location, condition, reports and more – or let us take care of it with Volvo Active Care. Our Volvo Uptime Center will provide 24/7 machine monitoring, supplying weekly reports and notifying you should preventive maintenance action be required. Set timefence and geofence restrictions to ensure your machines are working where and when you need them.
