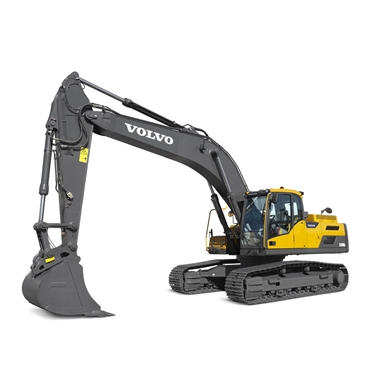

Large Crawler Excavators EC300DL

27,700 - 33,100 kg Operating weight
170 kW Gross power
0.52 - 2.02 m³ Bucket capacity

Volvo's EC300DL crawler excavator is built to increase production, reduce fuel consumption and reach new levels of efficiency. With proven, advanced technology the EC300DL offers customers a 7% - 10% increase in fuel efficiency compared to the previous model.

Download the EC300DL brochure, with all the details and specifications. (PDF, 775.2KB)

Get the most for your excavator

Technical specifications for EC300DL

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.

Operating weight	27,700 - 33,100 kg
Gross power	170 kW
...at engine speed	1,800 rpm
Bucket capacity	0.52 - 2.02 m³
Lifting capacity, along undercarriage	11,020 kg
...at reach / height	6 / 1.5 m
Max. digging reach	10,430 mm
Max. digging depth	7,050 mm
Breakout force, SAE J1179 (Normal)	164 kN
Breakout force, SAE J1179 (Boost)	179 kN
Tear out force, SAE J1179 (Normal)	143 kN
Tear out force, SAE J1179 (Boost)	156 kN
Overall width	3,190 mm
Tail swing radius	3,120 mm

Based on machine configuration: Boom 6.2m; Arm 2.75m; Shoe 600mm; CWT 5 100kg

Images for illustration purposes only. Production machines may differ in appearance and features vary between markets and models.

Download the EC300DL brochure, with all the details and specifications. (PDF, 775.2KB)

Features & Benefits

Volvo provides the right solutions throughout the entire life cycle of your machine to lower total cost of ownership.

adding value to your business

Being a Volvo customer means having a complete set of services at your fingertips. Volvo can offer you a long-term partnership, protect your revenue and provide a full range of customer solutions using high quality parts, delivered by passionate people. Volvo is committed to the positive return of your investment.

Benefit from increased power, digging force and faster cycle times for more productivity.

Powerful performance

Operate with increased power and digging force in Volvo’s EC250DL and EC300DL. With faster cycle times and greater productivity, these machines will help you to get the job done faster. Whether you work in the quarry, road construction, site preparation or any other application, you’ll experience high performance from these powerful machines.

Large doors and engine hood provide easy service access. Centralized filters and greasing points allow regular checks to be done faster.

Straightforward servicing

With built in serviceability, the EC250DL and EC300DL help you to get the most out of each working day. Volvo engineers have designed these machines to make maintenance easy – with safe and easy access to centralized filters and grouped greasing points.

All-around visibility, safety, comfort and easy to access controls are at the center of Volvo’s operator environment.

The Volvo experience

At Volvo we know that when operators are comfortable they experience less fatigue and work more productively. That’s why the new, modern styling of the DL-series cab provides superior visibility, a safe and spacious working environment and easy to access controls – right where you’d want them. Trust Volvo to think of everything and increase your productivity.

Volvo’s unique ECO mode contributes to up to 5% of the machine’s total improved fuel efficiency without any loss of performance.

Save fuel with Volvo

If you’re looking for a fuel efficient and productive machine that will increase your competitive edge look no further than Volvo’s latest offering. With proven, advanced technology the EC250DL and EC300DL offer customers a 7% - 10% increase in fuel efficiency compared to the previous model. Increase production, reduce fuel consumption and reach new levels of efficiency with Volvo.

Keep your Volvo a Volvo!

Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.
