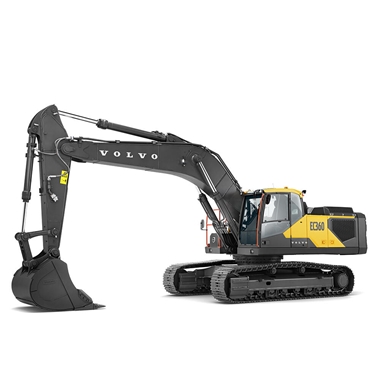

New CN4 Excavator EC360 CN4

  • 37,100 kg Operating weight
  • 220 kW Gross power
  • 1 - 2.53 m³ Bucket capacity
The EC360 is designed to deliver outstanding versatility, efficiency and productivity, making it the perfect partner for general construction projects. The EC360 features the very latest in engineering excellence, including China IV compliant D8 Volvo engine and electro-hydraulic control system.... Read more
Contact us

36-tonnes of excellence

The EC360 is designed to deliver outstanding versatility, efficiency and productivity, making it the perfect partner for general construction projects. The EC360 features the very latest in engineering excellence, including China IV compliant D8 Volvo engine and electro-hydraulic control system. Operators can work in comfort and control thanks to a host of features designed to boost operator efficiency and performance, along with the high levels of safety and uptime synonymous with Volvo.

Technical specifications for EC360 CN4

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.
Operating weight 37,100 kg
Gross power 220 kW
...at engine speed 1,600 rpm
Bucket capacity 1 - 2.53
Lifting capacity, along undercarriage 10,220 kg
...at reach / height 6 / 1.5 m
Max. digging reach 10.852 mm
Max. digging depth 7,167 mm
Breakout force, SAE J1179 (Normal) 177 kN
Breakout force, SAE J1179 (Boost) 192 kN
Tear out force, SAE J1179 (Normal) 177 kN
Tear out force, SAE J1179 (Boost) 192 kN
Overall width 3,190 mm
Tail swing radius 3,585 mm
Based on machine configuration: Long crawler, Boom 6.45 m; Arm 2.85 m; Shoe 600 mm; CWT 7 000 kg
Images for illustration purposes only. Production machines may differ in appearance and features vary between markets and models.
Download the EC360 CN4 brochure, with all the details and specifications. (PDF, 758.7KB)

Features & Benefits

Built to perform The EC360 is a machine which delivers performance, efficiency and maximum profitability in general construction applications

Built to perform

The EC360 is a crawler excavator which combines quality with exceptional value. The result is a machine which delivers performance, efficiency and maximum profitability in general construction applications. What’s more, bucket size has been increased by 25%, giving your productivity a massive boost.

Proven engine technology

The China IV compliant Volvo engine has been tried and tested throughout the world since 2014. With technology that has been proven and enhanced for almost 10 years, this is an engine which customers can rest assured will deliver outstanding levels of quality, reliability, and efficiency.

Adapt to the job

Operators can easily select and adjust a number of functions depending on personal preferences and the task at hand, including Boom/Swing and Boom/Travel priority which enables to prioritize one function over another. Operators can also easily adjust the boom down speed, ideal for precision tasks which require optimum control.

Productivity up, fuel down

The EC360 combines outstanding levels of productivity with a 10% increase in fuel efficiency. The next generation electrohydraulic system provides on-demand flow and reduces internal losses in the hydraulic circuit, while the Volvo D8M engine features a rated power of 1600rpm and delivers impressively high torque at low rpm. Auto-engine idle and auto-engine shutdown further reduce unnecessary fuel consumption.

Do it all

Take on any job with a range of factory-delivered attachments, such as Volvo buckets and breakers. Volvo Attachments are perfectly matched to your machine, helping to get the job done with optimum efficiency, productivity and performance.

A smoother shift Boom and arm bouncing reduction technology combined with the optional Comfort Drive Control help facilitate a comfortable and productive operator performance

A smoother shift

Boom and arm bouncing reduction technology reduces machine shock, resulting in a more comfortable and productive operator performance. Optional Comfort Drive Control further helps to reduce fatigue by enabling operators to steer the machine using the L8 joystick rollers instead of the pedals.

How you like it

Get ready for the working day in no time with customizable settings, including preferred control patterns and joystick responsiveness easily selected from the monitor. A ‘long push’ function on the joystick allows another shortcut to be set, and with the L8 joystick operators can create a shortcut to hydraulic priority functions.

Industry-renowned cab

Step inside the best cab on the market. The ROPS cab exceeds industry standards for this class of machine, and with low noise and low vibration, operators will experience the ultimate in comfort. Already boasting best-in-class visibility, the optional Volvo Smart View enhances visibility even more.

More precision

Unlock the full potential of your machine’s productivity with Dig Assist, powered by the 10” Volvo Co-Pilot display. Gain access to a set of smart apps, including 2D, In-Field Design, 3D software packages, On-Board Weighing and Volvo Active Control, designed to optimize the digging process.

More control

The working day just got easier with Volvo Active Control functions, including automated boom and bucket movements, making the digging process more accurate and twice as fast. Simply set the grade from the Volvo Co-Pilot display, push the button and get to work – all controlled using a single lever.

Easy as 1, 2, 3 Reach the upper structure with safety and confidence thanks to 3-point right-hand side access

Easy as 1, 2, 3

Reach the upper structure with safety and confidence thanks to 3-point right-hand side access, also providing access to the handily located UREA tank. A splash guard on the UREA tank makes filling quicker and easier, reducing the risk of spillage and subsequent corrosion.

Get around safely

Industry renowned features such as bolted anti-slip plates, high visibility handrails and guardrails ensure the highest levels of safety when negotiating the machine. For further convenience, the optional foldable cab entrance step and side walkways easily fold away to enable easy transportation.

Industry-leading visibility

The low machine hood design contributes to best-in-class visibility to the side and rear of the machine from the operator’s seat. This direct visibility is complemented by rear and side view cameras.

Volvo Smart View

The optional Volvo Smart View uses front, rear and side cameras to provide a real-time, overhead view of the machine, resulting in safer machine rotation while working, especially in confined spaces.

Know your limits

With Volvo Active Control, operators can easily set swing fence, height limit and depth limit from the Volvo Co-Pilot. This helps to avoid contact with side obstacles, overhead obstacles such as power lines and underground hazards such as pipes and cables.

Simple to service Maintenance is quicker and easier thanks to the electro-hydraulic system, combined with easy service access for maximum uptime.

Simple to service

Maintenance is quicker and easier thanks to the electro-hydraulic system which requires less hoses. This reduces the need for couplings, which in turn minimizes maintenance requirements and increases reliability. Grouped service points accessed from the ground level further ensure the time and cost spent on maintenance is kept to a minimum.

Durable by design

Achieve optimum results even in the toughest working conditions thanks to the robust design of the crawler excavator, including undercover protection and reinforced doors and hinges.

Engine protection

Keep your turbocharger working in top condition for longer with delayed engine shutdown. To avoid overheating, the intelligent function turns the machine off when the turbo charger has cooled down to the appropriate temperature – and can be set to activate automatically by the operator.

Machine monitoring made easy

Maximize machine uptime and reduce repair costs with the CareTrack telematic system. Choose to keep track of your machine yourself or let us take care of it with Volvo Active Care. Our Volvo Uptime Center will provide 24/7 machine monitoring, supplying weekly reports and notifying you should preventive maintenance action be required.

Keeping you moving

Maintain productivity and machine uptime with our range of widely available, tested and approved Genuine Volvo Parts – all backed by Volvo warranty. Your Volvo dealer can help you stay on track, offering flexible maintenance and repair options, as well as planned servicing, to extend the life of your excavator.
