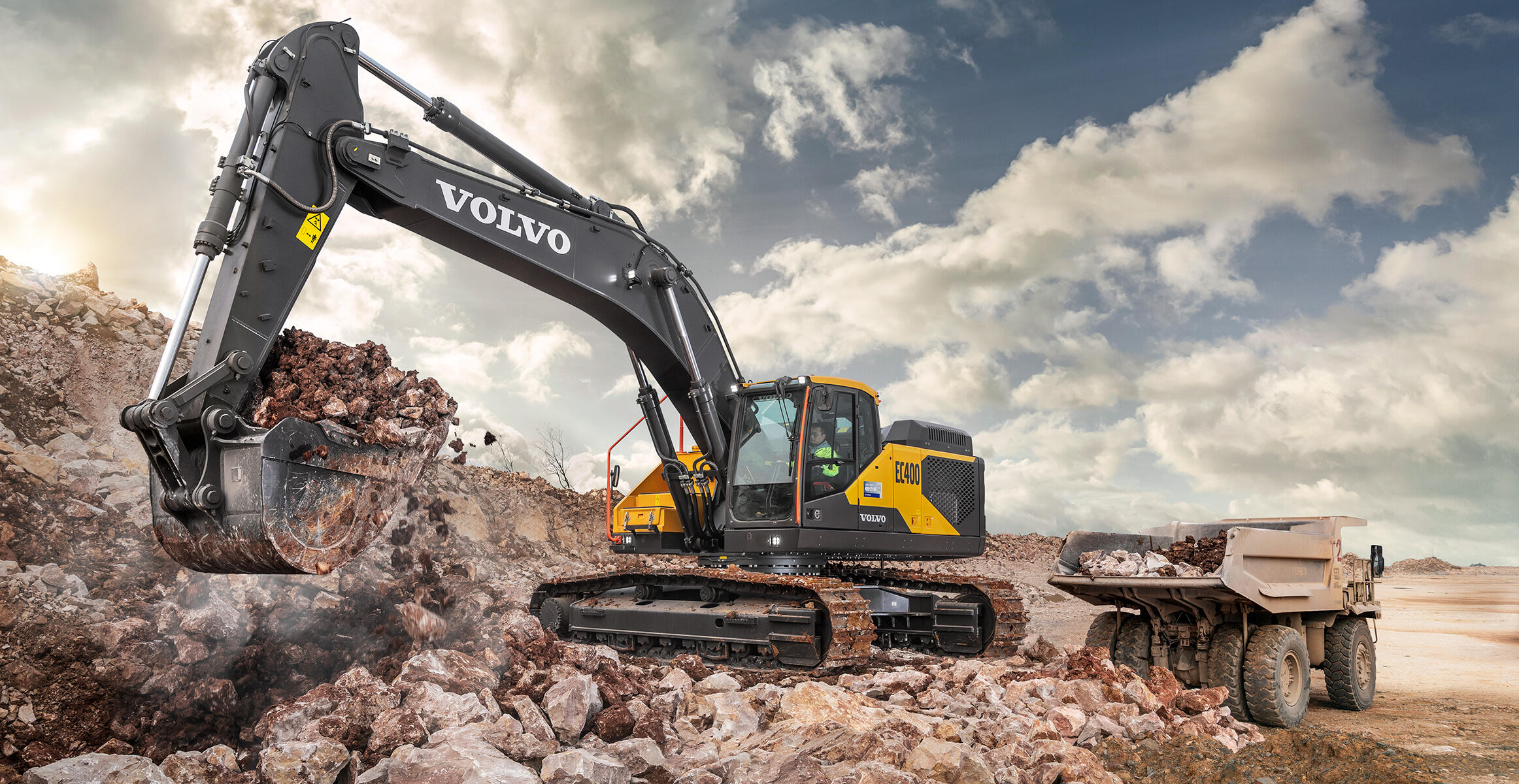

New CN4 Excavator
EC400 CN4
-
40,170 - 42,800 kg Operating weight -
230 kW Gross power -
1.35 - 3 m³ Bucket capacity
Technical specifications for EC400 CN4
| Operating weight | 40,170 - 42,800 kg |
|---|---|
| Gross power | 230 kW |
| ...at engine speed | 1,700 rpm |
| Bucket capacity | 1.35 - 3 m³ |
| Lifting capacity, along undercarriage | 15,930 kg |
| ...at reach / height | 6 / 1.5 m |
| Max. digging reach | 10,695 mm |
| Max. digging depth | 6,990 mm |
| Breakout force, SAE J1179 (Normal) | 198 kN |
| Breakout force, SAE J1179 (Boost) | 215 kN |
| Tear out force, SAE J1179 (Normal) | 196 kN |
| Tear out force, SAE J1179 (Boost) | 213 kN |
| Overall width | 3,340 mm |
| Tail swing radius | 3,600 mm |
Features & Benefits

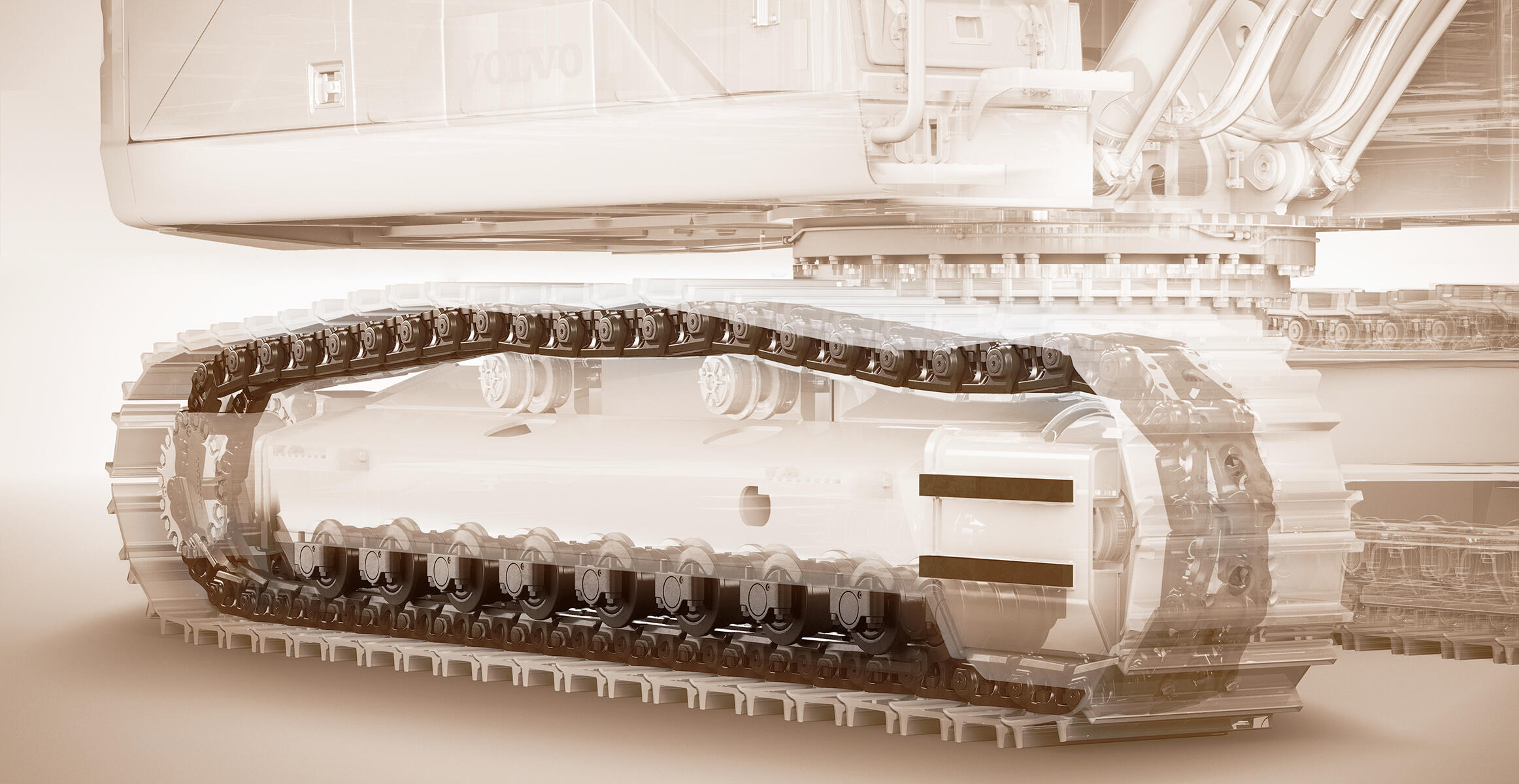

Quality by design
The EC400 introduces the proven technology of the Volvo D13 engine and is a machine designed to deliver the highest levels of quality. Durable by design, easy to service and packed with safety features, get ready for unequalled excavator quality.

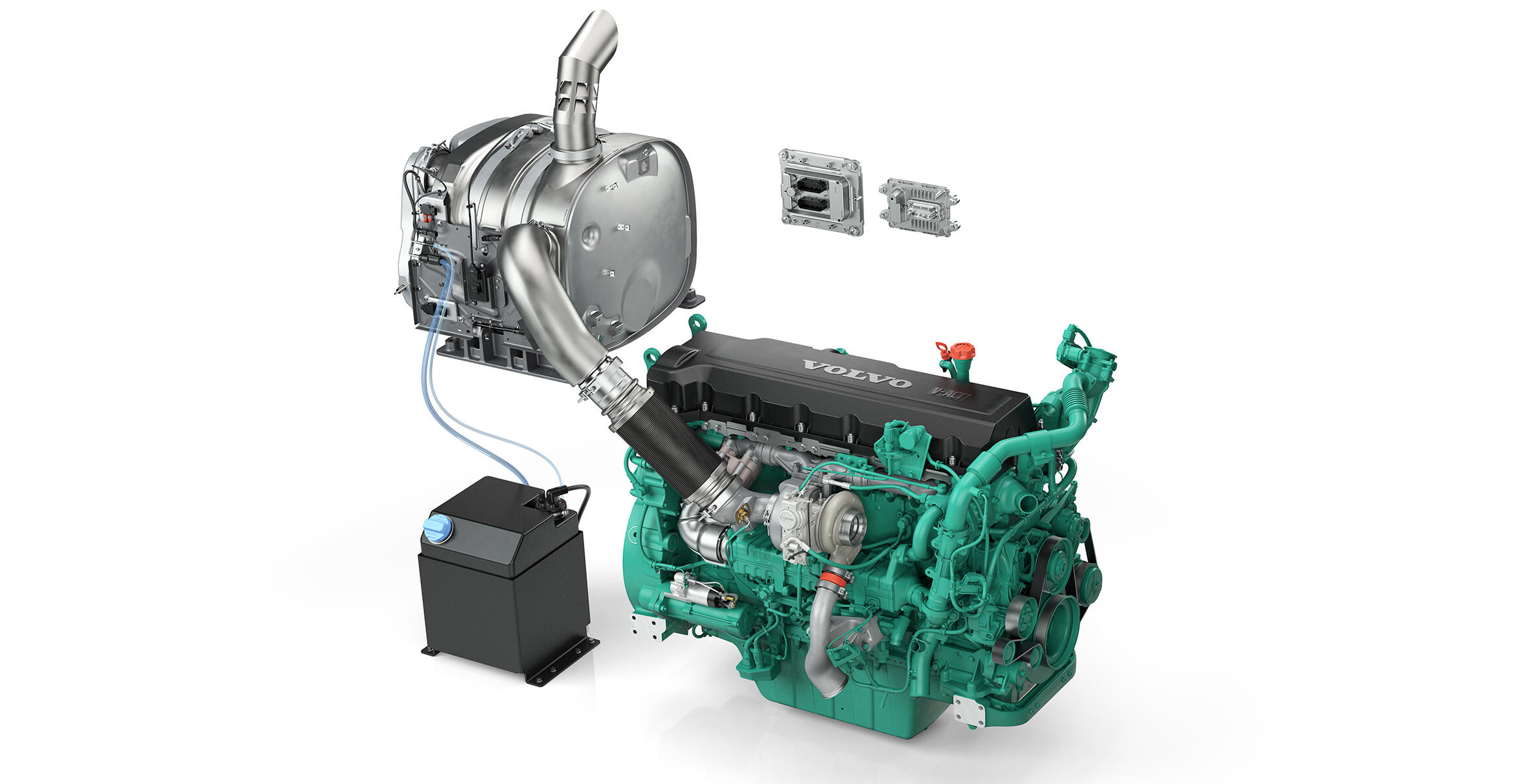

Proven engine technology
The China IV compliant Volvo D13 engine has been tried and tested throughout the world since 2014. With technology that has been tested and enhanced for almost 10 years, this is an engine which customers can rest assured will deliver outstanding levels of quality, reliability, and efficiency.

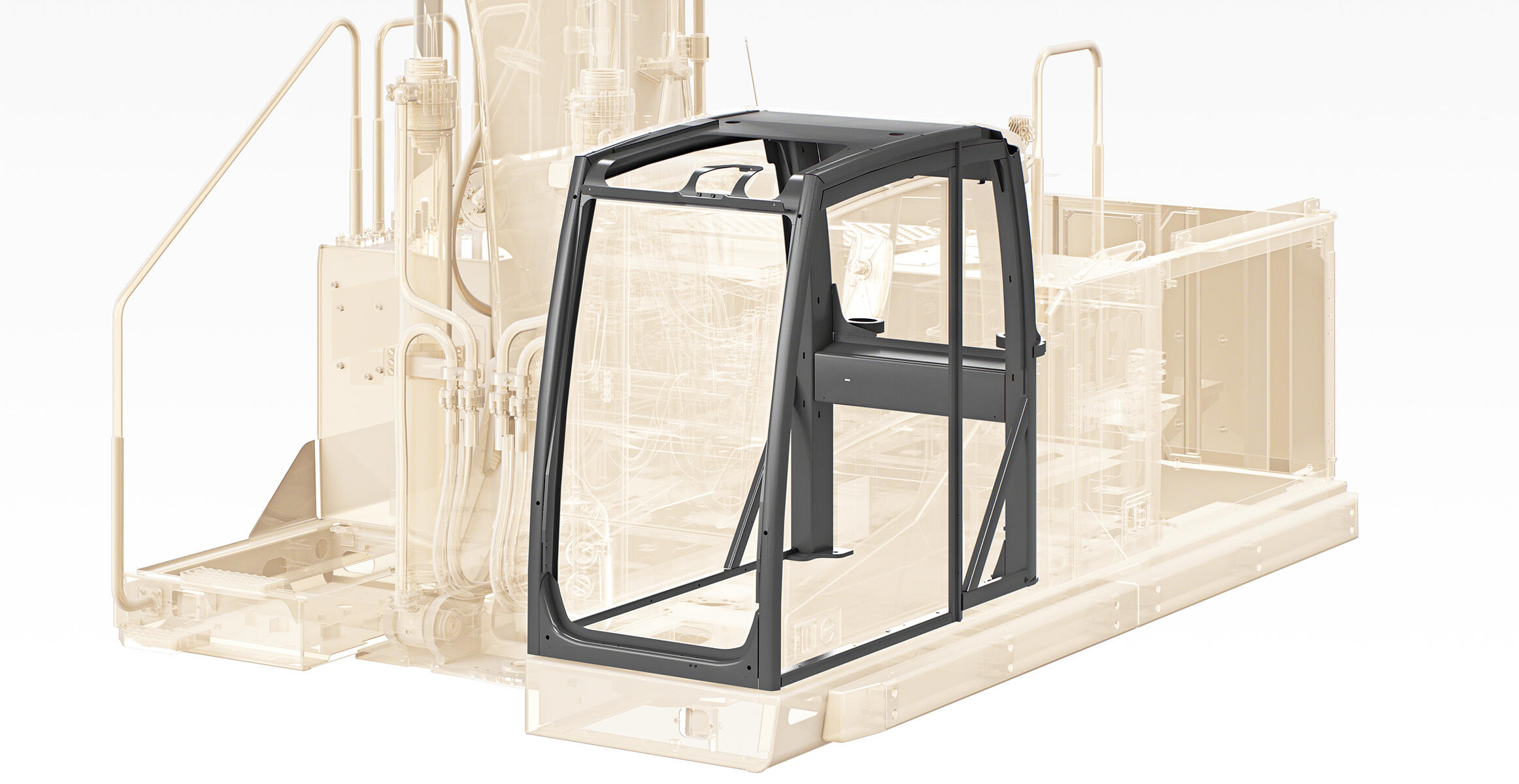

Safety, inside and out
Anti-slip plates and handrails provide safe and easy access to the ROPS-certified cab. Once inside the cab, the rear-view camera contributes to outstanding overall visibility and the audible seat belt alarm ensures the operator is correctly and safely wearing their seat belt.

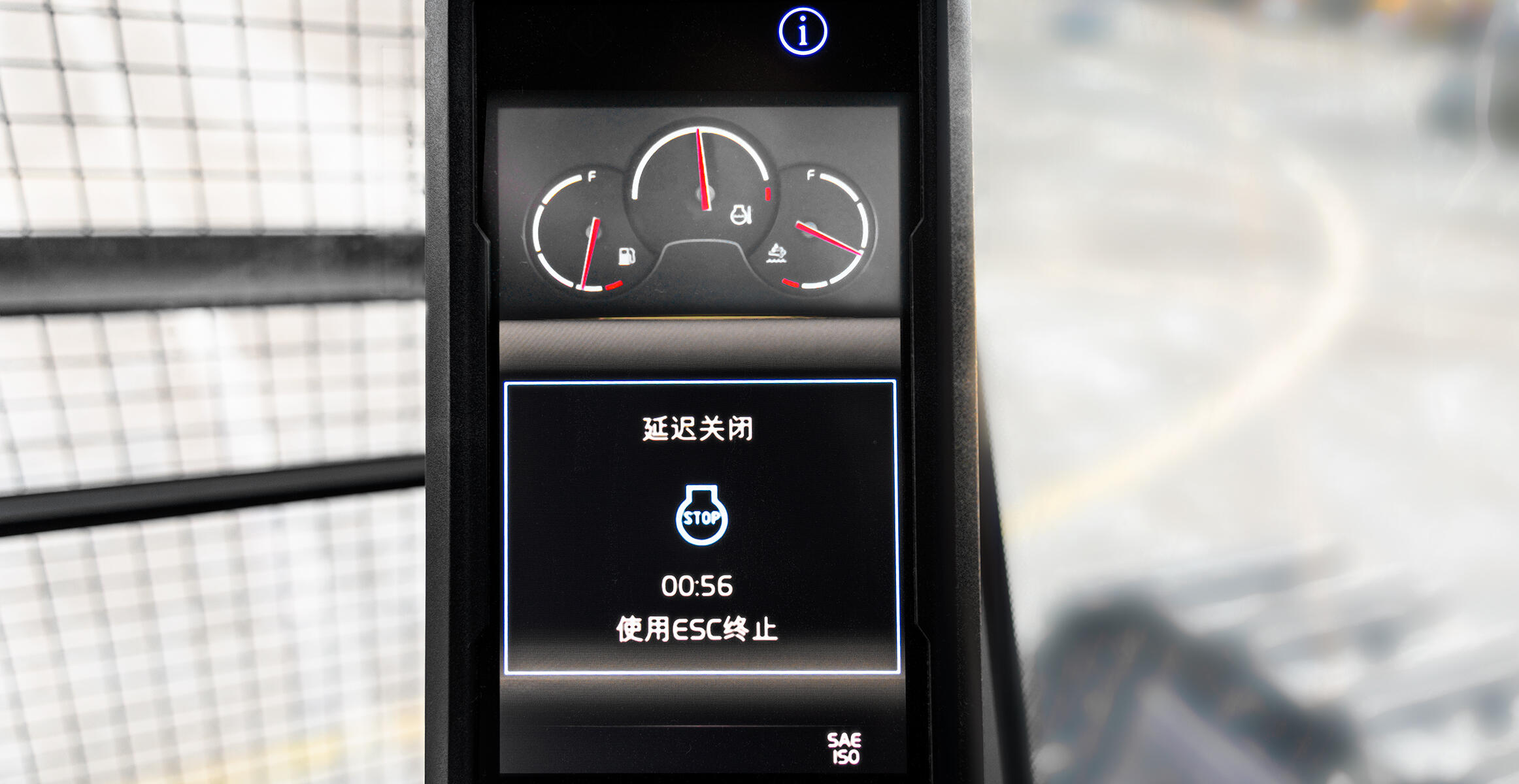

Engine protection
Keep your turbocharger working in top condition for longer with the optional delayed engine shutdown. To avoid overheating, the intelligent function turns the machine off when the turbo charger has cooled down to the appropriate temperature – and can be set to activate automatically by the operator.

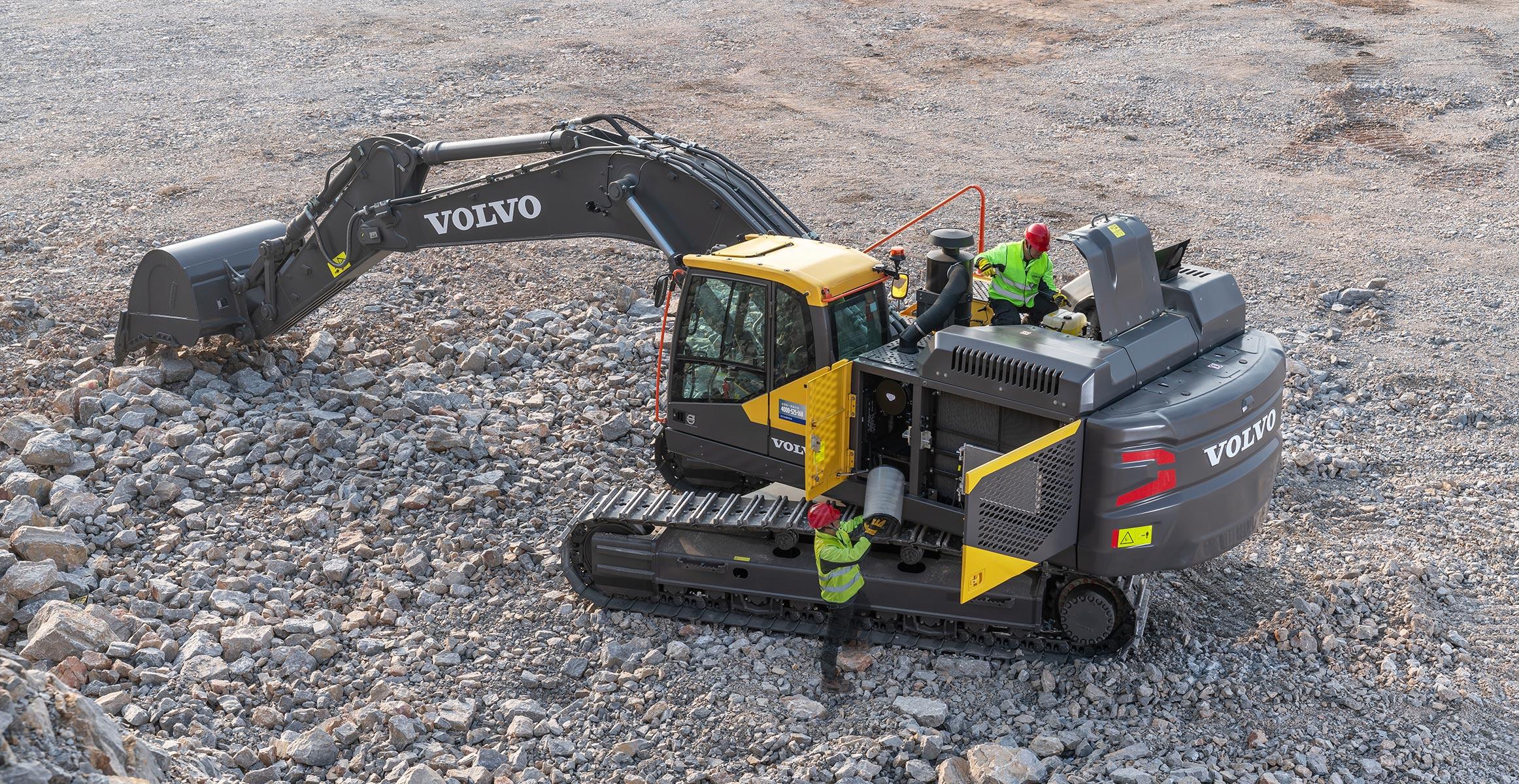

Service with speed
Quick and easy servicing helps keep uptime to a maximum, including grouped filters and greasing points. The single module cooler is also accessed with ease from the ground level simply by opening the side door. The radiator, charged air cooler and hydraulic oil cooler are situated side-by-side on a single layer to maximize efficiency, reduce blockages and aid cleaning.
A productivity boost
The larger bucket on the EC400 allows you to move more with every bucket, resulting in a 16% increase productivity.

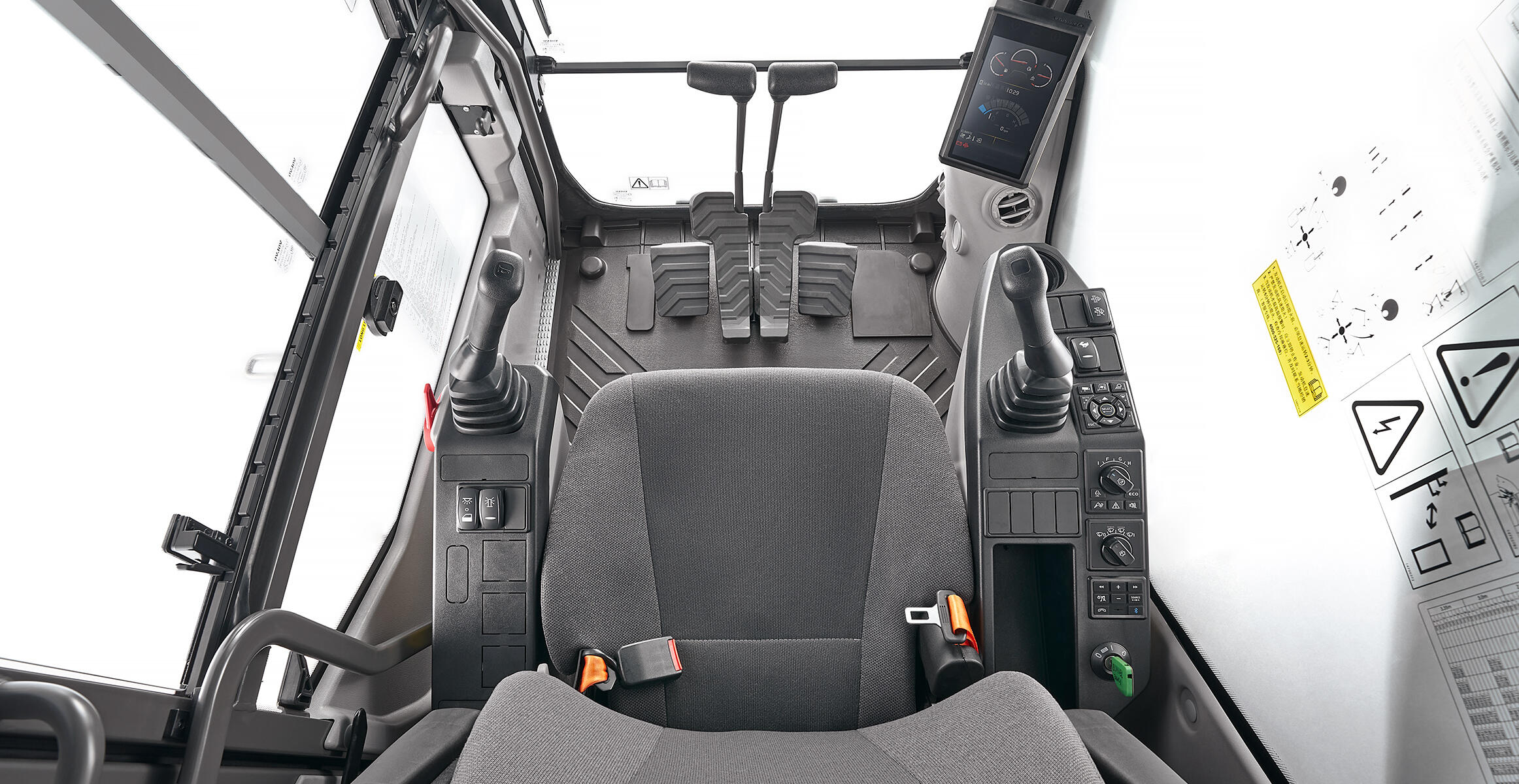

Industry leading cab
Step inside the best cab on the market. With low noise, low vibration and best-in-class visibility, operators will experience the ultimate in comfort and productivity inside the industry-renowned Volvo Care Cab. A convenient cab layout, seat with heating function and ergonomic controls add to the unrivalled operator environment, all contributing towards an enhanced operator performance.

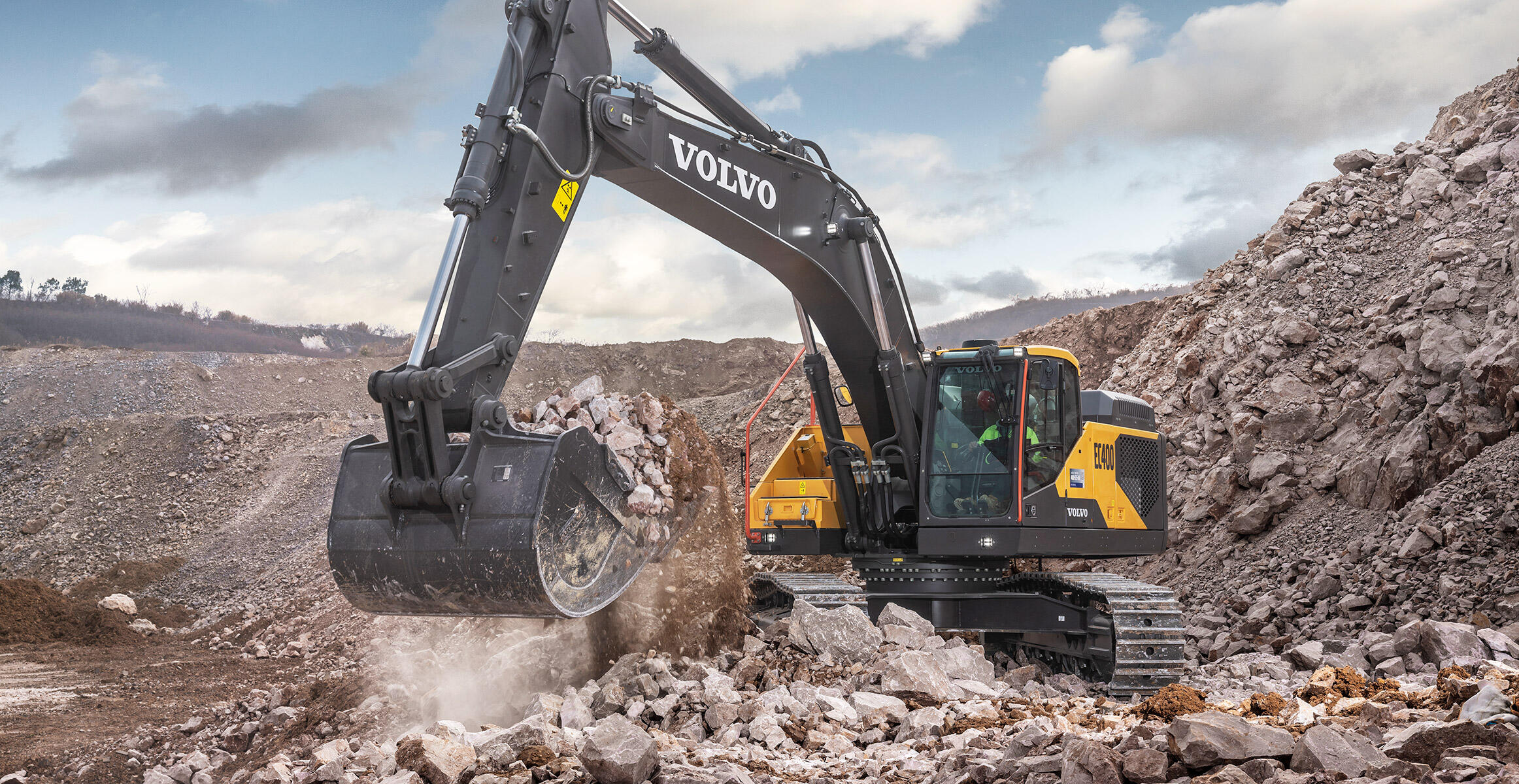

Proven power
With impressively high torque at low rpm, the EC400 builds on generations of proven Volvo engine technology to deliver superior reliability and performance.

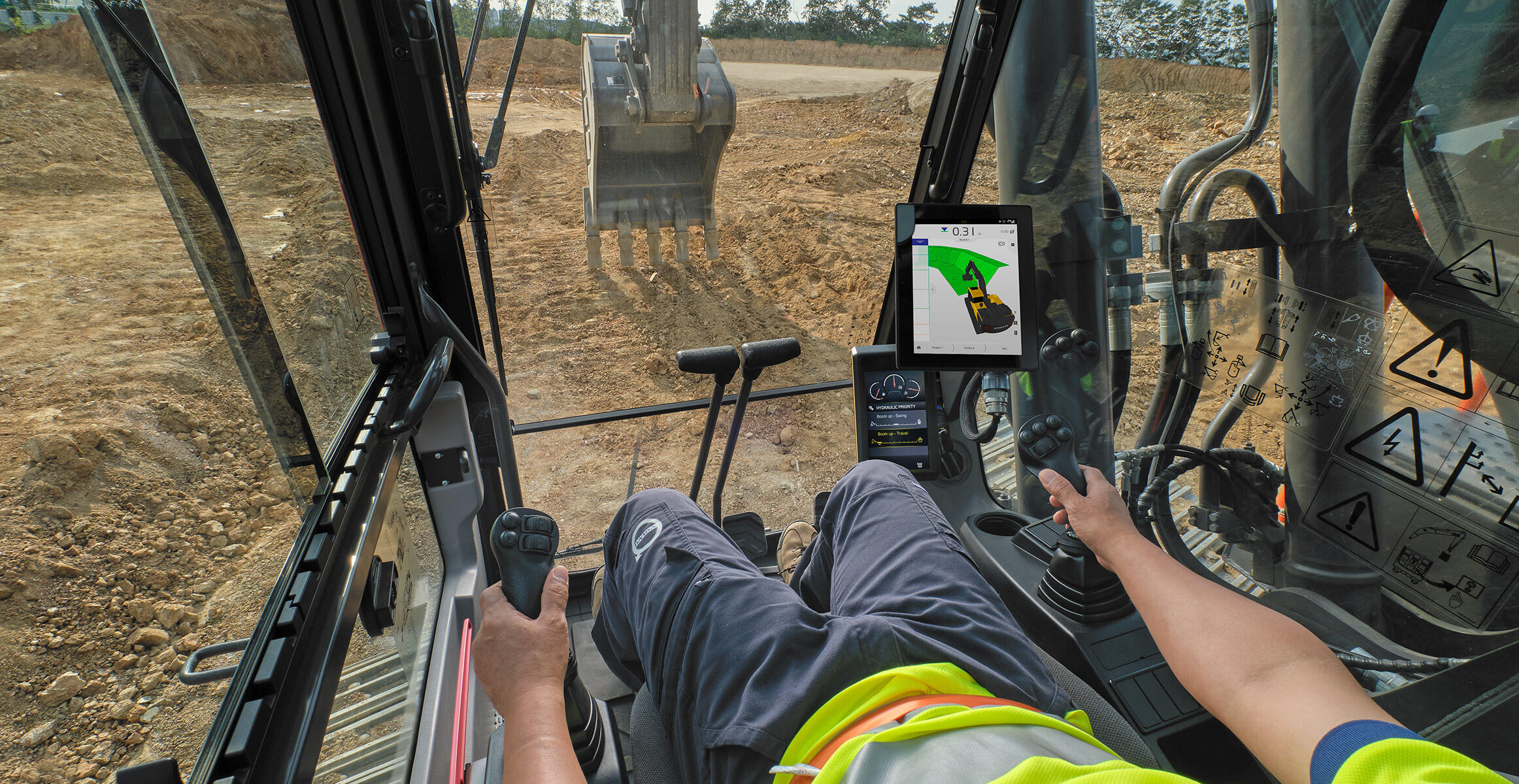

Dig Assist
Unlock the full potential of your machine’s productivity with Dig Assist, powered by the 10” Volvo Co-Pilot display. Gain access to a set of smart apps designed to optimize the digging process, including 2D, 3D, In Field Design and On-Board Weighing.
Cleaning air gun
Particularly useful when working in dusty environments, this feature provides an air nozzle to clean inside the cab, as well as other areas, for operator comfort and easy maintenance.

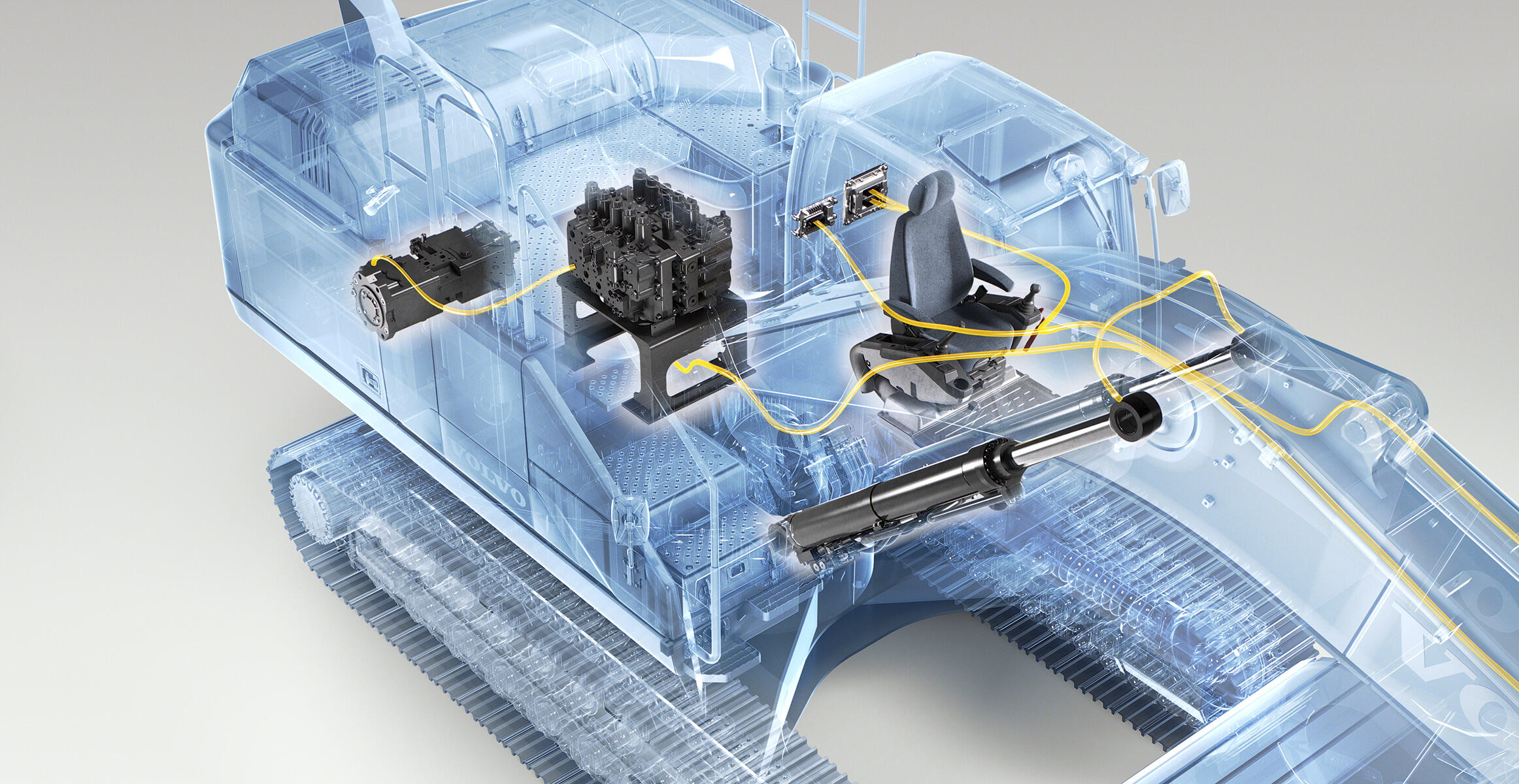

Positive improvement
The new generation EC400 delivers up to 10% more fuel efficiency compared to the previous generation. Features such as ECO mode plus the new generation electro-hydraulic system (positive), which works by reducing internal losses positively contribute to this fuel efficiency improvement.

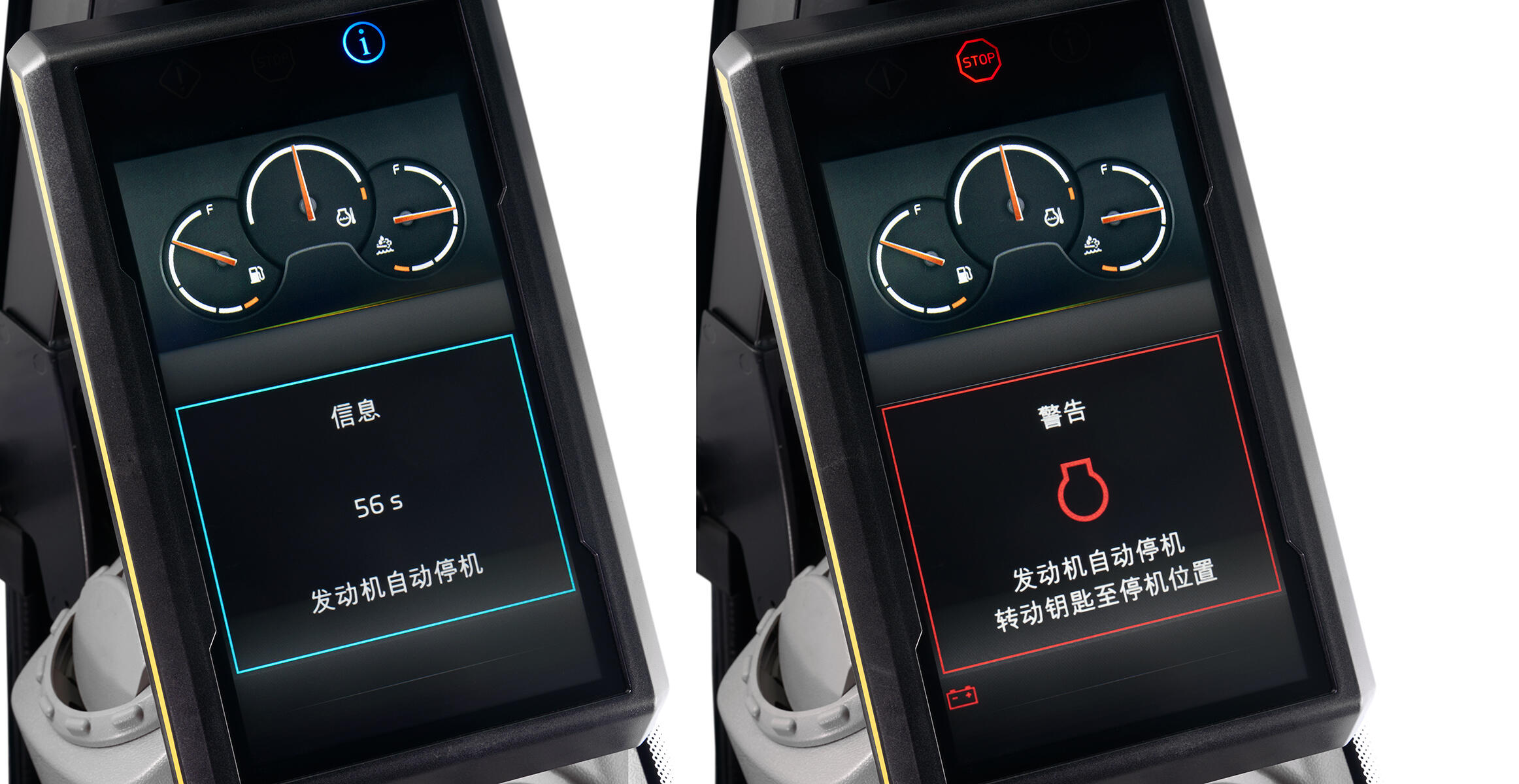

Make it count
Make every drop of fuel count with intelligent engine features, such as automatic engine idle and auto engine shutdown, which eliminate unnecessary fuel consumption, wear, lowering operating costs and reducing environmental impact.

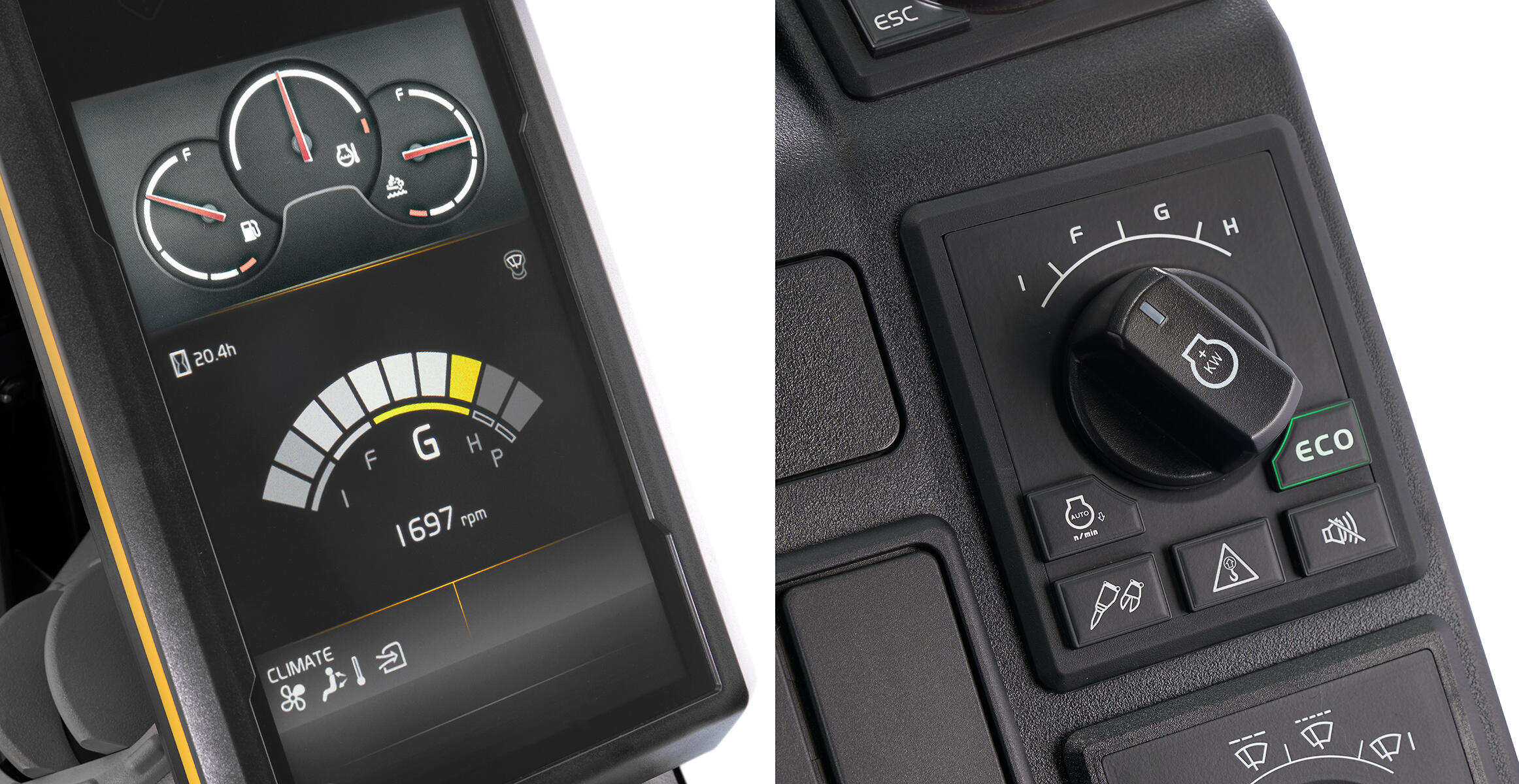

The best mode for the job
Unique Volvo technology incorporates work modes within the throttle control, for optimum performance. When the operator selects a work mode – I (Idle), F (Fine), G (General), H (Heavy) and P (Power) – the rpm is already set for maximum efficiency.

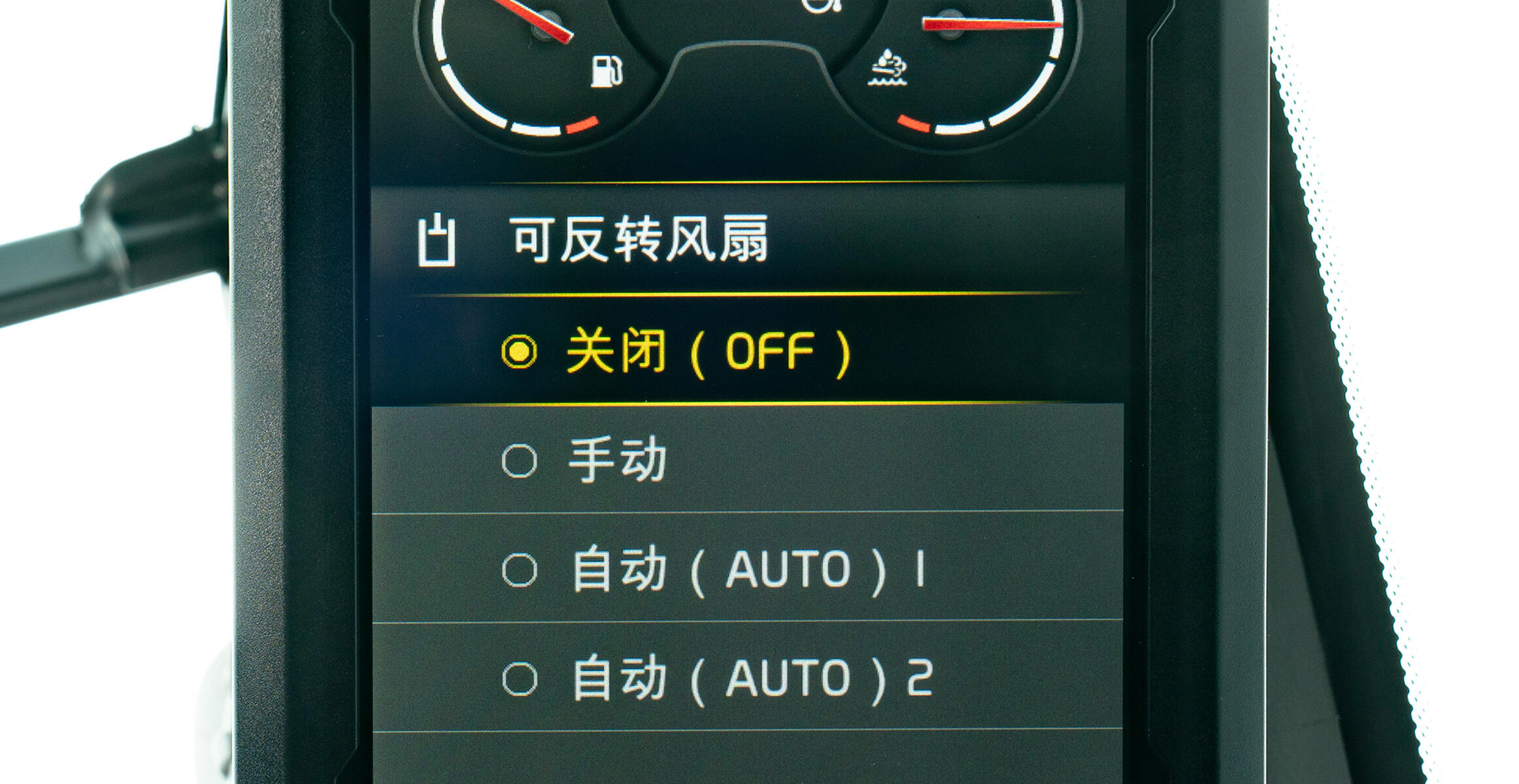

Stay cool
A reversible hydraulically-driven, electronically controlled cooling fan regulates the temperature of vital components, securing long-lasting performance. The fan will automatically activate only when required – minimizing noise and fuel consumption. The reverse functionality blows air in the opposite direction, to enable self-cleaning.

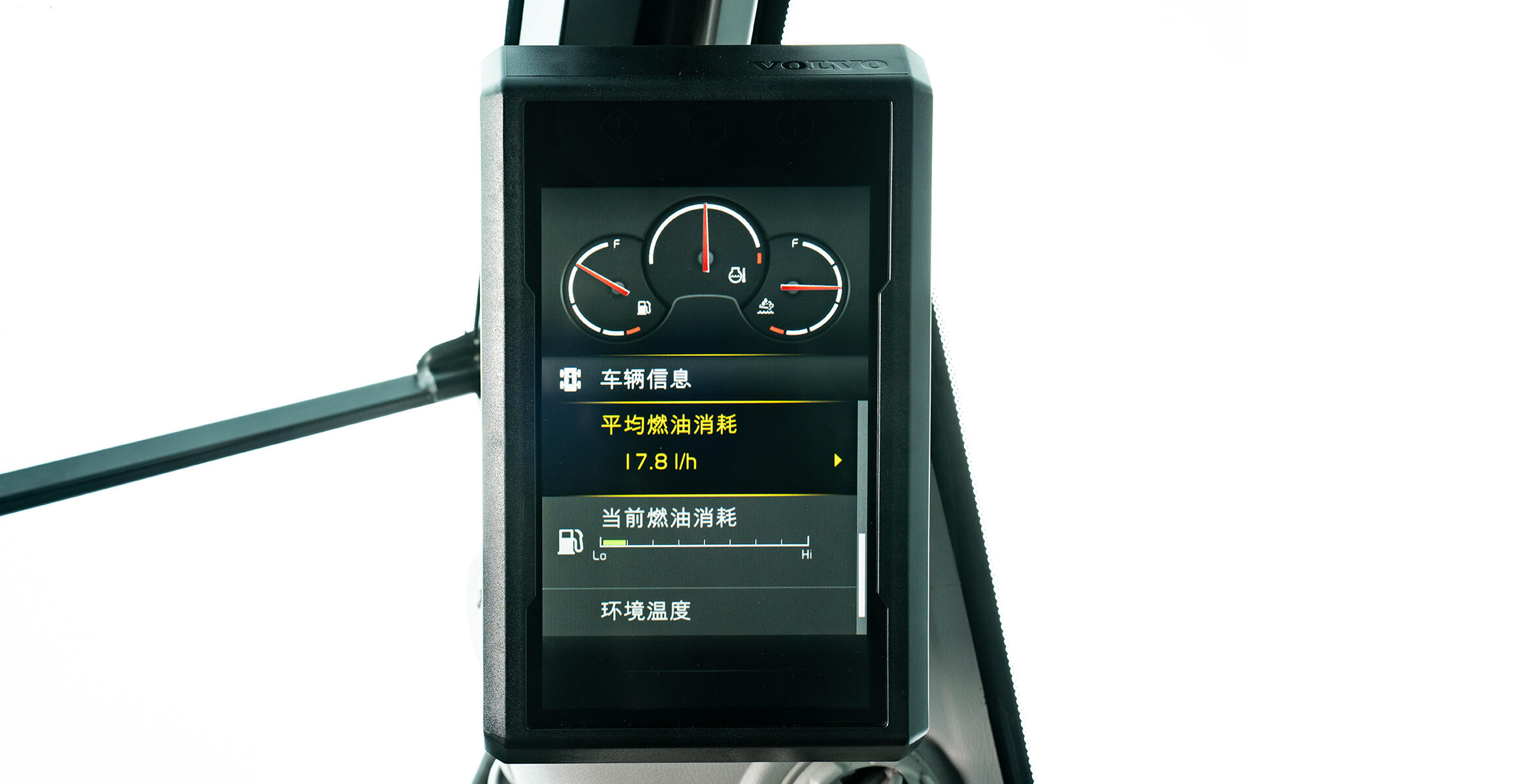

Stay in the know
Machine features combine with Volvo Services to help monitor fuel usage and keep operating costs to a minimum. Stay in the know with the fuel gauge display, which provides visual information on both real-time and average fuel consumption. Opt for the Fuel Efficiency Report to get clear insights into the fuel performance of a fleet, site or individual machine, helping to identify areas for fuel efficiency improvements.
-
