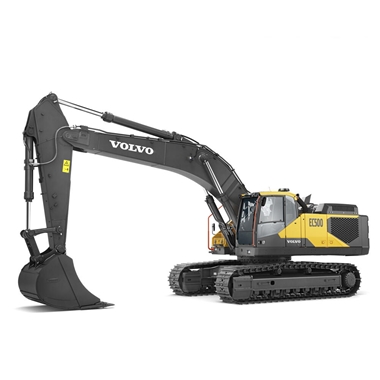

EC500 CN4 | Excavators | Overview | Volvo Construction Equipment

Operating weight	52,100 - 52,200 kg
Gross power	312 kW
...at engine speed	1,800 rpm
Bucket capacity	1.55 - 3.5 m³
Lifting capacity, along undercarriage	18,050 kg
...at reach / height	6 / 1.5 m
Max. digging reach	11,294 mm
Max. digging depth	7,036 mm
Breakout force, SAE J1179 (Normal)	253 kN
Breakout force, SAE J1179 (Boost)	275 kN
Tear out force, SAE J1179 (Normal)	205 kN
Tear out force, SAE J1179 (Boost)	224 kN
Overall width	3,340 mm
Tail swing radius	3,880 mm

Features & Benefits

A host of efficiency improving features deliver 5% more fuel efficiency compared to the previous generation.

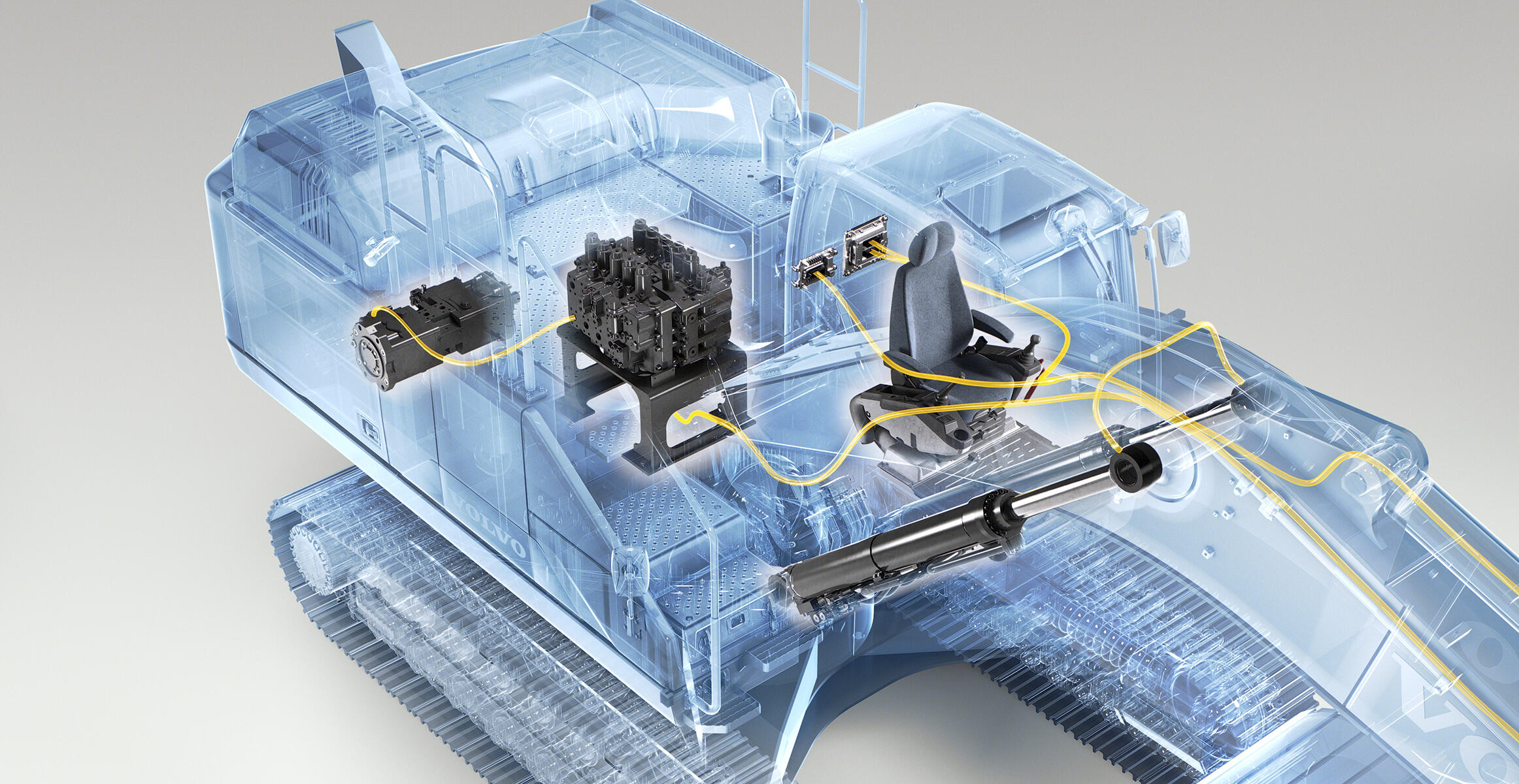

Positive improvement

The new generation EC500 delivers up to 5% more fuel efficiency compared to the previous generation. Features such as ECO mode plus the new generation electro-hydraulic system (positive), which works by reducing internal losses positively contribute to this fuel efficiency improvement.

Make it count

Make every drop of fuel count with intelligent engine features, such as automatic engine idle and auto engine shutdown, which eliminate unnecessary fuel consumption, wear, lowering operating costs and reducing environmental impact.

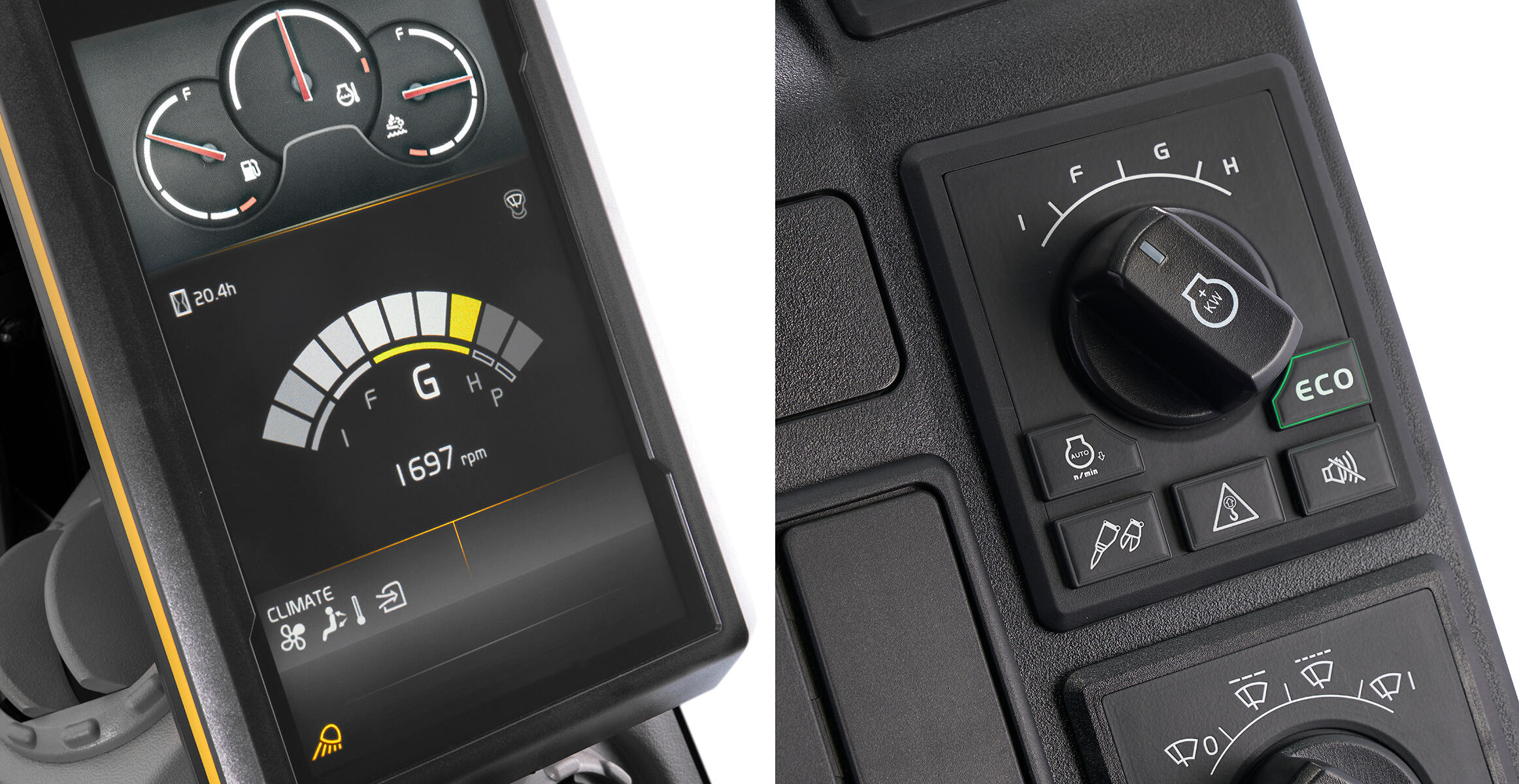

The best mode for the job

Unique Volvo technology incorporates work modes within the throttle control, for optimum performance. When the operator selects a work mode – I (Idle), F (Fine), G (General), H (Heavy) and P (Power) – the rpm is already set for maximum efficiency.

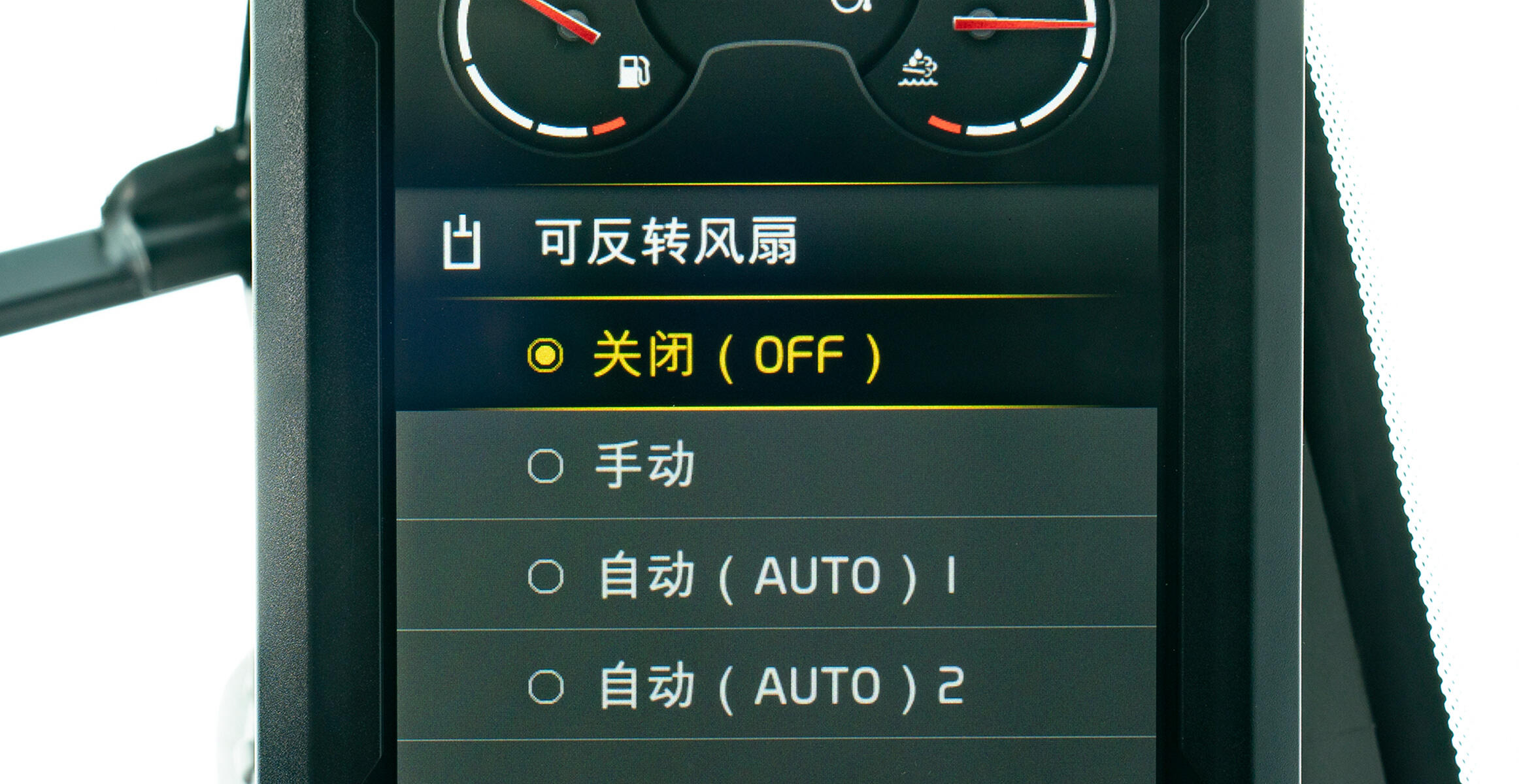

Stay cool

A reversible hydraulically-driven, electronically controlled cooling fan regulates the temperature of vital components, securing long-lasting performance. The fan will automatically activate only when required – minimizing noise and fuel consumption. The reverse functionality blows air in the opposite direction, to enable self-cleaning.

Stay in the know

Machine features combine with Volvo Services to help monitor fuel usage and keep operating costs to a minimum. Stay in the know with the fuel gauge display, which provides visual information on both real-time and average fuel consumption. Opt for the Fuel Efficiency Report to get clear insights into the fuel performance of a fleet, site or individual machine, helping to identify areas for fuel efficiency improvements.

The larger bucket results in 16% more productivity, along with a 100mm longer undercarriage for outstanding stability.

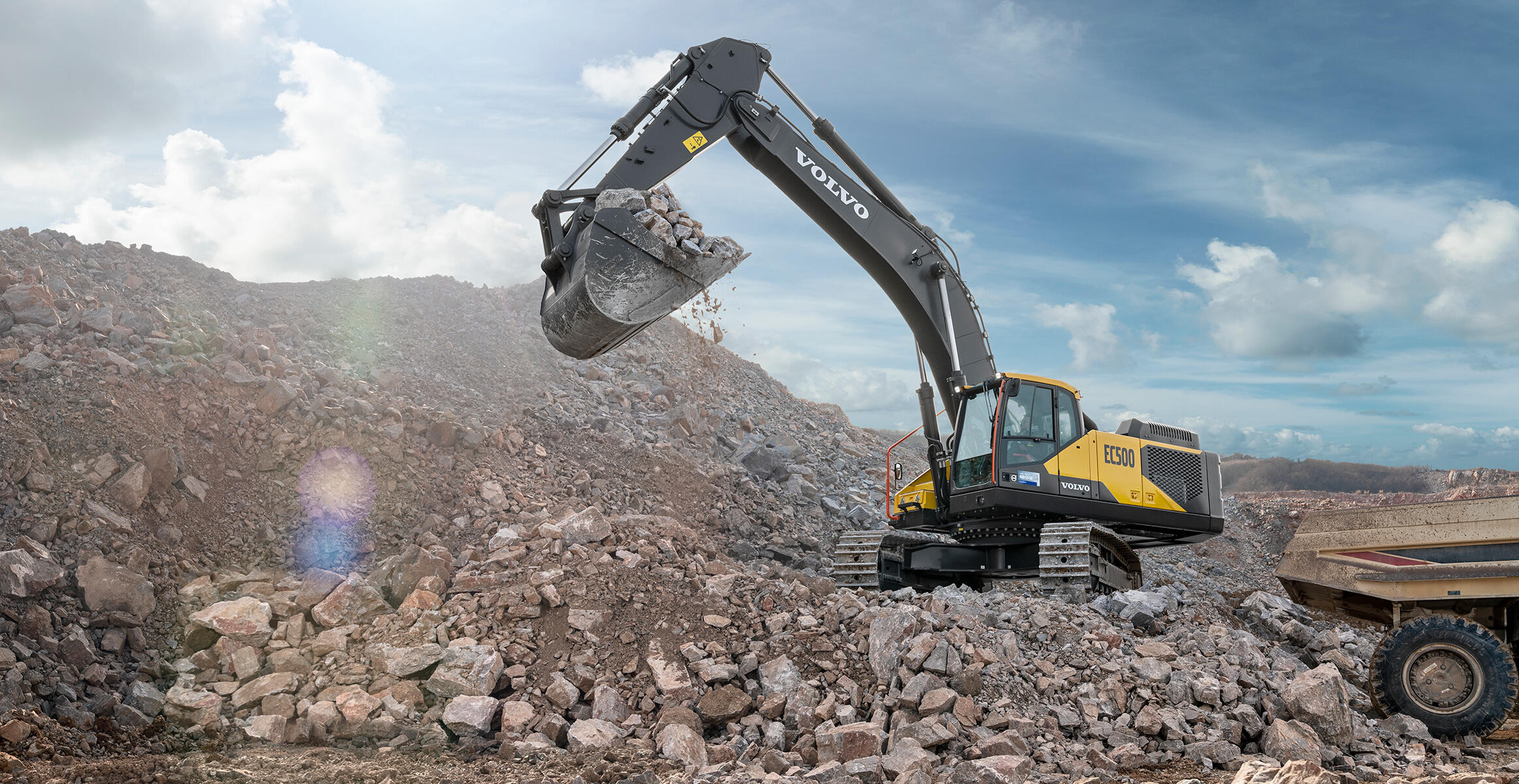

A productivity boost

The larger bucket on the EC500 allows you to move more with every bucket, resulting in a 16% increase productivity. Dig, lift and swing with confidence and control thanks to a 100mm longer undercarriage, providing rock-solid machine stability.

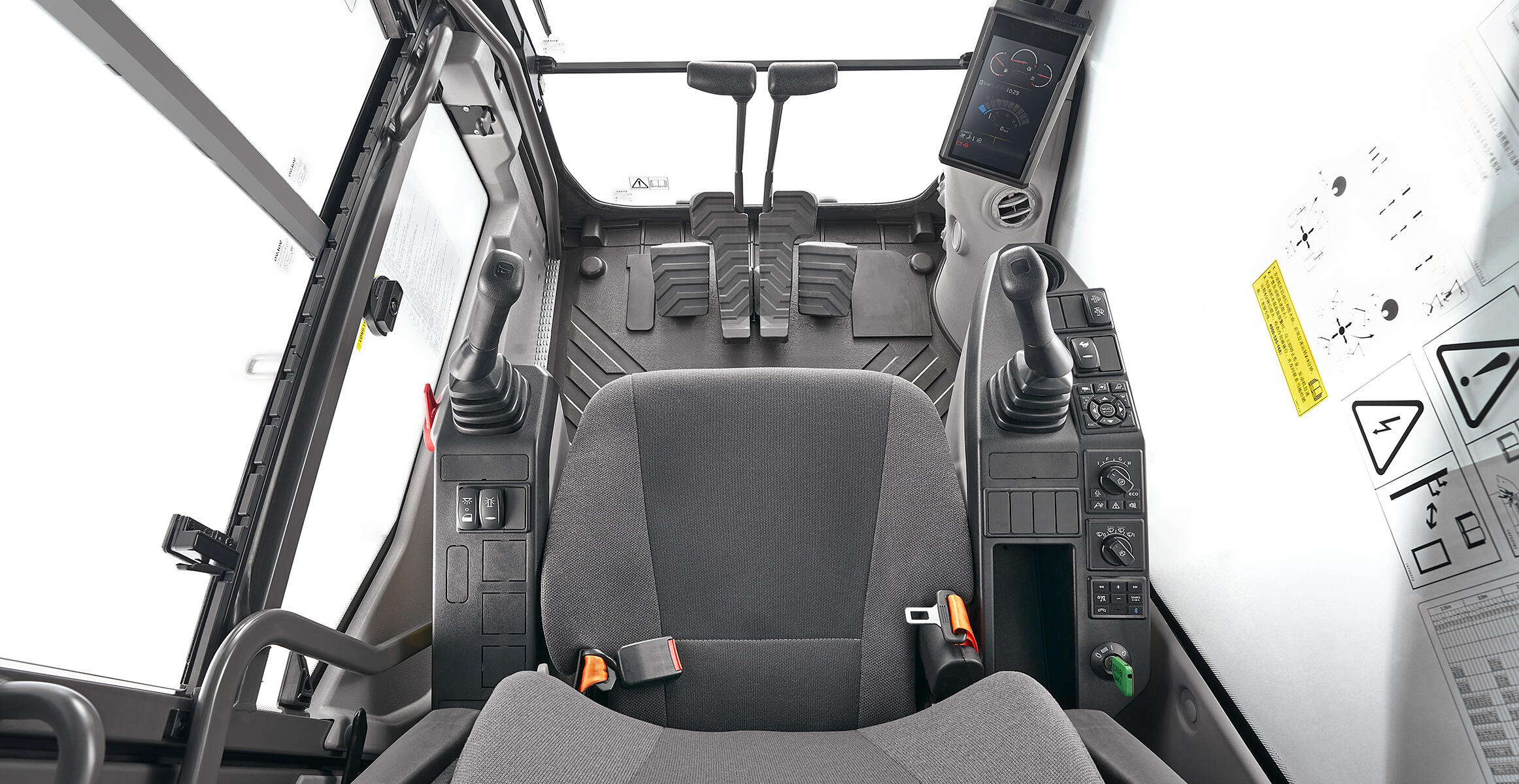

Industry leading cab

Step inside the best cab on the market. With low noise, low vibration and best-in-class visibility, operators will experience the ultimate in comfort and productivity inside the industry-renowned Volvo Care Cab. A convenient cab layout, seat with heating function and ergonomic controls add to the unrivalled operator environment, all contributing towards an enhanced operator performance.

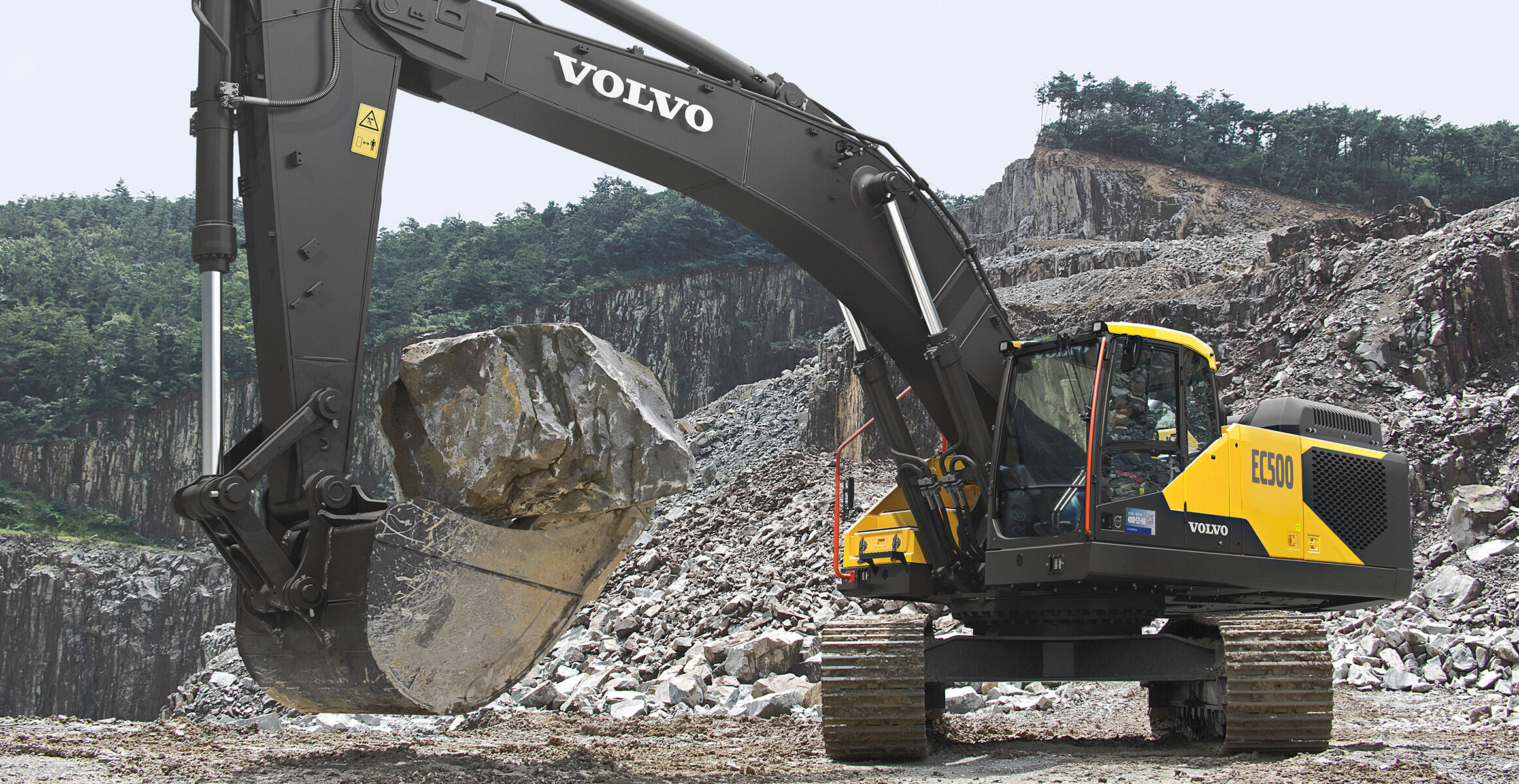

Proven power

With impressively high torque at low rpm, the EC500 builds on generations of proven Volvo engine technology to deliver superior reliability and performance.

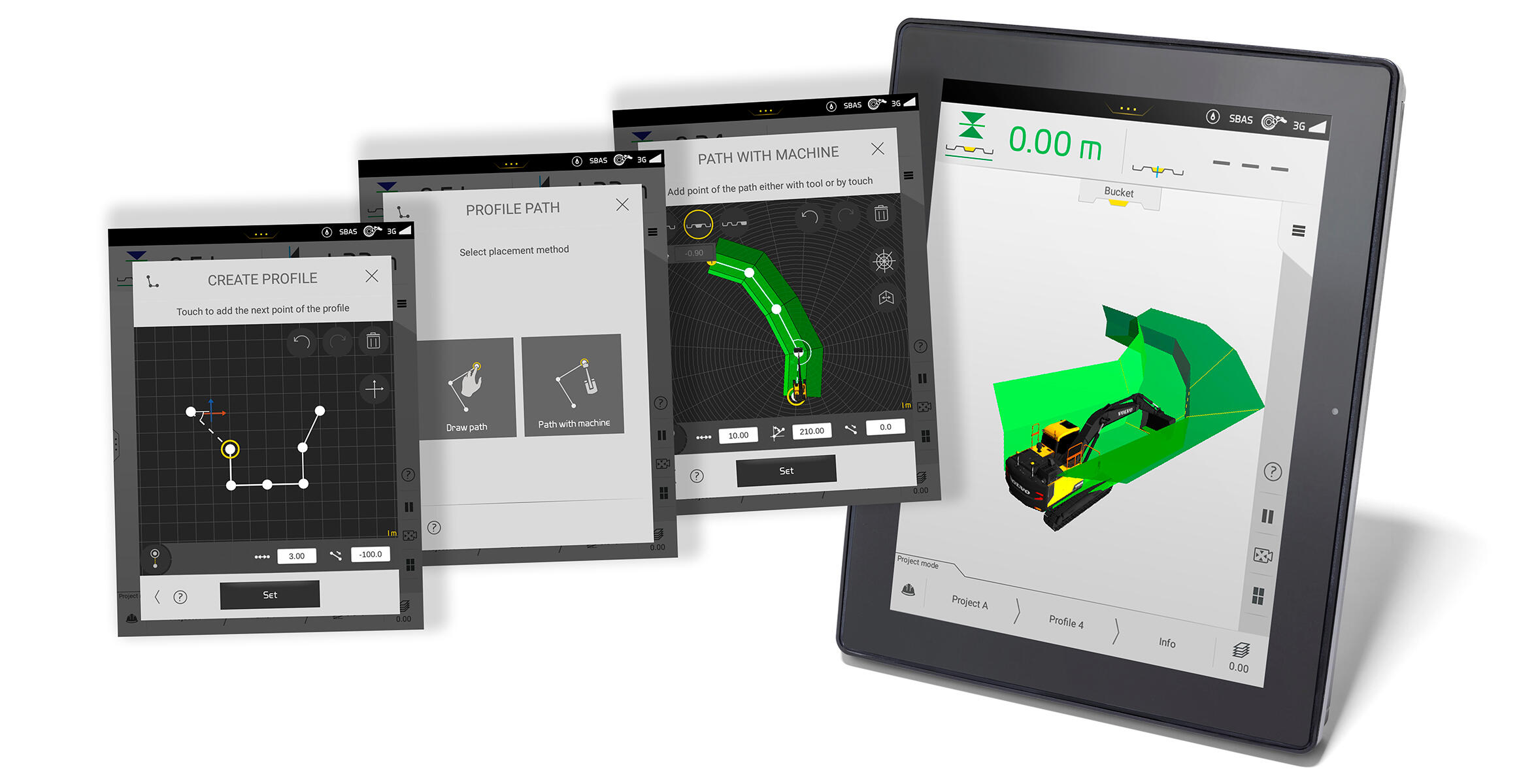

Dig Assist

Unlock the full potential of your machine’s productivity with Dig Assist, powered by the 10” Volvo Co-Pilot display. Gain access to a set of smart apps designed to optimize the digging process, including 2D, 3D, In Field Design and On-Board Weighing.

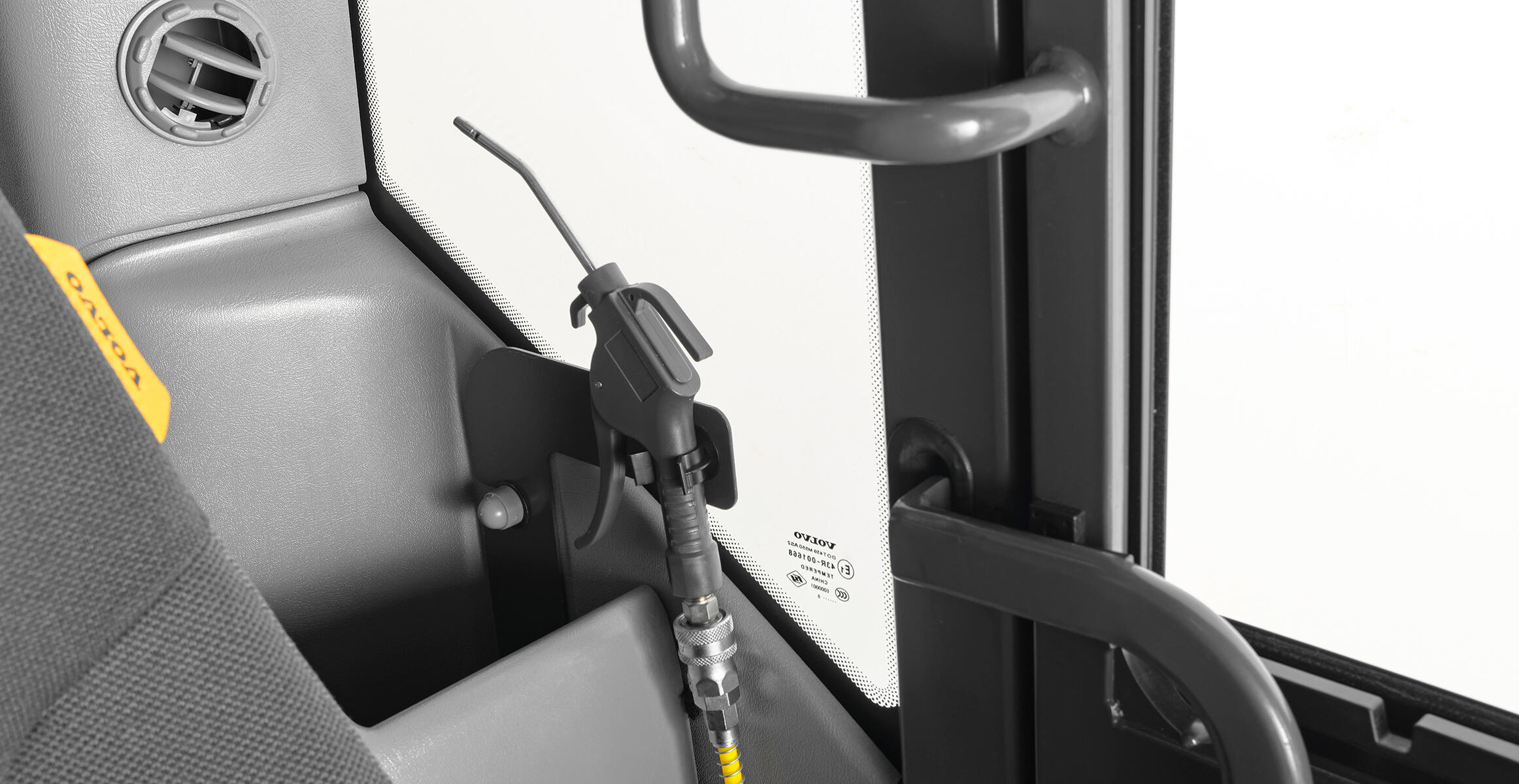

Cleaning air gun

Particularly useful when working in dusty environments, this feature provides an air nozzle to clean inside the cab, as well as other areas, for operator comfort and easy maintenance.

Durable by design, easy to service and packed with safety features, get ready for unequalled excavator quality.

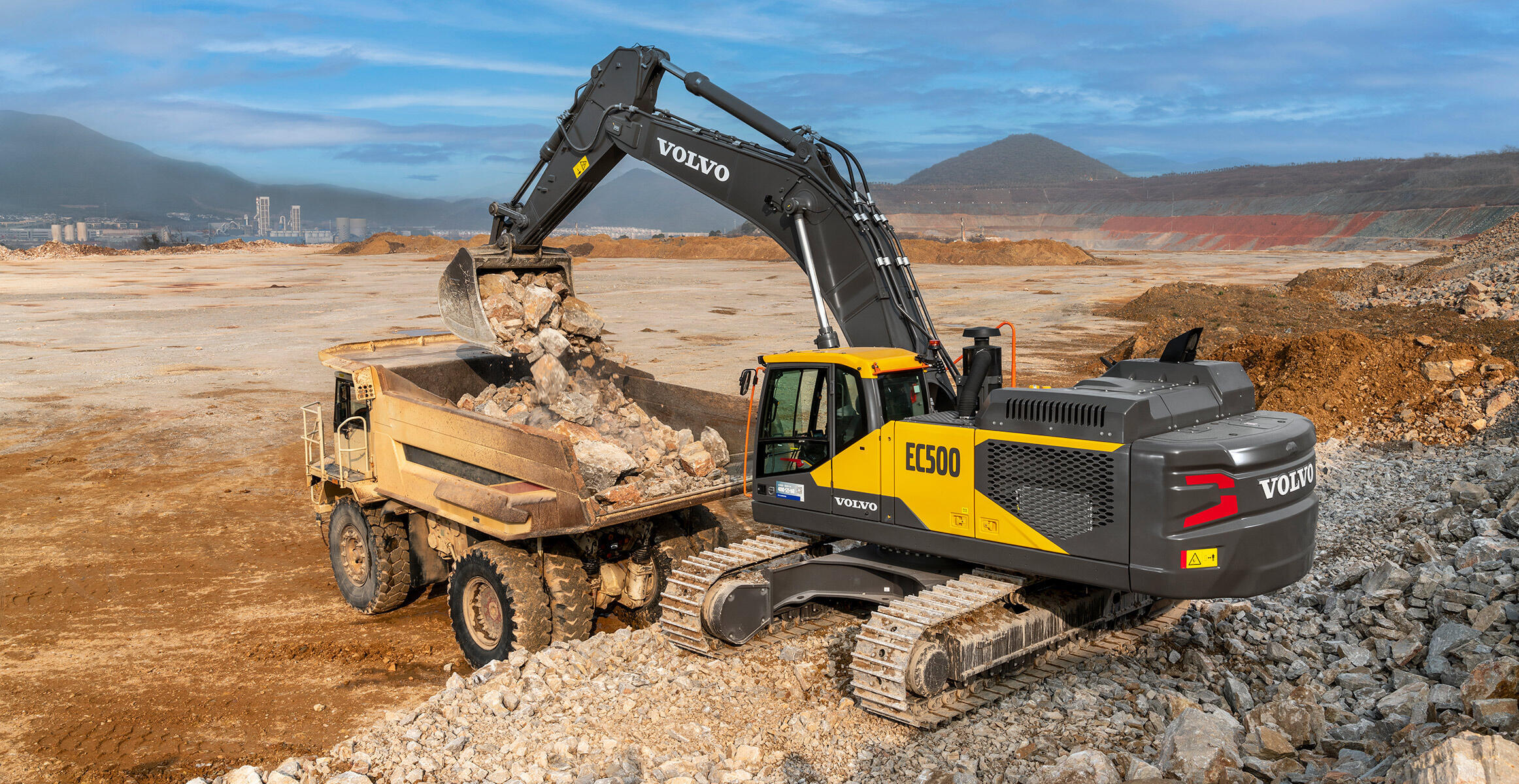

Quality by design

The EC500 introduces the proven technology of the Volvo D13 engine and is a machine designed to deliver the highest levels of quality. Durable by design, easy to service and packed with safety features, get ready for unequalled excavator quality.

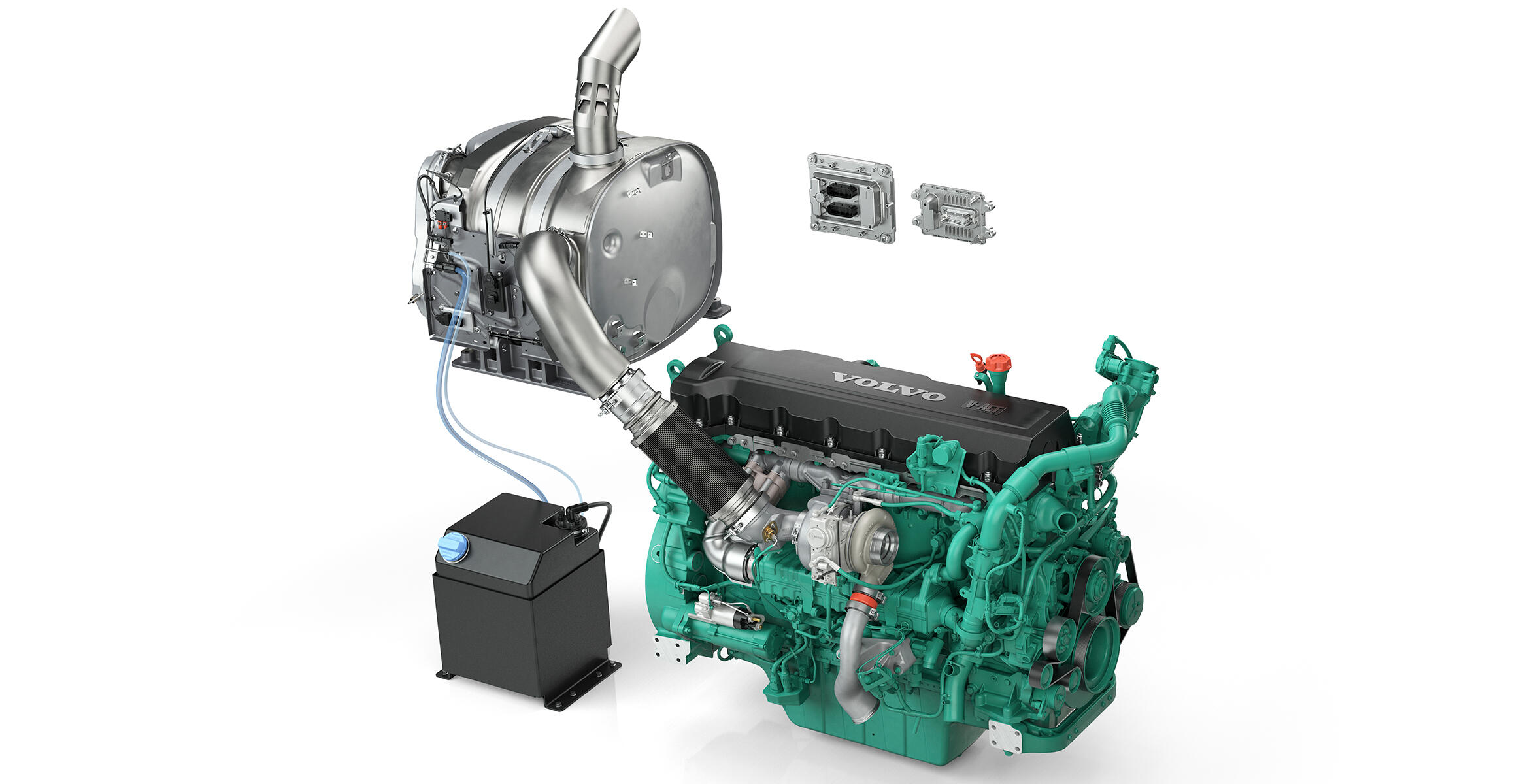

Proven engine technology

The China IV compliant Volvo D13 engine has been tried and tested throughout the world since 2014. With technology that has been tested and enhanced for almost 10 years, this is an engine which customers can rest assured will deliver outstanding levels of quality, reliability, and efficiency.

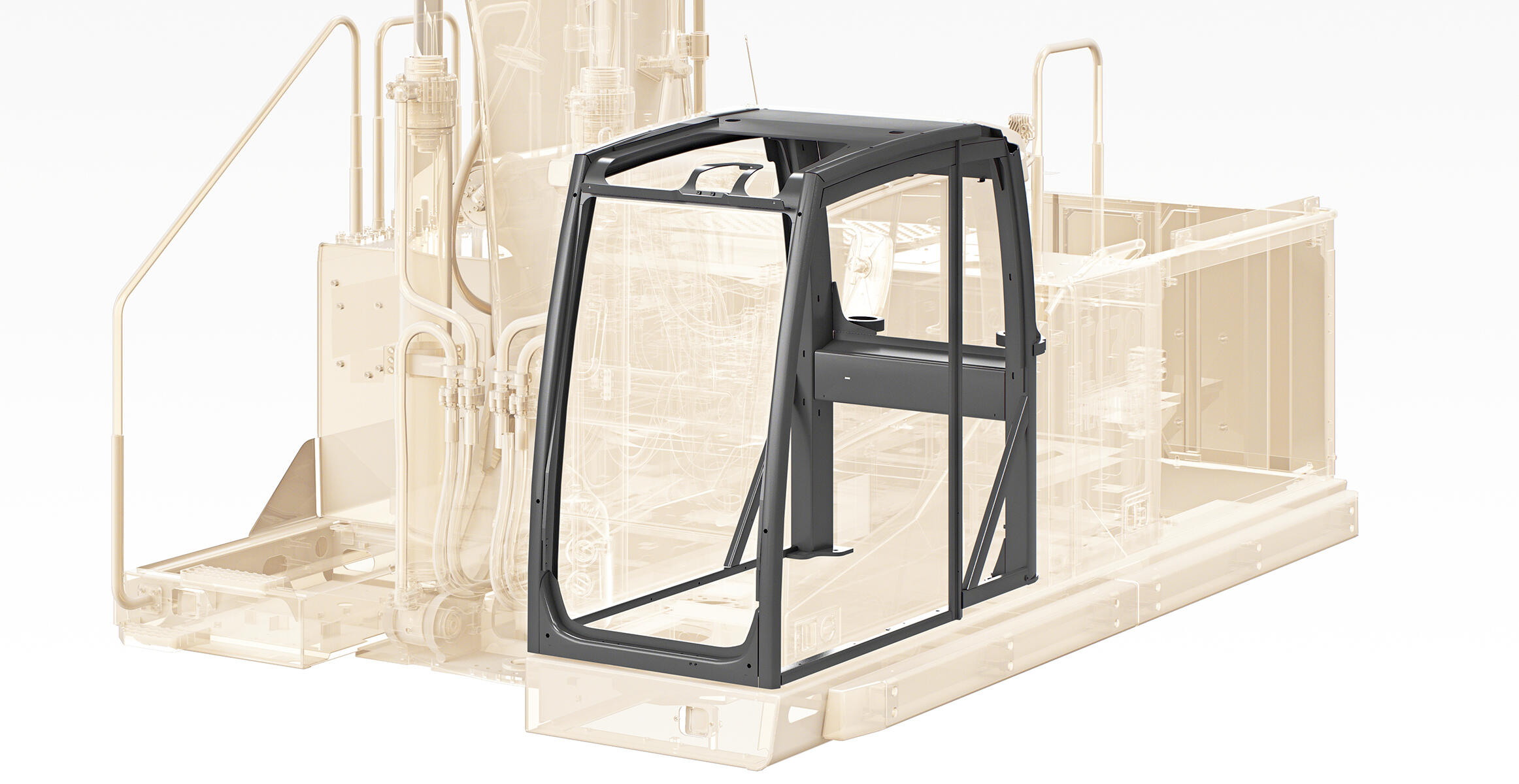

Safety, inside and out

Anti-slip plates and handrails provide safe and easy access to the ROPS-certified cab. Once inside the cab, the rear-view camera contributes to outstanding overall visibility and the audible seat belt alarm ensures the operator is correctly and safely wearing their seat belt.

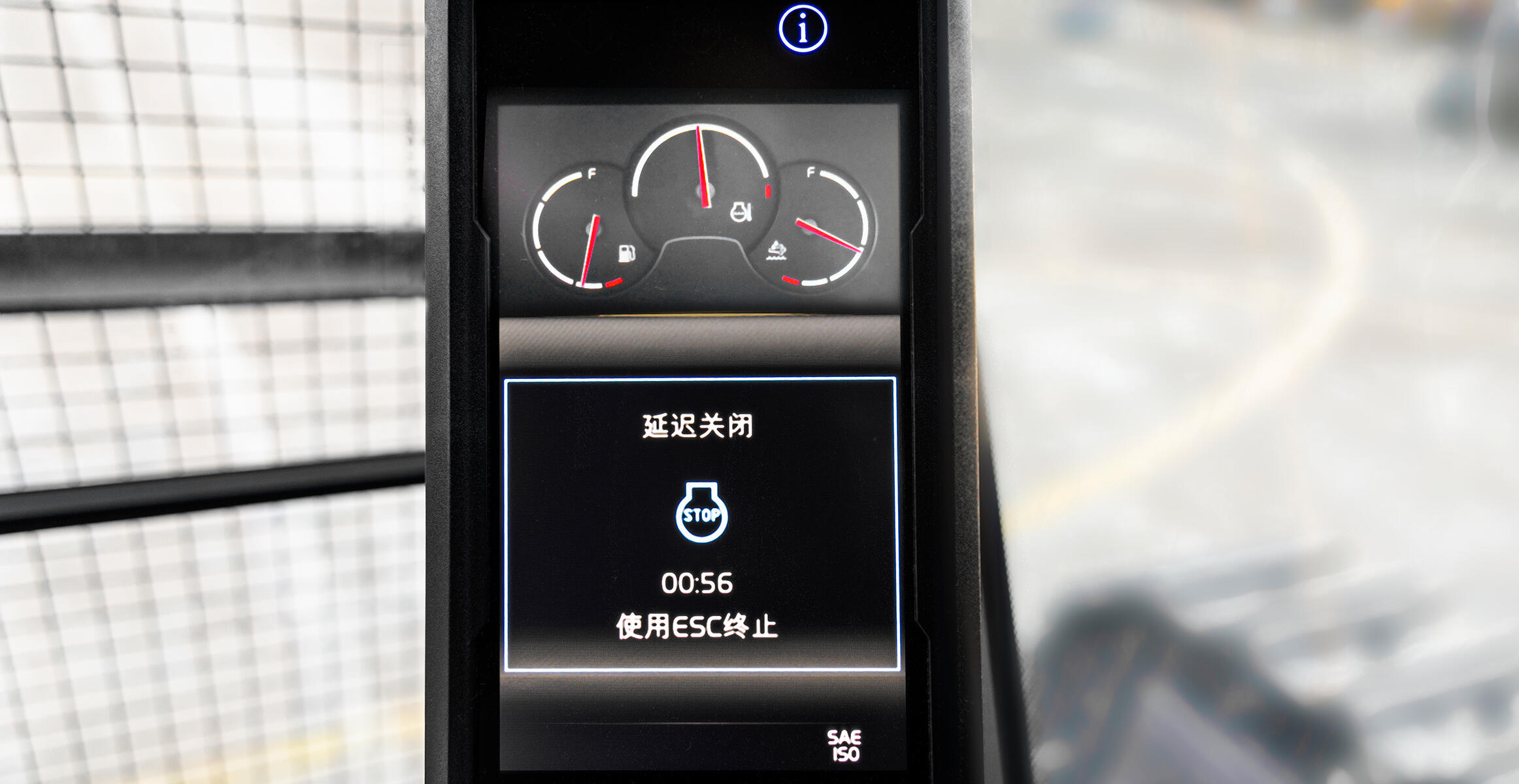

Engine protection

Keep your turbocharger working in top condition for longer with the optional delayed engine shutdown. To avoid overheating, the intelligent function turns the machine off when the turbo charger has cooled down to the appropriate temperature – and can be set to activate automatically by the operator.

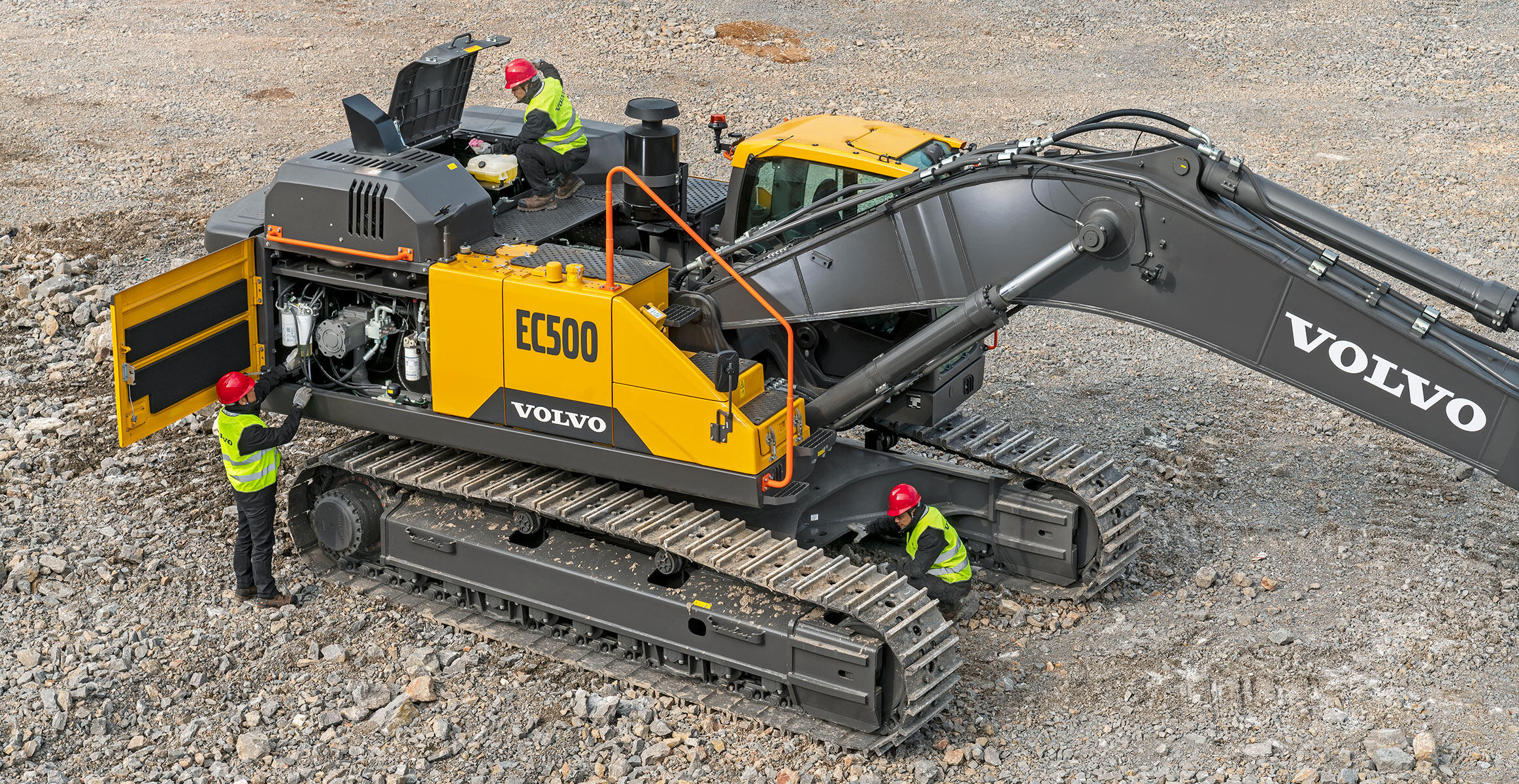

Service with speed

Quick and easy servicing helps keep uptime to a maximum, including grouped filters and greasing points. The single module cooler is also accessed with ease from the ground level simply by opening the side door. The radiator, charged air cooler and hydraulic oil cooler are situated side-by-side on a single layer to maximize efficiency, reduce blockages and aid cleaning.
