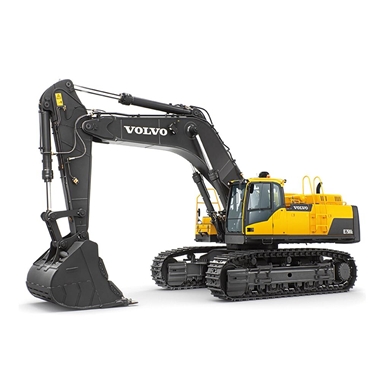

Large Crawler Excavators EC750DL

Stage IIIA / Tier 3 Emission Standards
72,700 - 74,700 kg Operating weight
393 kW Gross power
3.3 - 5.16 m³ Bucket capacity

For ultimate performance and low fuel consumption, the EC750DL crawler excavator gets the job done whether you’re working at a mine, quarry or in heavy construction applications. The machine’s engine delivers increased horsepower and fuel efficiency, while its electro hydraulic system provides... Read more

Download the EC750DL brochure, with all the details and specifications. (PDF, 581.2KB)

Technical specifications for EC750DL

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.

Operating weight	72,700 - 74,700 kg
Gross power	393 kW
...at engine speed	1,800 rpm
Bucket capacity	3.3 - 5.16 m³
Lifting capacity, along undercarriage	26,110 kg
...at reach / height	6 / 1.5 m
Max. digging reach	11,460 mm
Max. digging depth	7,210 mm
Breakout force, SAE J1179 (Normal)	325 kN
Tear out force, SAE J1179 (Normal)	314 kN
Overall width	4,290 mm
Tail swing radius	4,140 mm

Based on machine configuration: 6.6m boom, 2.9m arm, 12700kg CWT

Images for illustration purposes only. Production machines may differ in appearance and features vary between markets and models.

Download the EC750DL brochure, with all the details and specifications. (PDF, 581.2KB)

Features & Benefits

The high quality D16 engine delivers 11% increased horsepower for high productivity and increased fuel efficiency.

Gain more, pay less

Secure more profit and reduce your Total Cost of Ownership by increasing productivity and fuel efficiency. Do more for less on your job site with the EC750DL’s Volvo D16 engine, which delivers increased horsepower and fuel efficiency. The machine’s electro hydraulic system provides high productivity and excellent control.

The constant high system pressure delivers greater digging force and reduced cycle times to get the job done faster.

A star performance

The EC750D’s outstanding digging force gets the job done whether you’re working at a mine, quarry or in heavy construction applications. The EC750D digs, swings and loads using the most efficient technology and its improved stability, tractive force and Eco Mode, delivers low fuel consumption and improved cycle times for a star performance.

The reinforced heavy-duty boom and arm increases reliability and machine uptime, even in challenging applications.

Strong, solid and superior

Use the best machine for the job in tough working conditions. The EC750DL is built using durable Volvo components, a reinforced structure and machine protection for a longer life in tough environments. Robust parts and easy service access increase uptime and keep maintenance to a minimum to reduce operating costs.

A range of Volvo attachments including hard wearing buckets are an integrated part of the excavator, delivering maximum productivity.

Strength in numbers

Maximize your productivity and profitability with Volvo’s EC750DL excavator and a range of durable attachments. Increase your versatility, access more applications and perform a variety of tasks on one job – all while experiencing faster cycle times and excellent control.

Customer Support Agreements offer preventive maintenance, total repairs and a number of uptime services.

Adding value to your business

Being a Volvo customer means having a complete set of services at your fingertips. Volvo can offer you a long-term partnership, protect your revenue and provide a full range of customer solutions using high quality parts, delivered by passionate people. Volvo is committed to increasing the positive return on your investment and maximising uptime.

Keep your Volvo a Volvo!

Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.
