Tackle tough tasks with ease View all images and videos

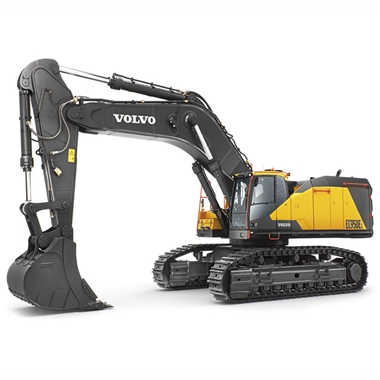

Large Crawler Excavators EC950EL

  • 89,960 - 91,840 kg Operating weight
  • 450 kW Gross power
  • 5.6 - 8.5 m³ Bucket capacity
Perform a variety of tasks with greater speed in Volvo’s heavy-duty EC950EL, utilizing advanced technology to increase productivity and efficiency. Whether you’re working on a quarry, in mass excavation or any other application, the big and powerful EC950EL excavator and Volvo’s durable... Read more
Contact us

Tackle tough tasks with ease

Perform a variety of tasks with greater speed in Volvo’s heavy-duty EC950EL, utilizing advanced technology to increase productivity and efficiency. Whether you’re working on a quarry, in mass excavation or any other application, the big and powerful EC950EL excavator and Volvo’s durable wear-resistant components will maximize your profitability and uptime.
Tackle tough tasks with ease

Technical specifications for EC950EL

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.
Operating weight 89,960 - 91,840 kg
Gross power 450 kW
...at engine speed 1,800 rpm
Bucket capacity 5.6 - 8.5
Lifting capacity, along undercarriage 37,460 kg
...at reach / height 6 / 1.5 m
Max. digging reach 12,270 mm
Max. digging depth 7,120 mm
Breakout force, SAE J1179 (Normal) 424 kN
Tear out force, SAE J1179 (Normal) 408 kN
Overall width 4,515 mm
Tail swing radius 4,700 mm
Based on machine configuration: Boom 7.25m; Arm 2.95m; Shoe 650mm; CWT 16100kg
Images for illustration purposes only. Production machines may differ in appearance and features vary between markets and models.
Download the EC950EL brochure, with all the details and specifications. (PDF, 601.8KB)

Features & Benefits

Bigger machine, bigger results
Bigger machine, bigger results Gain more tons per hour in Volvo’s largest crawler excavator, delivering and a fast and efficient on site production.
Bigger machine, bigger results

Big, powerful and productive

Do the bigger jobs better, stronger and faster with the EC950EL. The 90 tonne crawler excavator offers the perfect combination of power and stability to handle a higher capacity in the toughest applications.

Easy service access
Easy service access Maintenance points are easily accessed via the wide-opening compartment doors using central and surrounding walkways.
Easy service access

Always-on

Rely on maximum uptime with the big and durable EC950EL – always available and ready to work. The machine’s heavy-duty design, reliable and wear-resistant components, and easy service access ensure you will get the job done quickly and without delay.

Proven reliability

Proven reliability

Count on a solid, reliable EC950EL with Volvo’s high-quality components, designed to work in perfect harmony with the machine. Volvo’s commitment to rigorous testing in its development process ensures the production of well-engineered components, purpose-built for the job, and proven to be reliable in the toughest applications.

Machine monitoring made easy
Machine monitoring made easy Maximize uptime with the GPS monitoring program works with the machine’s diagnostic system to allow you to remotely track usage, productivity, fuel consumption and more.
Machine monitoring made easy

Keeping costs down

We’re committed to providing a complete solution to guarantee the highest performance from your Volvo machine, including state-of-the-art support through our customer solutions. Take advantage of our unique, local dealer support network to ensure your machine achieves maximum uptime, and generates maximum profit and growth for your business.

Superior digging force
Superior digging force The EC950EL features superior digging force, particularly when working with hard and heavy materials.
Superior digging force

Peak performance

Job done. With the big and powerful EC950EL, no task is too tough. Increase profitability with superior digging force, quick cycle times and outstanding fuel efficiency for a maximum return on investment.

Keep your Volvo a Volvo!

Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.
