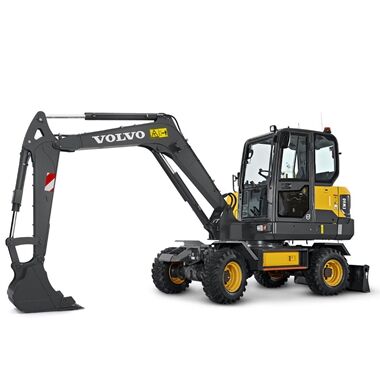

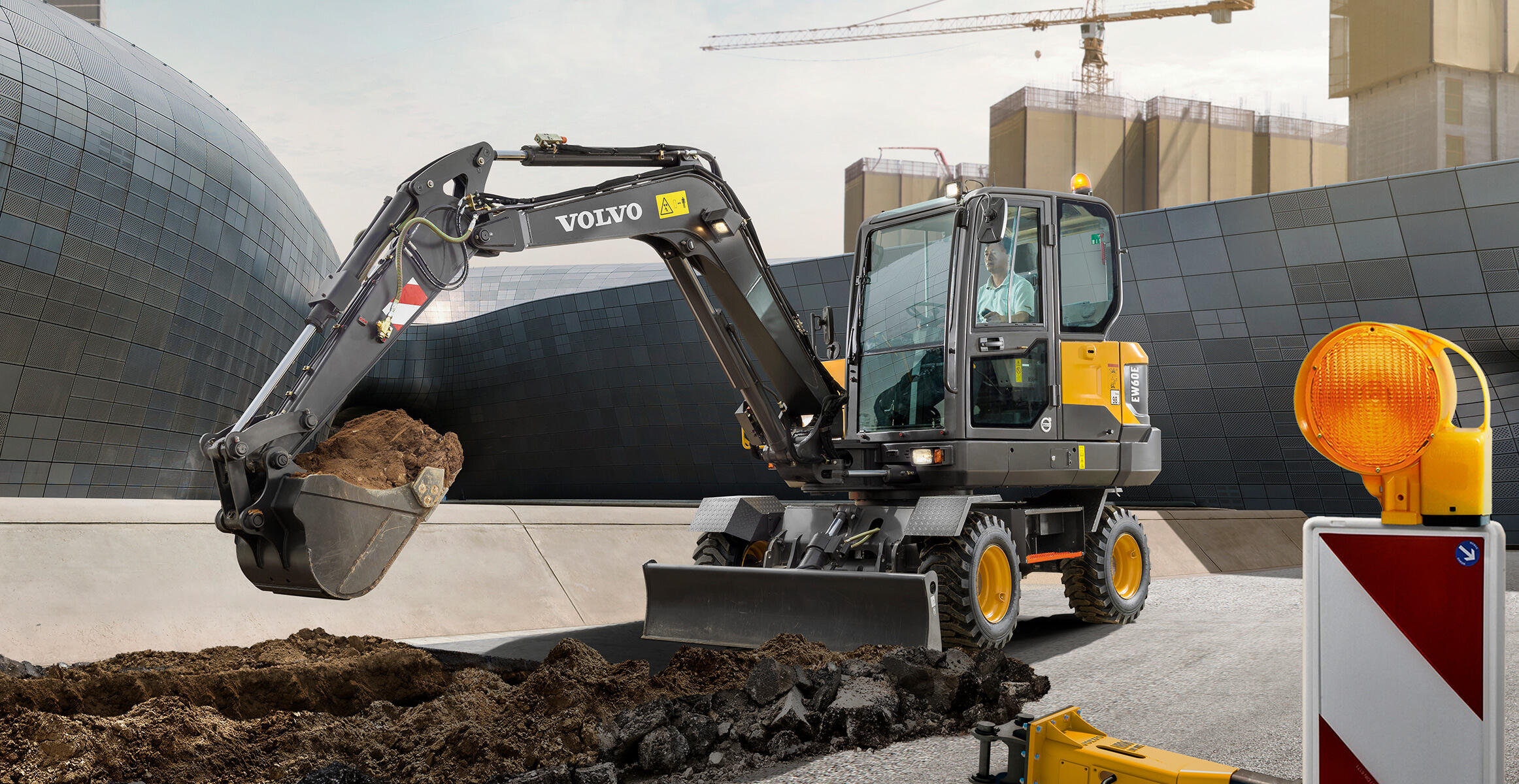

EW60 CN4 | Excavators | Overview | Volvo Construction Equipment

Operating weight	5,150 - 6,070 kg
Gross power	47.3 kW
...at engine speed	2,400 rpm
Bucket capacity	0.07 - 0.27 m³
Max lifting capacity	3,030 kg
...at reach / height	3 / 1 m
Max. digging reach	6,090 mm
Max. digging depth	3,360 mm
Breakout force, ISO (Normal)	43.4 kN
Max speed	30 km/h
Tail swing radius	1,650 mm

Features & Benefits

The new ROPS cab design features for space, increased glazed area and reduced noise levels for a comfortable and related operator experience.

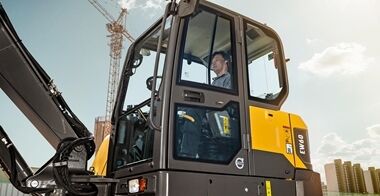

Larger cab

10% more space results in comfortable and relaxed operation, increasing production and reducing fatigue. The new ROPS cab design creates more space behind the seat, allowing the operator to move more freely within the space. The new generation Volvo Cab features more in cab room, increased glazed area and reduced noise levels.

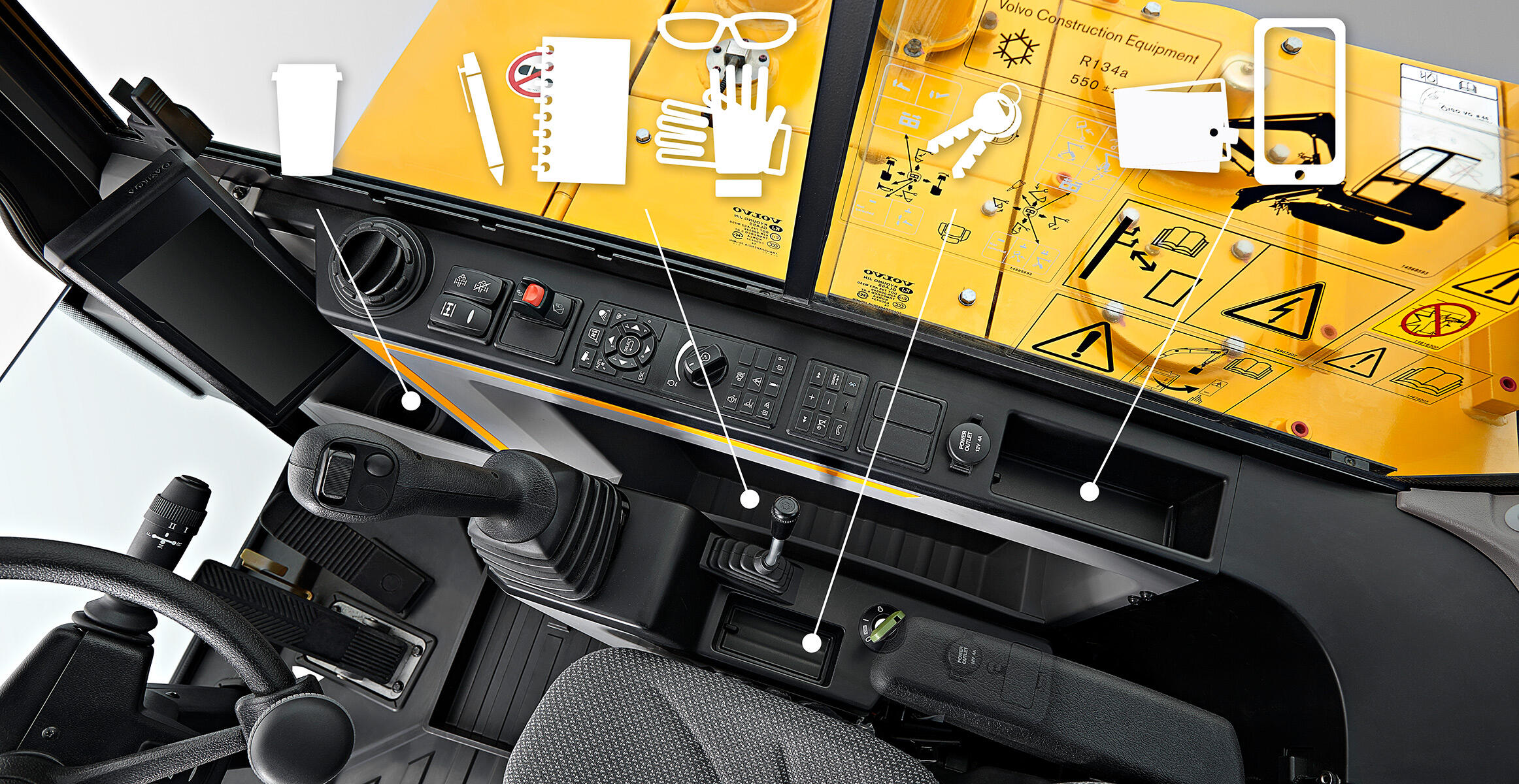

Operator convenience

Increased storage space is available for operator comfort and convenience. A phone tray, two power sockets, cup holder and three other large storage areas makes the Volvo cab a more convenient working environment.

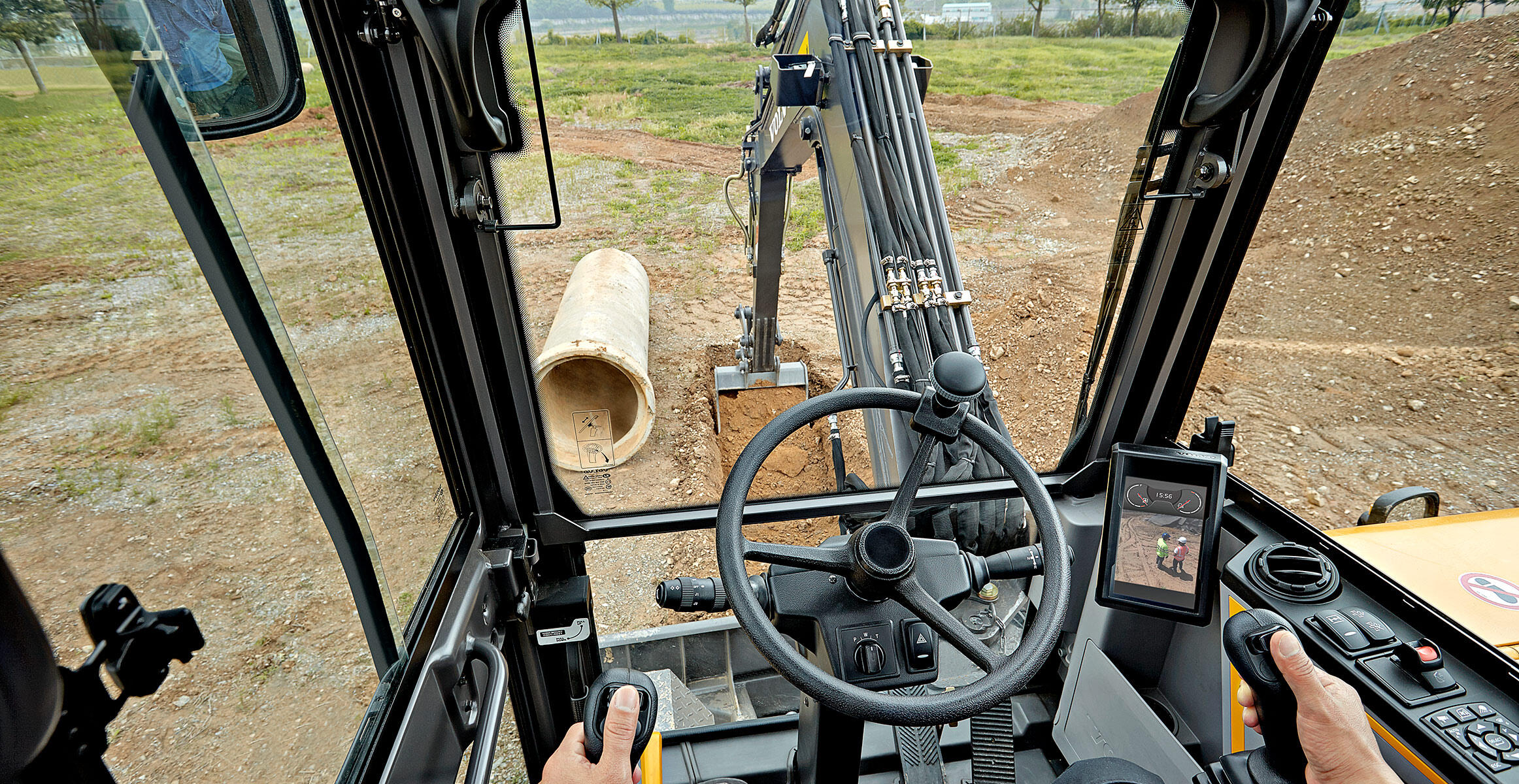

Operator visibility

All-round visibility is improved by thinner pillars, larger glazed area and enlarged wiper blade. The rear view camera secures a better view for perfect and safe control through the 7” color LCD display. This ensures there are no blind spots even in the most confined working areas.

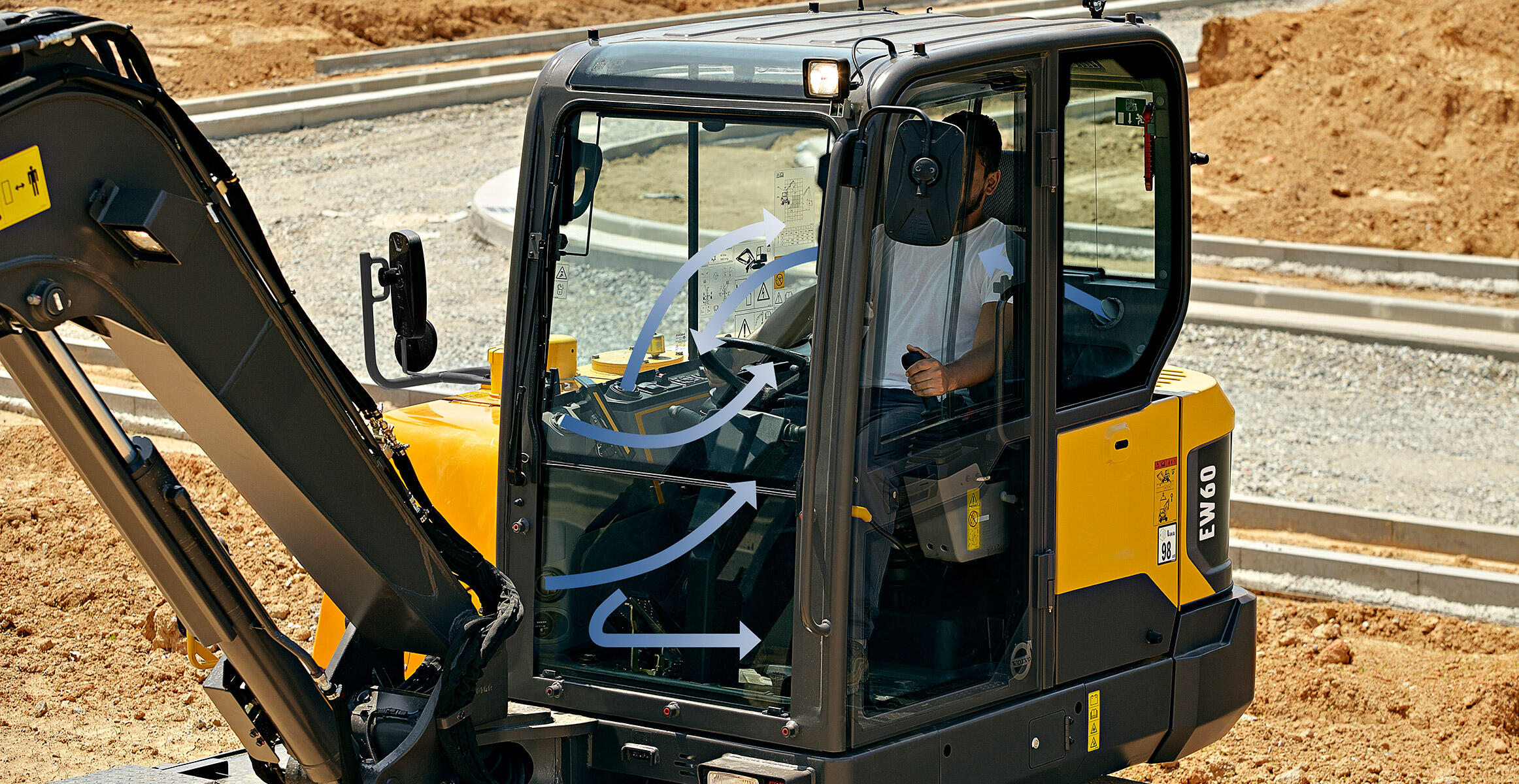

Work in comfort

The comfortable and adjustable seat makes it easier for the operator to work hard all day and feel less tired by the end of it. The cab’s air conditioning is 10% more efficient and in automatic mode, the temperature remains at a set level. Six adjustable vents allow for optimal airflow in the cab.

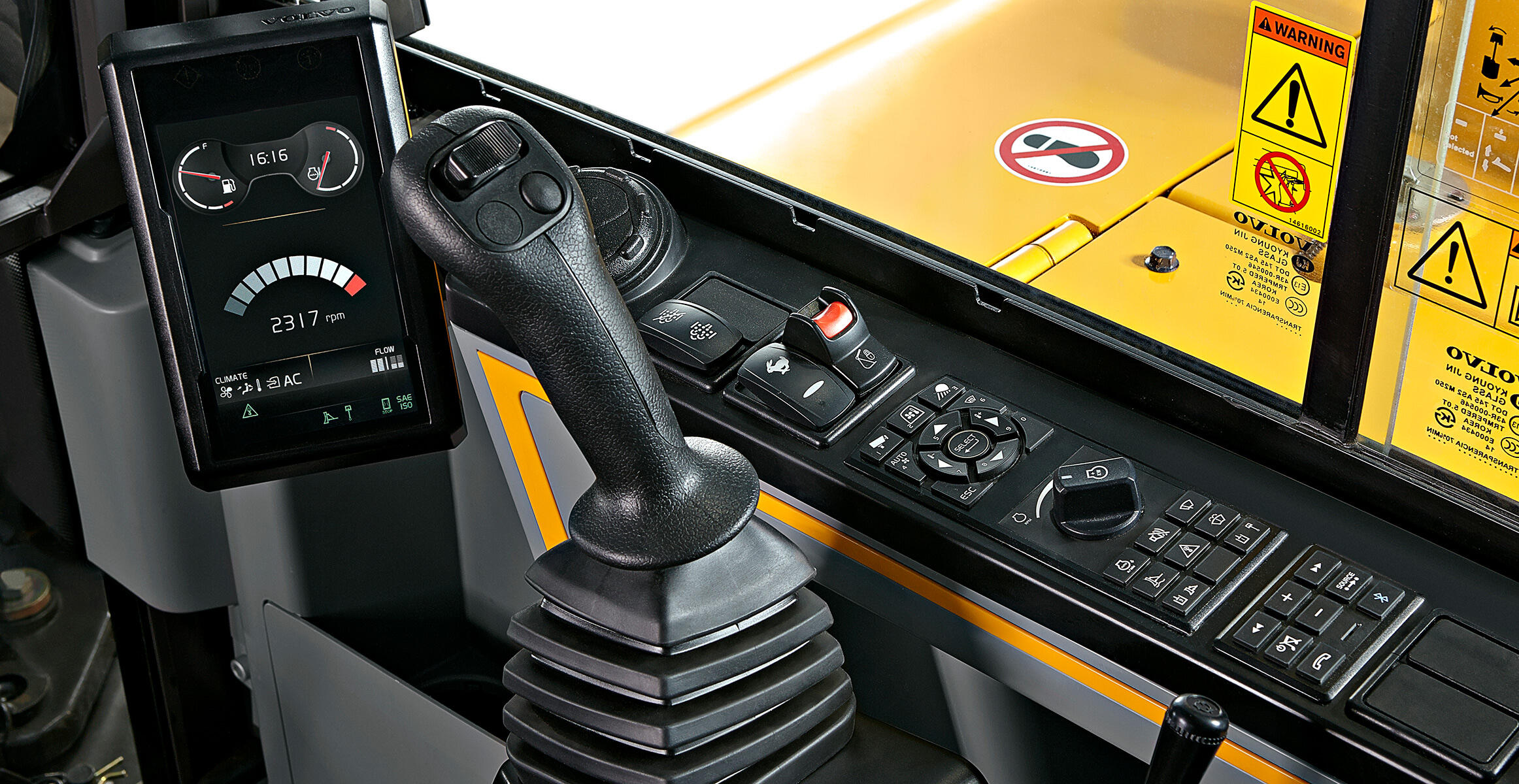

Ease of control

Control your machine with minimal effort in order to get more done in less time. The keypad groups all controls on the right hand side and the 7” color LCD screen displays all machine information for access to functions through its easy to use menus. Through the hot keys, the operator can directly access pre-set functions for added convenience. The new and improved proportional joystick provides better grip, fits your thumb perfectly and increases ease of control.

Do more in less time with increased combined digging efforts, a 5% increase in swing force, 8% more arm speed, 4% in travel force and 10% in lifting capacity.

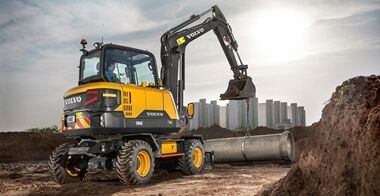

Boosted performance

Do more in less time with increased combined digging efforts, a 5% increase in swing force, 3% higher bucket digging force, 8% more arm speed, 10% in travel force and 10% in lifting capacity. The EW60 has been designed to tackle the most challenging job sites and contracts using the powerful China IV compliant engine and adjustable hydraulic flow. Its well-balanced driveline delivers optimum performance whether working on the job site or on the move.

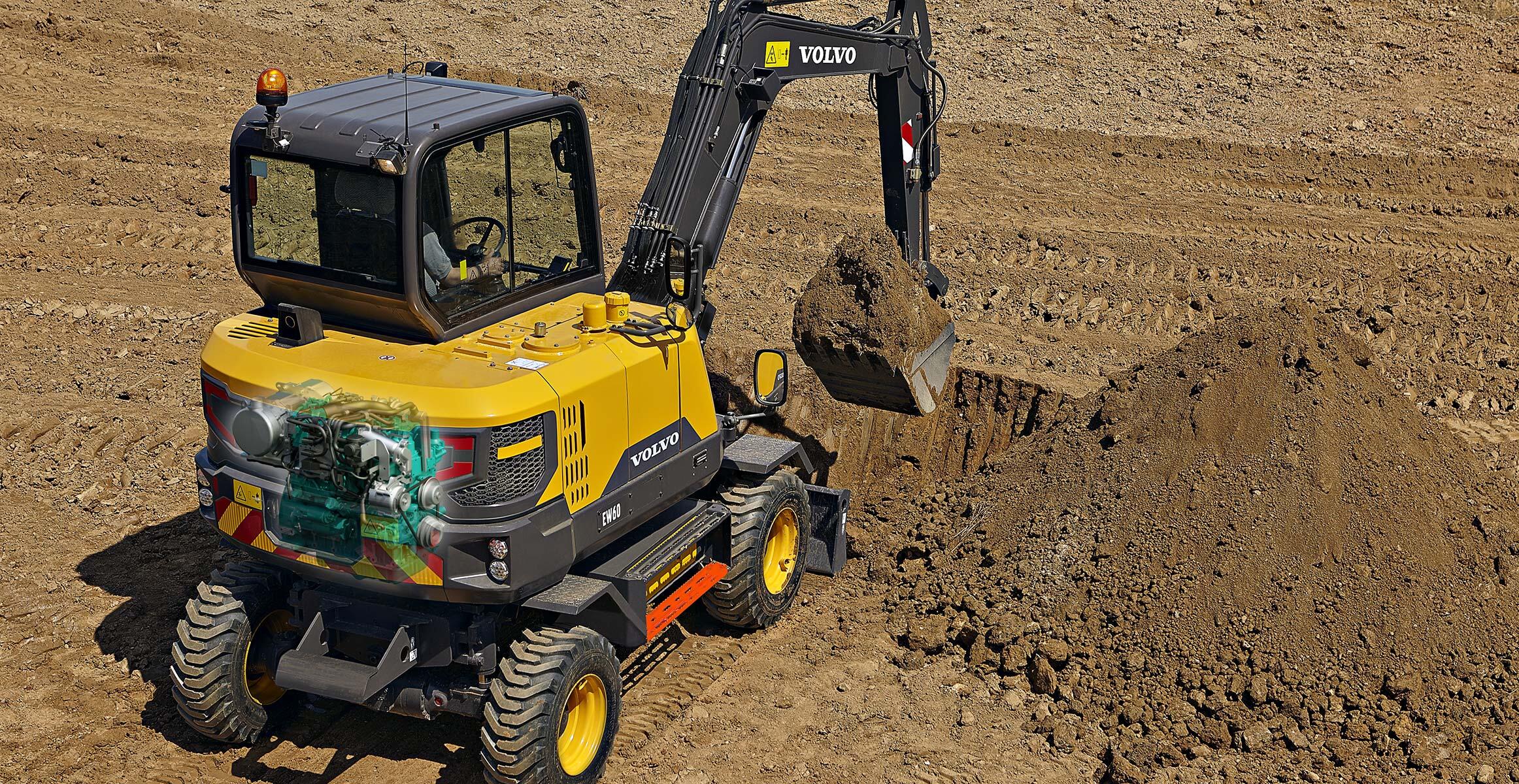

Proven engine technology

The China IV compliant Volvo engine has been proven throughout the world since 2014. With technology that has been tested, proven, and enhanced for almost 10 years, this is an engine which provides 11% more power, delivering outstanding levels of quality, reliability, and efficiency.

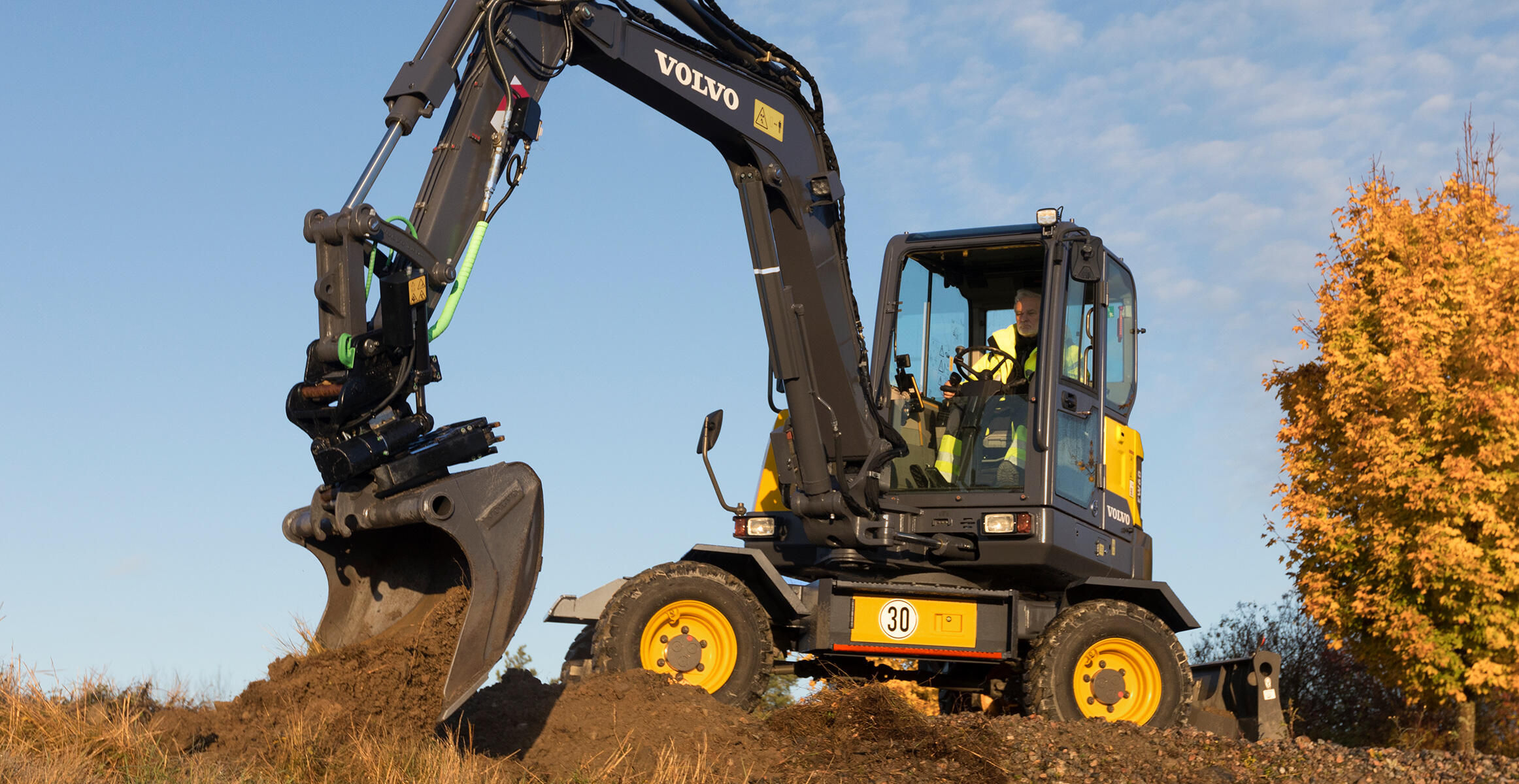

Smooth operation

Smooth combined operation means you can make very accurate and precise movements. With responsive controls the machine does exactly what the operator intends for less fatigue and fluent movement.

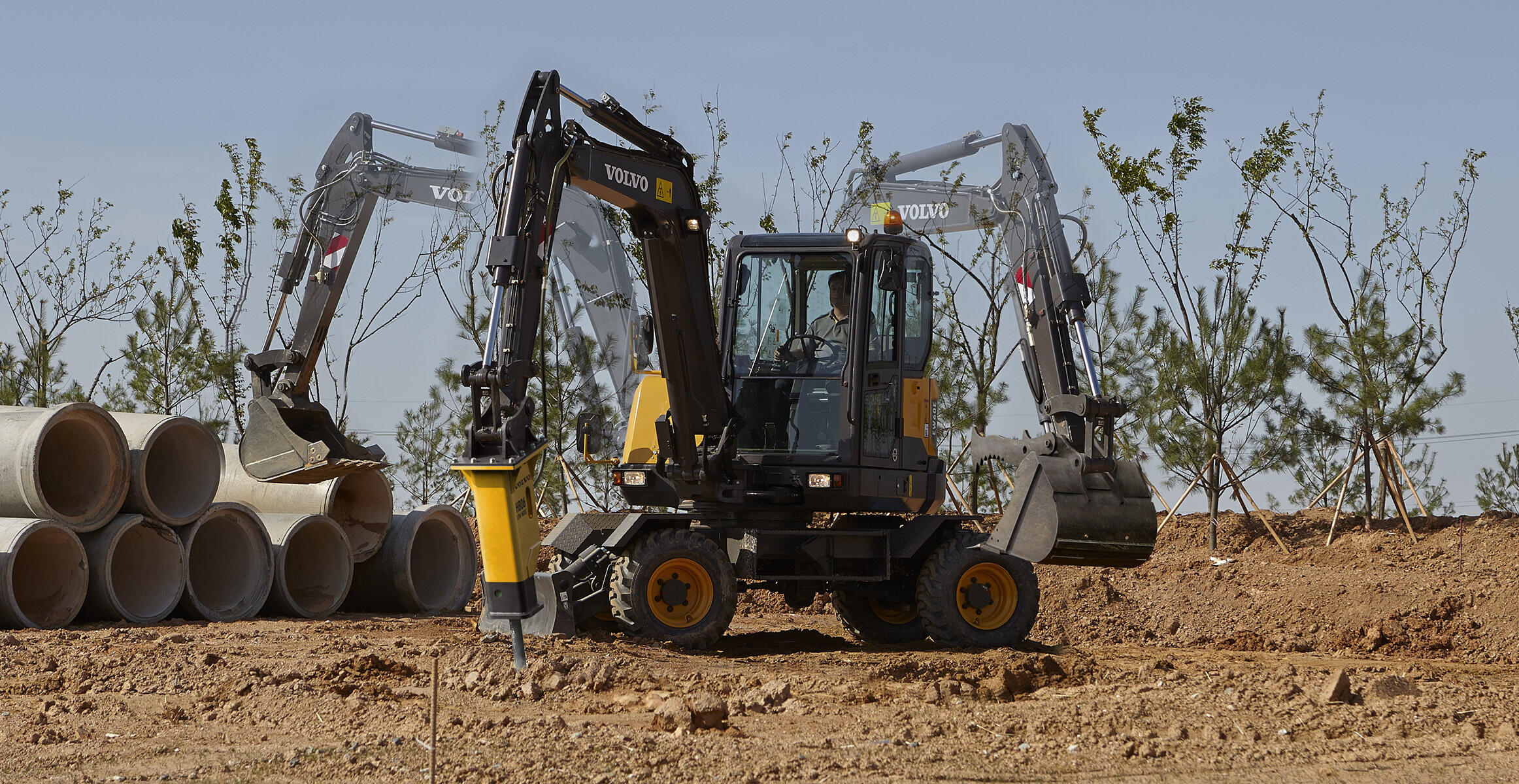

Versatility

Perform on any job site, whether you’re working in a confined space or major construction area. The machine’s compact design, long arm, optional fixed boom and offset boom, longer dozer blade, auxiliary hydraulic and thumb pipings makes the machine suitable for a wide range of jobs and applications.

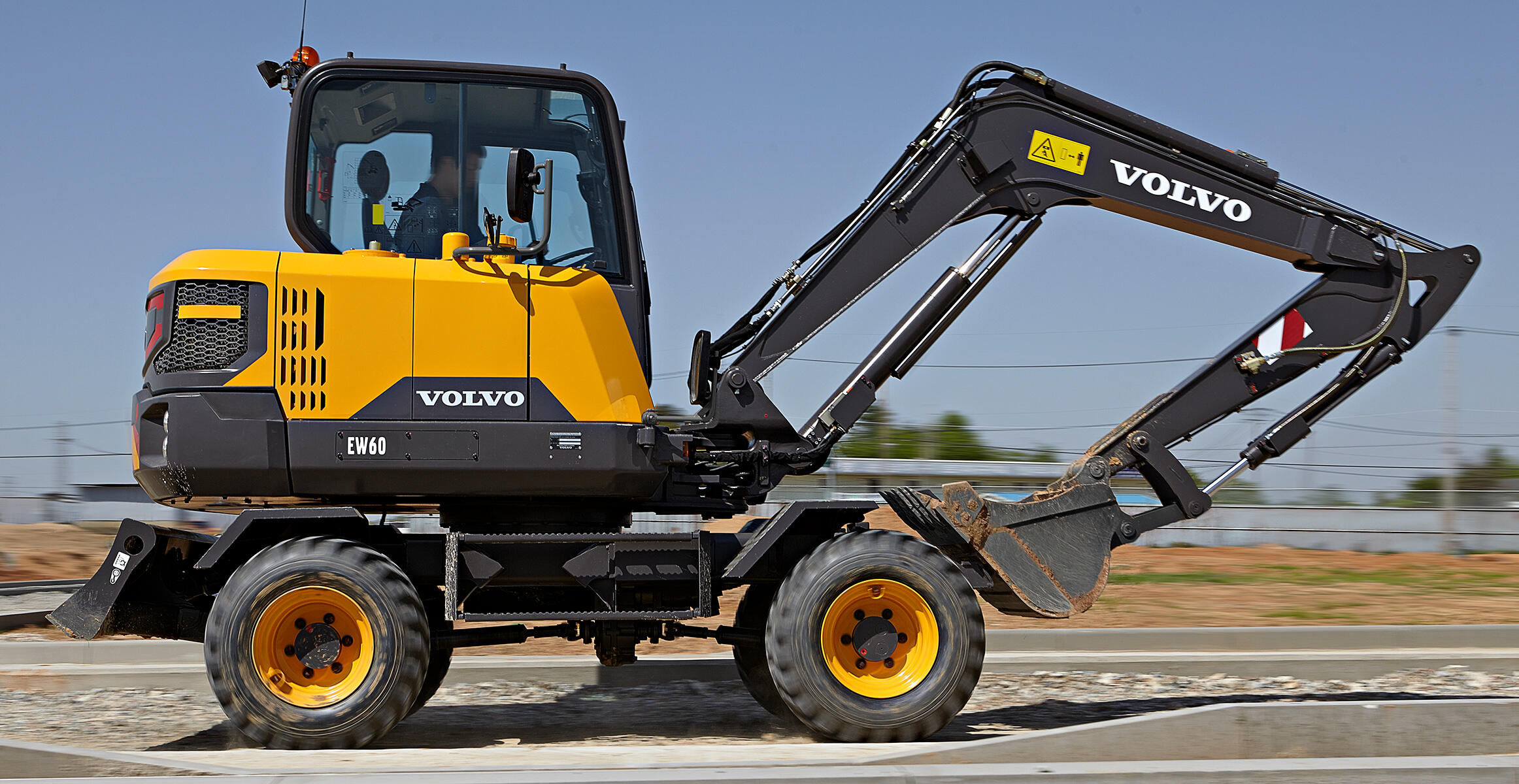

Wheeled performance

A top speed up to 30km/h and the four wheel drive allow you to go on and off-road for better mobility. Drive the machine easily between locations and access hard to reach job sites to save time and keep your machine in prime condition.

Keep your machine up and running with a number of features combined to increase machine availability and reduce downtime.

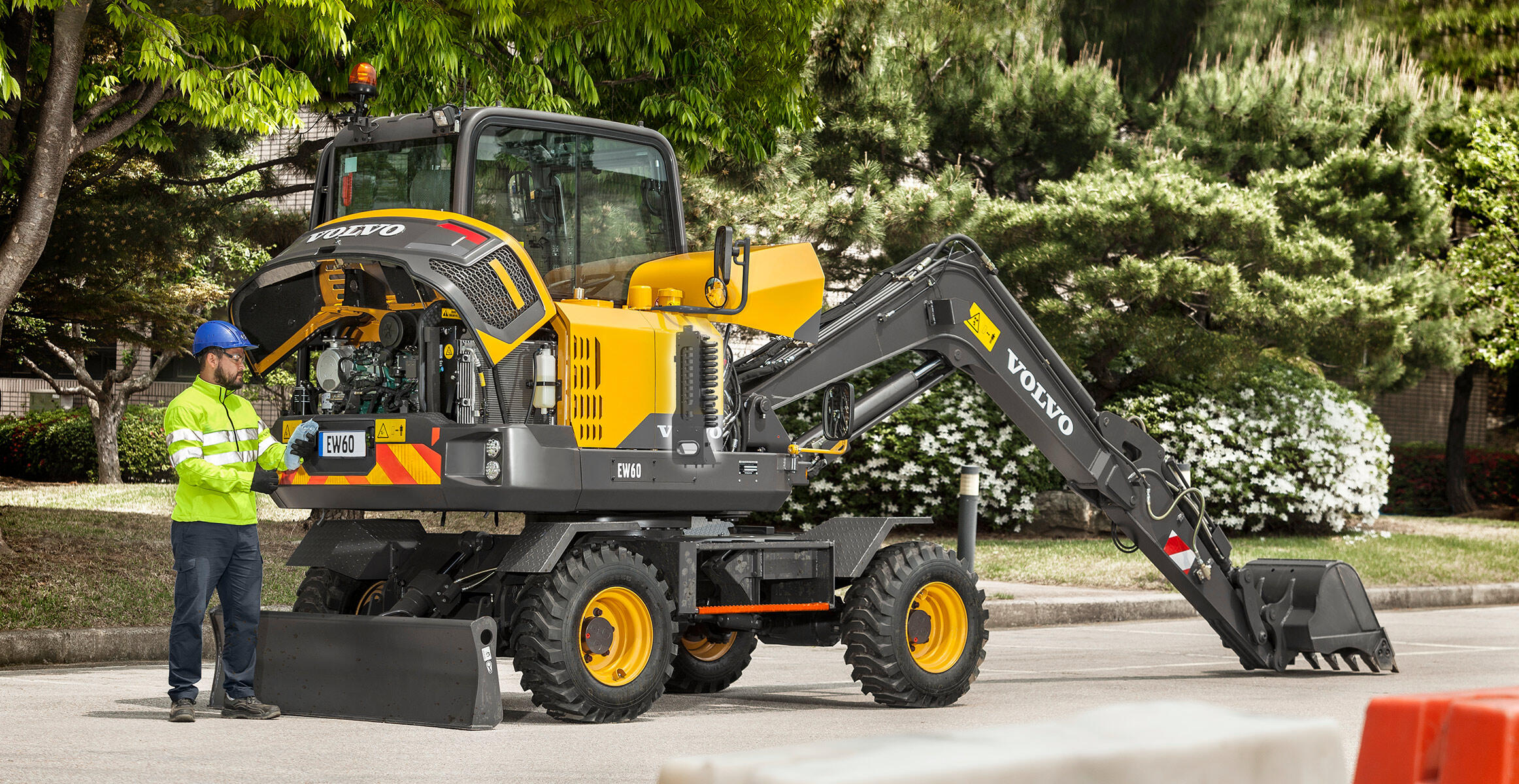

Serviceability

Keep your machine up and running with a number of features combined to increase machine availability and reduce downtime. Ground level service access, including new main control valve location, convenient greasing points, a tool box in the lower structure and an easy to clean cooling unit all reduce service time and maintenance costs. Check service intervals easily through the in-cab screen, which shows reminders when maintenance is needed.

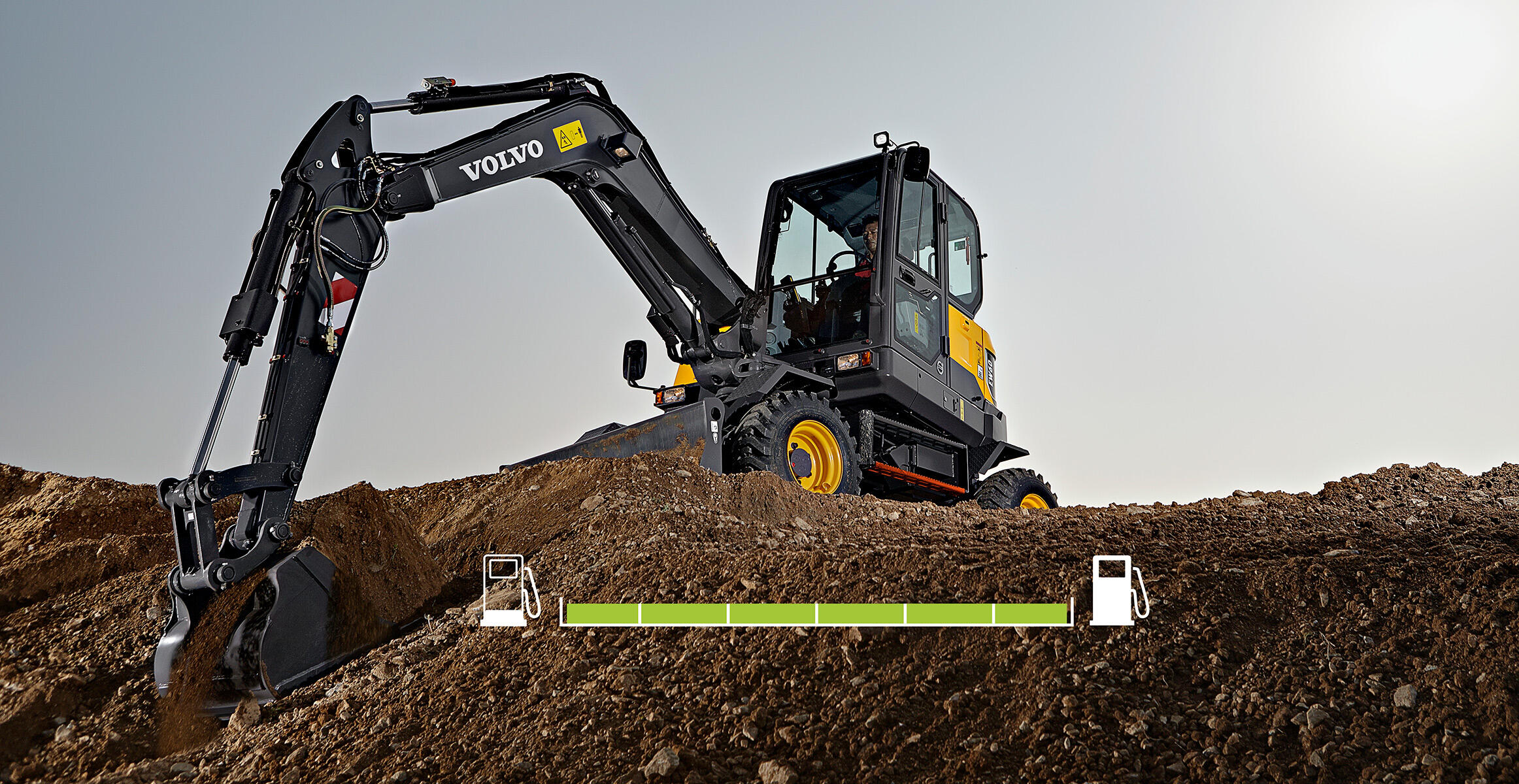

Low fuel consumption

The new Volvo engine and improved hydraulics together offer superior fuel efficiency and up to a 4% reduction in fuel consumption with ECO Mode. The standard auto idle feature helps to reduce your fuel consumption even further and increase your profits.

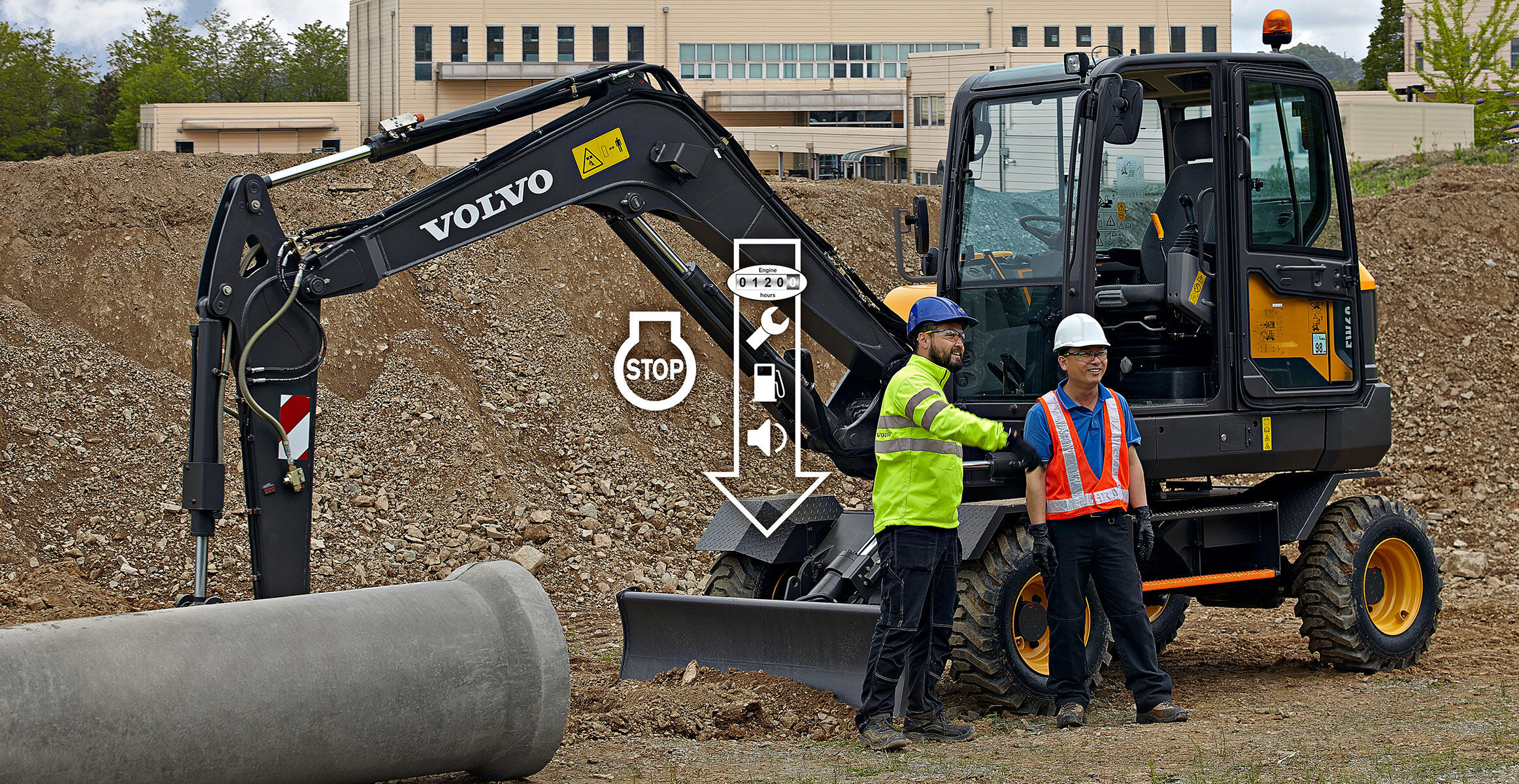

Auto engine shutdown

A unique offering from Volvo, the engine stops automatically after a preselected idle time, lowering fuel costs and noise. A stopped hour meter reduces maintenance costs and increases the resale value of the machine.

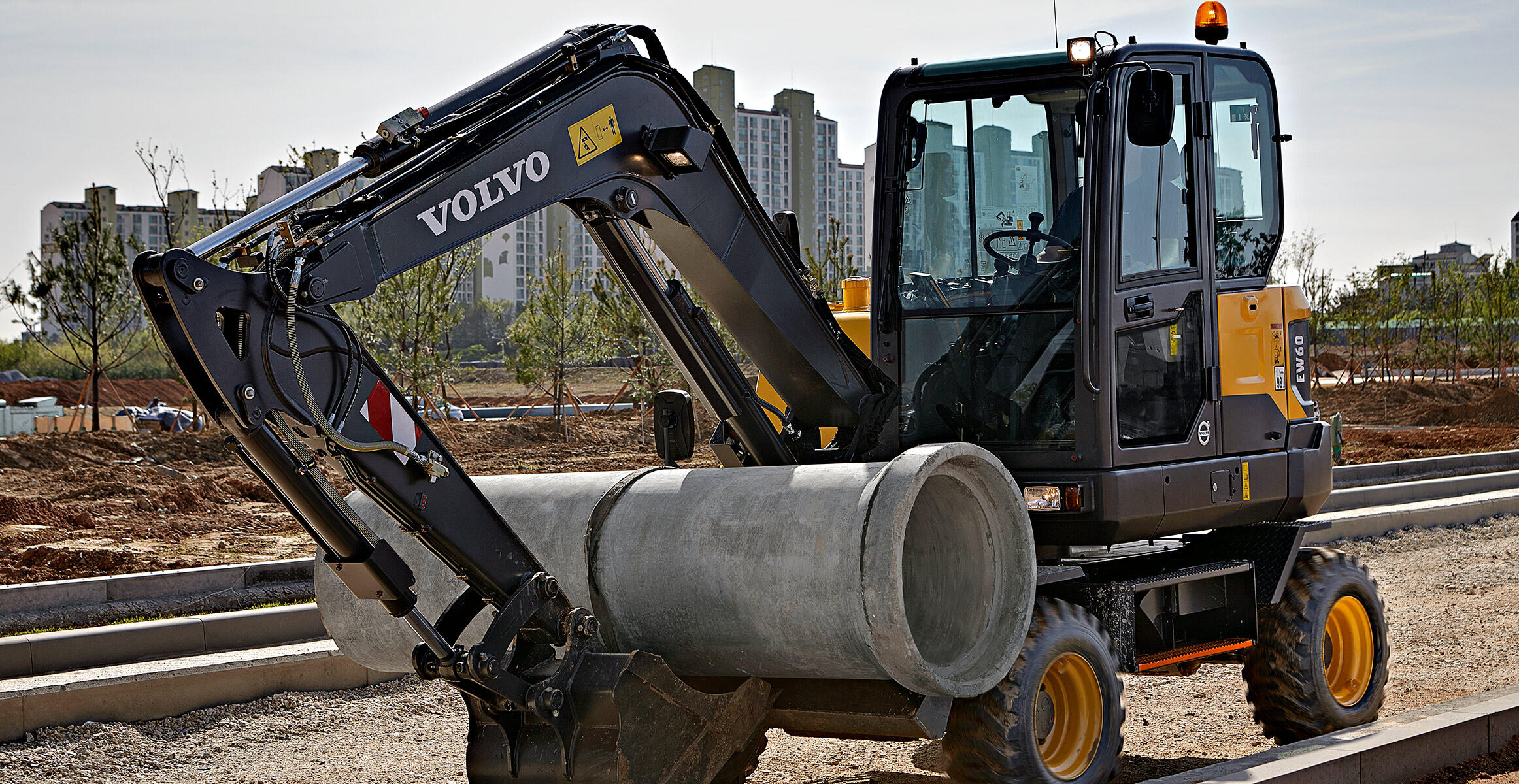

Durability and reliability

The EW60 is designed with the same high quality as all Volvo machines, including robust transmission system and axles, so you can be assured it’s durable and reliable on your job site.

Machine monitoring made easy

Maximize machine uptime and reduce repair costs with the new Pulse telematics system. Choose to keep track of your machine yourself – including location, condition, reports and more – or let us take care of it with Volvo Active Care. Our Volvo Uptime Center will provide 24/7 machine monitoring, supplying weekly reports and notifying you should preventive maintenance action be required

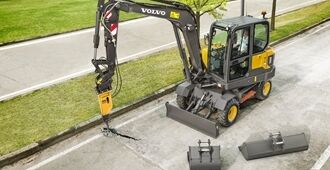

The EW60 attachment can be easily changed, allowing the machine to take on a wide variety of tasks.

Attachments versatility

The machine’s attachment can be easily changed to save time and costs. Its design, hydraulics, piping and in-cab switches combined with the Volvo attachments range allows the EW60 to take on a variety of tasks. Volvo attachments work in harmony with the machine to deliver maximum productivity.

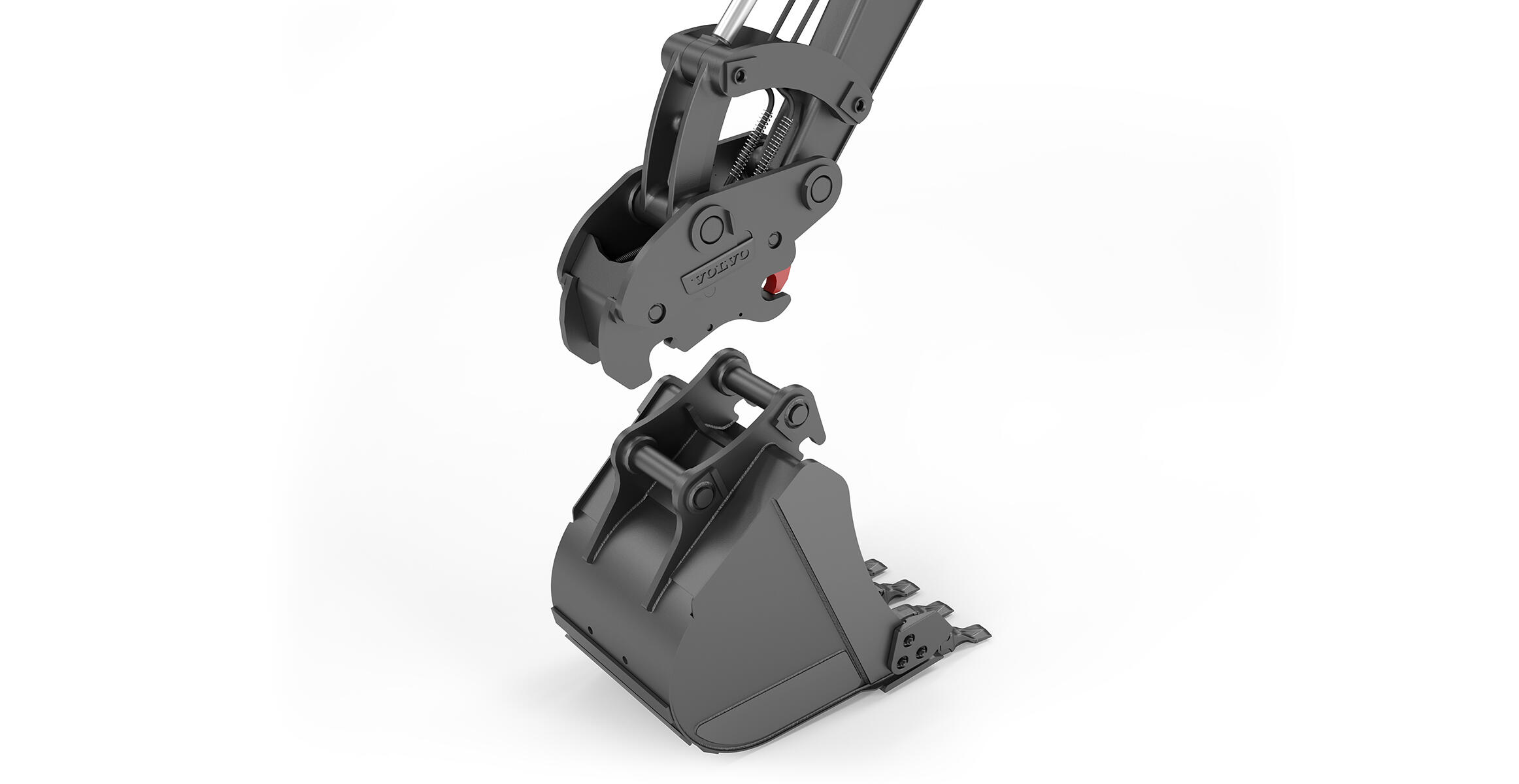

Quick coupler

Both the mechanical and the hydraulic quick couplers allow attachments to be changed quickly and efficiently. Making it easier on site, the quick coupler picks different Volvo buckets and is the perfect match for the breakers and thumb.

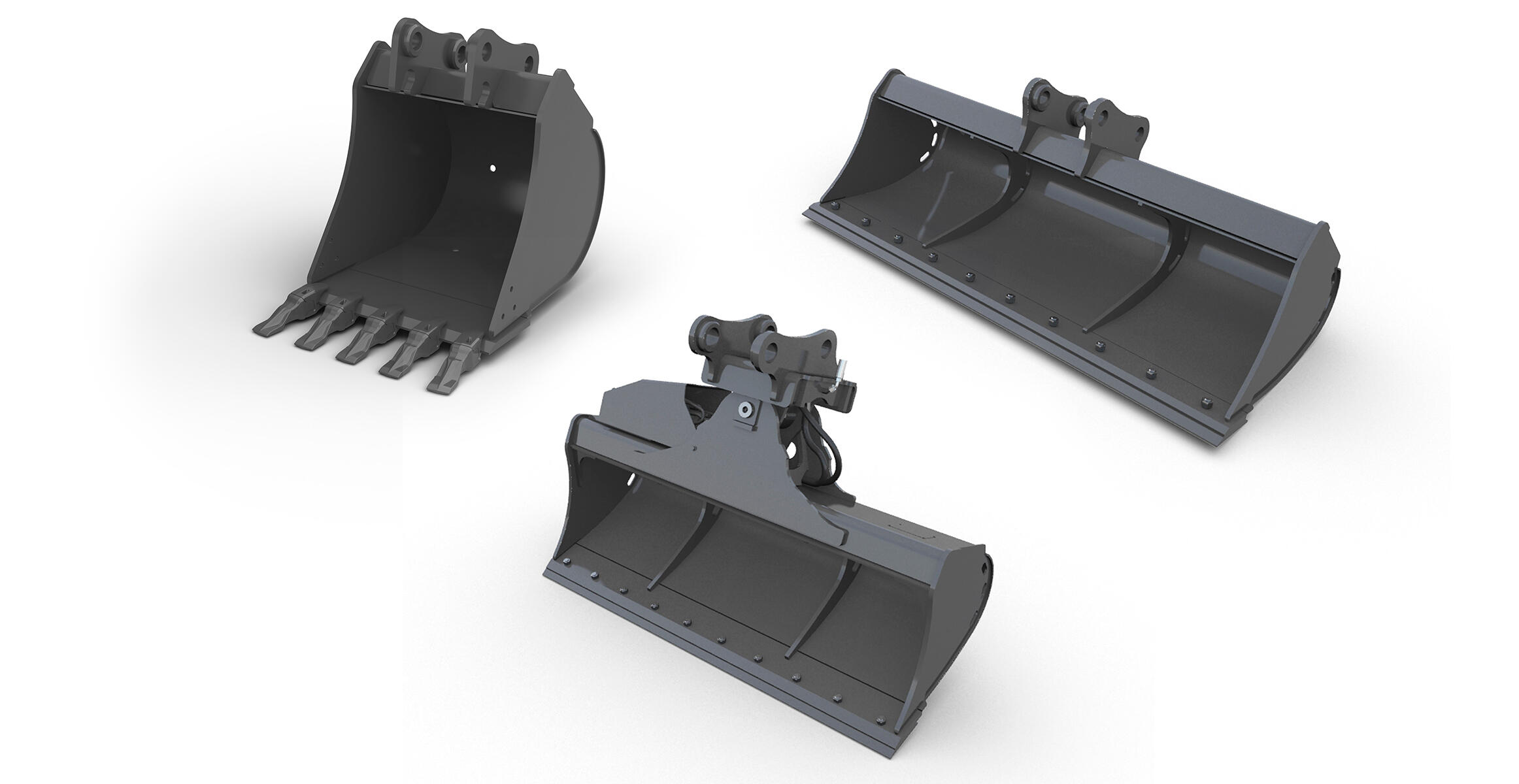

Buckets

A complete range of buckets from general purpose reinforced buckets to ditching buckets, allow the machine to work on many job sites for a wide range of applications. The durable buckets can work in loose gravel, crushed rock, dirt and soil.

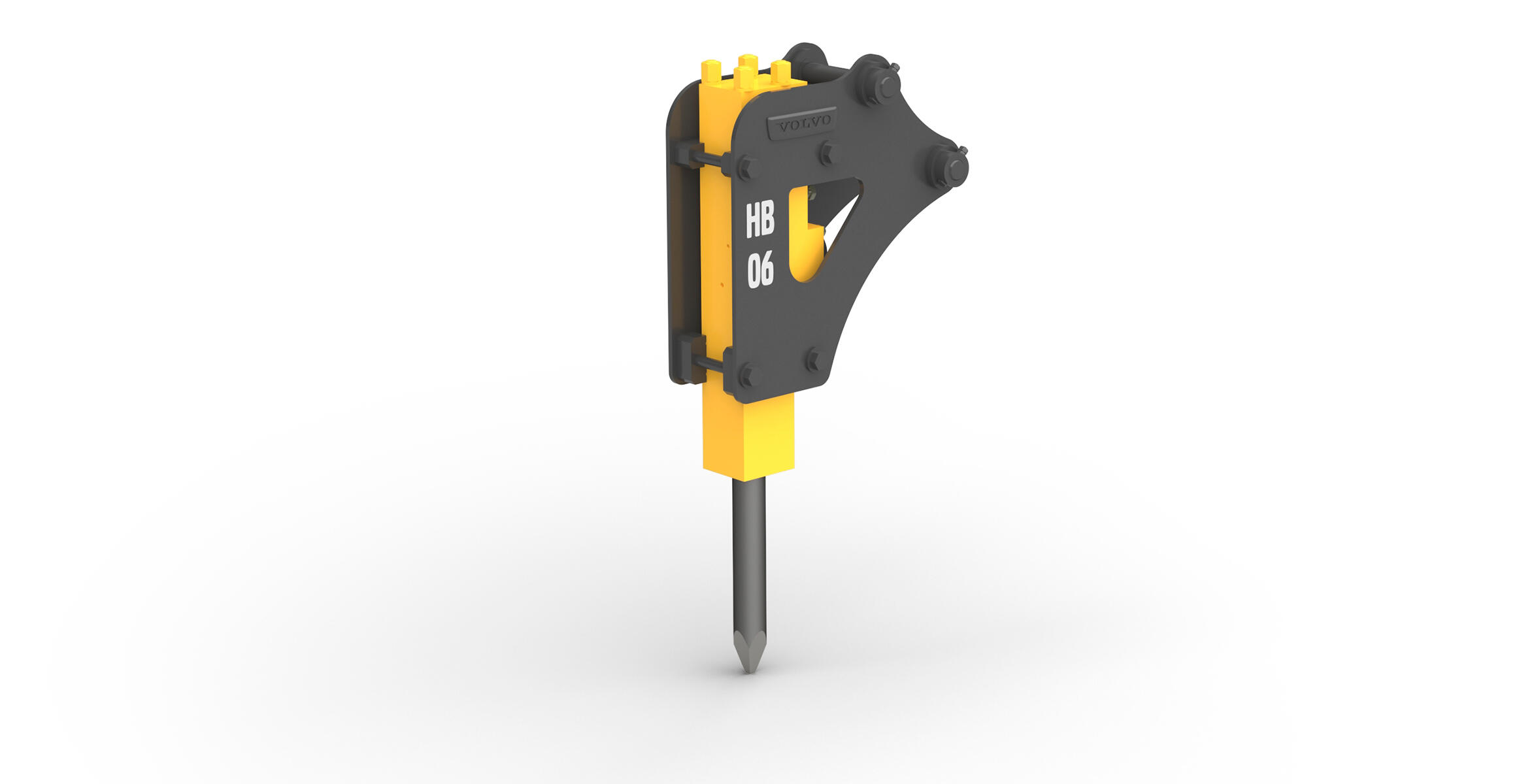

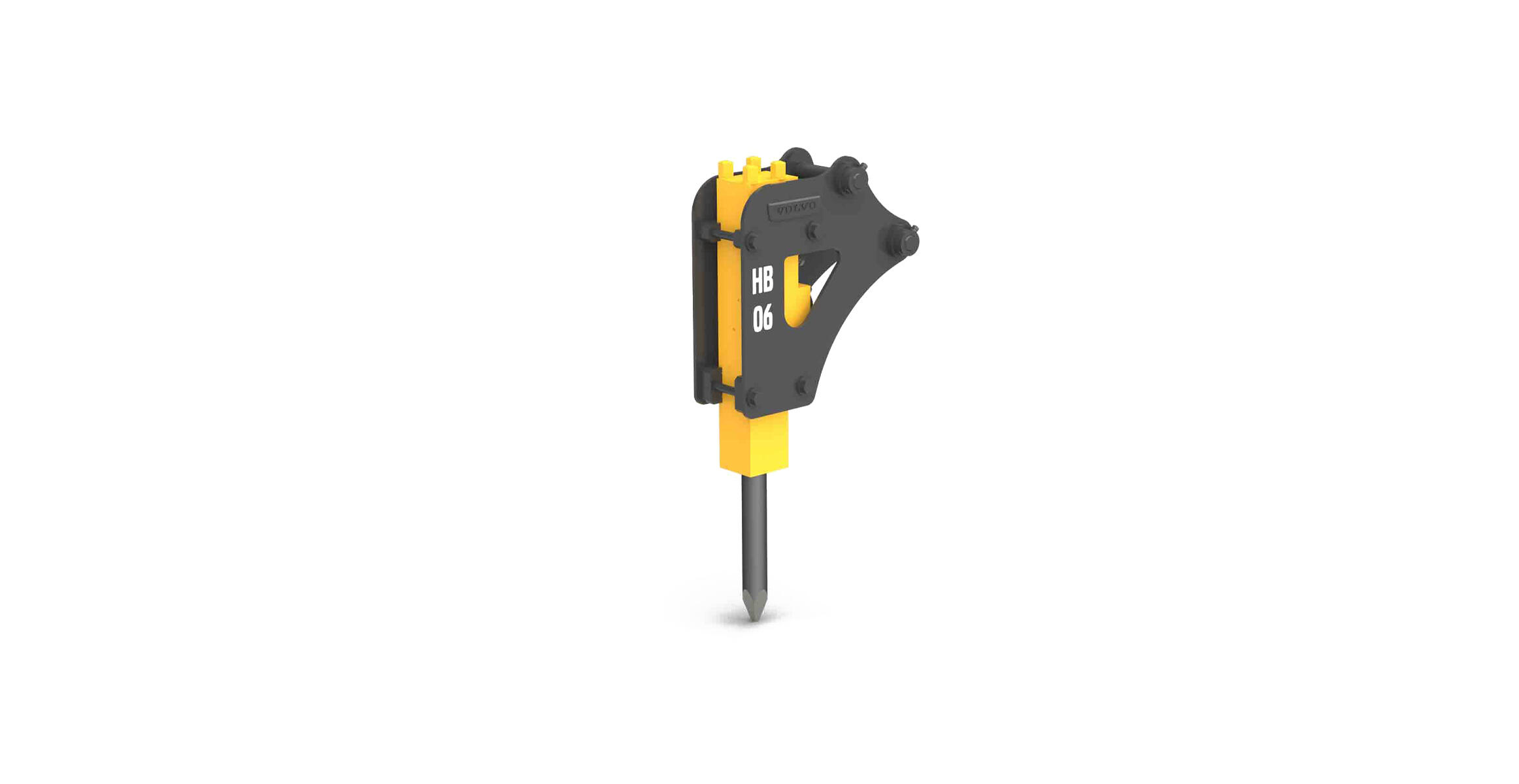

Breaker

Volvo’s durable hydraulic breakers have been designed for ultimate compatibility with Volvo excavators. The wide range of breaker tools (or bits) has been built to break all kinds of materials and combines excellent performance with low noise and vibration levels.

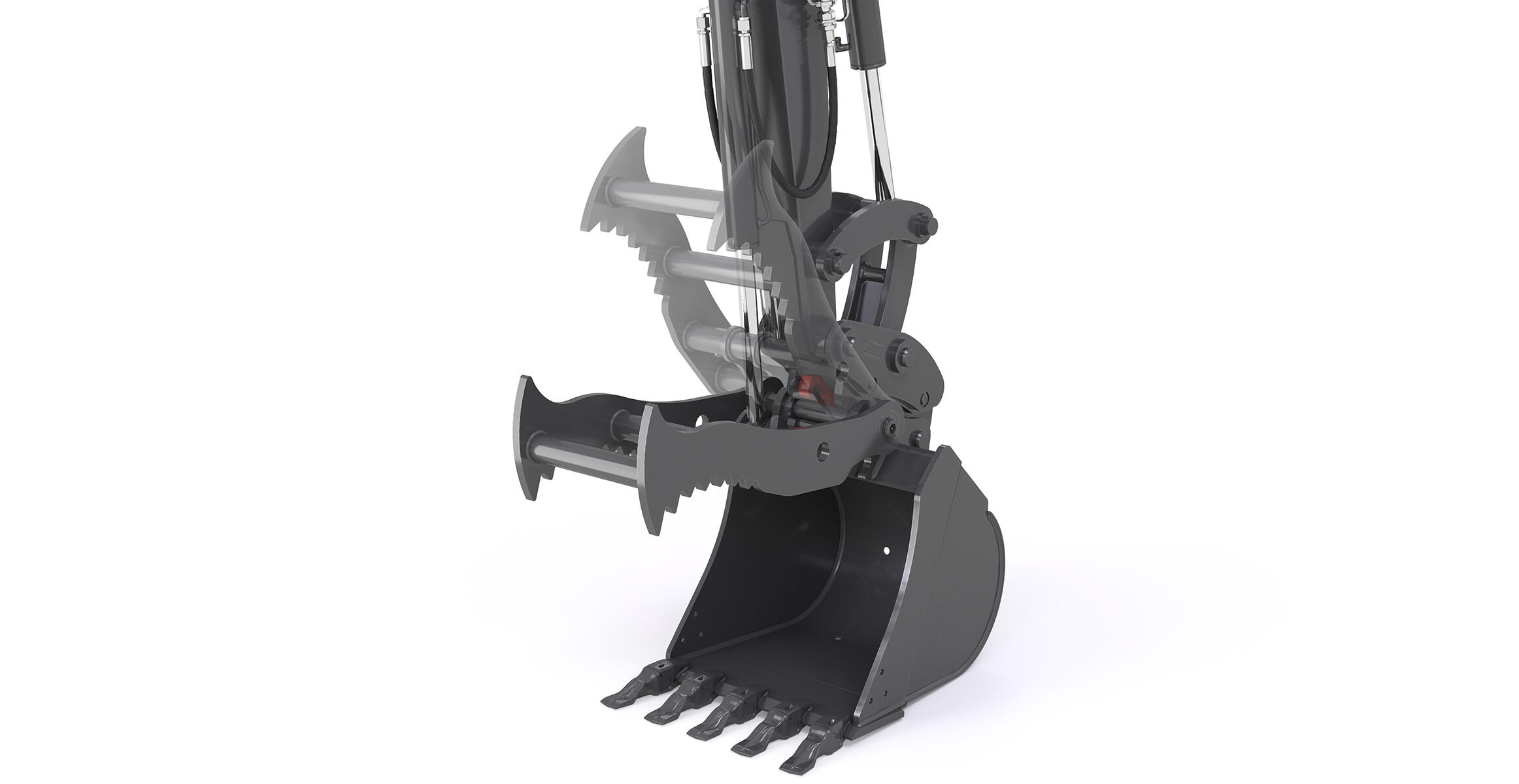

Thumb

Designed to work with both Volvo direct fit buckets and quick coupler, the Volvo thumb makes many tasks possible, including piling, placing, loading, lifting and carrying.
