Rigid HaulersVolvo R100E

  • 95,000 kg
  • 60.4
  • 783 kW

Get the most out of your investment with the fuel-efficient R100E rigid tipper, your partner for all mining and quarrying applications. Featuring a... Read more

Contact us Download the R100E brochure, with all the details and specifications. (PDF, 1.9MB)

Increase your productivity at each load

Get the most out of your investment with the fuel-efficient R100E rigid tipper, your partner for all mining and quarrying applications. Featuring a ROPS/FOPS-certified cab, proven safety systems and straightforward service access, the R100E rigid tipper from Volvo is safe from the inside out.


Here are the key specifications for this product model. Want more details? Download the brochure or contact us.

Payload capacity 95,000 kg
Body volume, SAE 2:1 heap 60.4
Net weight 69,550 kg
Gross weight 164,550 kg
Engine Cummins QST30 CAC (Tier 2 / Stage II)
Gross power 783 kW engine speed 2,100 rpm
Max SAE J1349 gross torque 4,631 Nm engine speed 1,300 rpm
Max speed 50 km/h

Images for illustration purposes only. Production machines may differ in appearance and features vary between markets and models.

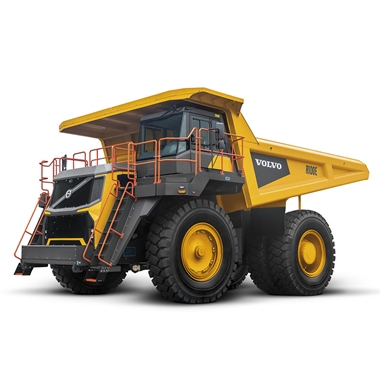

Volvo Rigid hauler R100E

E for efficiency

Move more with less fuel thanks to the latest technology built-into the R100E rigid tipper. The electronic integration between the engine and transmission achieve premium drivetrain performance, resulting in smooth gearshift quality and consistent machine momentum. Reduce your number one operating cost with Volvo.
Volvo Rigid hauler R100E

Fully loaded

Offering a true 95-tonne payload, the R100E rigid tipper is designed to do more. Thanks to its exhaust-heated V-shaped body, the 60m3 capacity tipper ensures optimum load retention and minimal material carry-back. For long lasting performance, the body is manufactured from high impact and high abrasion resistant steel. Enhance productivity with our 10-10-20 payload policy.
Volvo Rigid hauler R100E

Safe from the inside out

There’s no compromise when it comes to safety. That’s why all machine systems on the R100E rigid tipper, such as the easily accessible emergency shutdown switches, have been designed and verified to protect the safety of you and your crew. From the ROPS/FOPS-certified cab, experience superb visibility, enhanced by Volvo Smart View, an integrated feature that helps you keep an eye on the surrounding job site traffic.
Volvo Rigid hauler R100E

Built ready

The robust and reliable R100E rigid tipper delivers superior, long lasting performance. Engineered with uptime in mind, the heavy-duty tipper is simple and uncomplicated in its design, and purpose-built to achieve optimum productivity shift after shift, day in and day out.
Volvo Rigid hauler R100E

Smooth operation

Enjoy superior ride quality and comfort in the robust R100E rigid tipper, equipped with variable hydraulic wishbone-type suspension and viscous-mounted cab for minimal ground impact and vibrations. The responsive, low-effort steering system and geometry, combined with the suspension, optimizes maneuverability by minimizing lean on tight corners. With the R100E rigid tipper, heavy-duty hauling has never felt so easy.
