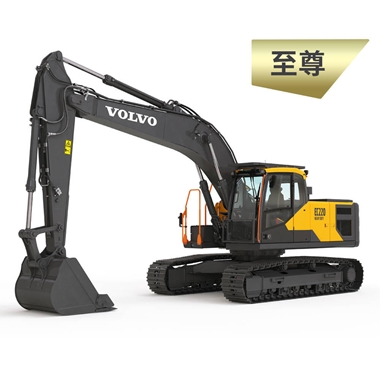

Medium Crawler ExcavatorsEC220 Heavy Duty

  • 22,500 kg
  • 123 kW
  • 1.3

Featuring high swing speed and powerful Volvo engine, you can count on the EC220 Heavy Duty to get the job done. Keep uptime to a maximum thanks to... Read more

Contact us Download the EC220 Heavy Duty brochure, with all the details and specifications. (PDF, 545.8KB)

Built for hard work

Featuring high swing speed and powerful Volvo engine, you can count on the EC220 Heavy Duty to get the job done. Keep uptime to a maximum thanks to long service intervals, robust design and easy maintenance, while operators can work in comfort and safety in the industry-renowned Volvo cab. The already impressive lifting and digging forces are increased further with power boost, resulting in faster cycle times and up to 8% higher productivity and up to 7% increase in fuel efficiency – even in the toughest conditions.

volvo excavator ec220hd china

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.

Operating weight 22,500 kg
Gross power 123 kW engine speed 1,800 rpm
Bucket capacity 1.3
Lifting capacity, along undercarriage 10,140 kg reach / height 4.5 / 1.5 m
Max. digging reach 9,930 mm
Max. digging depth 6,730 mm
Breakout force, SAE J1179 (Normal) 130 kN
Breakout force, SAE J1179 (Boost) 136 kN
Tear out force, SAE J1179 (Normal) 102 kN
Tear out force, SAE J1179 (Boost) 108 kN
Overall width 2,990 mm
Tail swing radius 2,850 mm

Based on machine configuration: STD crawler, Boom 5.7m; Arm 2.9m; Shoe 600mm; CWT 4 200kg

Images for illustration purposes only. Production machines may differ in appearance and features vary between markets and models.

volvo excavator ec220hd china

Efficient productivity

Introducing the EC220 Heavy Duty. This new crawler excavator delivers up to 8% more productivity and up to a 7% improvement in fuel efficiency, without any compromise on power and performance.
volvo excavator ec220hd china

The best cab around

The EC220 Heavy Duty is designed to keep operators safe, comfortable and working their best. Features including Volvo cab, outstanding visibility and a host of safety enhancements provide the industry-renowned levels of comfort and safety you would expect from Volvo.
volvo excavator ec220hd china

Built for productivity

The EC220 Heavy Duty has been built with productivity in mind. With features including powerful Volvo engine, durable components and robust design, this hard working and hard-wearing machine will help you achieve maximum results – shift after shift, day after day.
volvo excavator ec220hd china

Easy servicing

Long service intervals, easy routine maintenance and a range of Volvo Services help maximize uptime and keep your machines on site and working their best.

Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.
