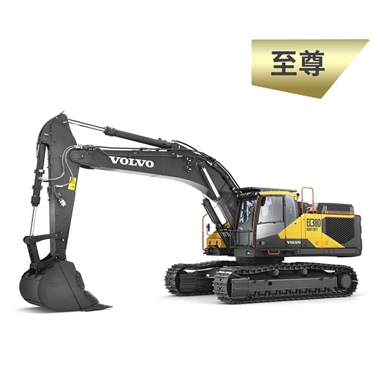

Large Crawler Excavators EC380 Heavy Duty

China 3 Emission Standards
41,625 kg Operating weight
245 kW Gross power
2 m³ Bucket capacity

Download the EC380 Heavy Duty brochure, with all the details and specifications. (PDF, 701.5KB)

Take on the toughest applications

Boost your productivity by up to 8% in the EC380 Heavy Duty. 12% more engine power, large capacity bucket and heavy counterweight contribute to faster swing speeds, shorter cycle times and more tonnes per hour. Move more, for less, thanks to a host of advanced technology including the new generation electro-hydraulics (positive), resulting in a 5% fuel efficiency improvement. Durable, hard-working and boasting all the operator comfort you would expect from Volvo, this machine is ready to take on the toughest applications.

Technical specifications for EC380 Heavy Duty

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.

Operating weight	41,625 kg
Gross power	245 kW
...at engine speed	1,800 rpm
Bucket capacity	2 m³
Lifting capacity, along undercarriage	15,940 kg
...at reach / height	6 / 1.5 m
Max. digging reach	10,695 mm
Max. digging depth	6,990 mm
Breakout force, SAE J1179 (Normal)	198 kN
Breakout force, SAE J1179 (Boost)	215 kN
Tear out force, SAE J1179 (Normal)	195 kN
Tear out force, SAE J1179 (Boost)	212.9 kN
Overall width	3,340 mm
Tail swing radius	3,600 mm

Based on machine configuration: Long crawler, Boom 6.45m; Arm 2.6m; Shoe 600mm; CWT 8200kg.

Images for illustration purposes only. Production machines may differ in appearance and features vary between markets and models.

Download the EC380 Heavy Duty brochure, with all the details and specifications. (PDF, 701.5KB)

Features & Benefits

Boost the profitability of your operation with the EC380 Heavy Duty. The new generation crawler excavator delivers the perfect combination of more productivity and more fuel efficiency, meaning you can do more – for less.

Move more for less

8% more productivity

Get more work done thanks to an increase of up to 8% in productivity compared to the previous generation. Engine power has been increased by 12%, resulting in faster swing speeds for short cycle times. Make every load count and move more tons per hour with the large capacity bucket and heavy counterweight.

25% more fuel efficiency

A range of features combine in the new generation EC380 Heavy Duty to deliver up to a 5% improvement in fuel efficiency. The intelligent new generation electro-hydraulic system (positive) provides on-demand flow and reduces internal losses in the hydraulic circuit, while ECO mode further contributes to outstanding fuel efficiency. Fuel efficiency can then be increased up to 20% more with the Hybrid machine variant.

Hybrid

Featuring unique hydraulic hybrid Volvo technology, the EC380 Heavy Duty Hybrid excavator utilizes the boom down motion to charge the accumulator, with the stored energy used to drive the assist motor which powers the engine system. The result is up to 20% increase in fuel efficiency while delivering all the power and performance you would expect from a conventional EC380 Heavy Duty.

Dig Assist

Unlock the full potential of your machine’s productivity with Dig Assist, powered by the 10” Volvo Co-Pilot display. Gain access to a set of smart apps, including 2D, In-Field Design, 3D software packages and On-Board Weighing, designed to optimize the digging process.

The EC380 Heavy Duty is designed to help operators perform at their best. Boasting the most comfortable cab in the industry, along with a range of features for an enhanced operator experience, the excavator delivers all the comfort and safety you would expect from a Volvo machine.

Industry leading cab

Step inside the best cab on the market. With low noise, low vibration and best-in-class visibility, operators will experience the ultimate in comfort and productivity inside the industry-renowned Volvo Care Cab. A convenient cab layout, air-suspended seat and ergonomic controls add to the unrivalled operator environment, all contributing towards an enhanced operator performance.

Safety inside and out

The EC380 Heavy Duty is designed with safety in mind. The ROPS-certified cab features a rear-view camera and optional side-view camera for an improved all-around view. Extra LED lights on the front of the cab and optional rotating beacon help to enhance visibility for those inside and outside the machine.

See it all

Operators can work in complete confidence thanks to optional Volvo Smart View. The system uses front, rear and side cameras to provide a real-time, overhead view of the machine during operation on the colour monitor. The result is safer machine rotation while working, especially in confined spaces.

The best mode for the job

Unique Volvo technology incorporates work modes within the throttle control, for optimum performance. When the operator selects a work mode – I (Idle), F (Fine), G (General), H (Heavy) and P (Power) – the rpm is already set for maximum efficiency.

Configured for convenience

Bluetooth connectivity and USB port will help operators feel right at home in the EC380 Heavy Duty. For added convenience operators can choose a function to be easily controlled via a shortcut switch on the joystick.

Shift after shift – day after day, you can count on the EC380 Heavy Duty to work harder, for longer. The high performance Volvo engine, durable design and range of Volvo attachments all contribute towards outstanding levels of machine productivity.

Proven power

With impressively high torque at low rpm, the EC380 Heavy Duty builds on generations of proven Volvo engine technology to deliver superior reliability and performance. The intelligent automatic engine idle and auto engine shut down help to eliminate unnecessary fuel consumption, lower operating costs and reduce environmental impact.

Protected performance

Standard features including oil bath cleaner, oil filters, fuel filters and water separators help to keep the engine in top condition, securing long component life and performance which lasts.

Stay cool

A reversible hydraulically-driven, electronically controlled cooling fan regulates the temperature of vital components, securing long-lasting performance. The fan will automatically activate only when required – minimizing noise and fuel consumption. The reverse functionality blows air in the opposite direction, to enable self-cleaning.

The perfect package

Take on any job with a range of factory-delivered attachments, such as Volvo buckets and breakers. Volvo attachments are perfectly matched to your machine, helping to get the job done with optimum efficiency, productivity and performance.

Every part counts

Maintain productivity and machine uptime with our range of readily available, tested and approved parts – all backed by Volvo warranty. Only by using Genuine Volvo Parts, can you protect your investment, extend machine life and guarantee long-lasting performance.

Ready to take on the toughest of tasks, the EC380 Heavy Duty is built for hard work. With a robust and reinforced designed, ease of serviceability and the support of a range of Uptime Services, you can count on the highest levels of reliability and uptime.

Take on the tough stuff

Achieve optimum results even in the toughest working conditions thanks to the robust design of the EC380 Heavy Duty. Standard features including heavy-duty belly guard, undercover protection, full track guard, Side Impact Protection and FOPS mean the excavator is set-up to succeed in the harshest of environments and applications.

Maintain uptime

Quick and easy servicing helps keep uptime to a maximum, including grouped filters and greasing points. The single module cooler is also accessed from the ground level simply by opening the side door; with the radiator, charged air cooler and hydraulic oil cooler situated side-by-side. Operators and technicians can navigate the machine safely and easily thanks to anti-slip plates, handrails and guardrails.

Uninterrupted productivity

Reduce operating costs and boost uptime with long service intervals. 5,000 hour hydraulic oil and 2,500 hour hydraulic oil filter change intervals minimize disruption to your operation, helping you achieve uninterrupted productivity for longer.

Machine monitoring made easy

Maximize machine uptime and reduce repair costs with the new Pulse telematics system. Choose to keep track of your machine yourself or let us take care of it with Volvo Active Care. Our Volvo Uptime Center will provide 24/7 machine monitoring, supplying weekly reports and notifying you should preventive maintenance action be required.

Uptime Services

Your Volvo dealer is here to help you with a range of Volvo Services – including Repair and Maintenance agreements, Oil Analysis and Extended Coverage – to keep your machines working and performing at their best.

Keep your Volvo a Volvo!

Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.
